Product Overview

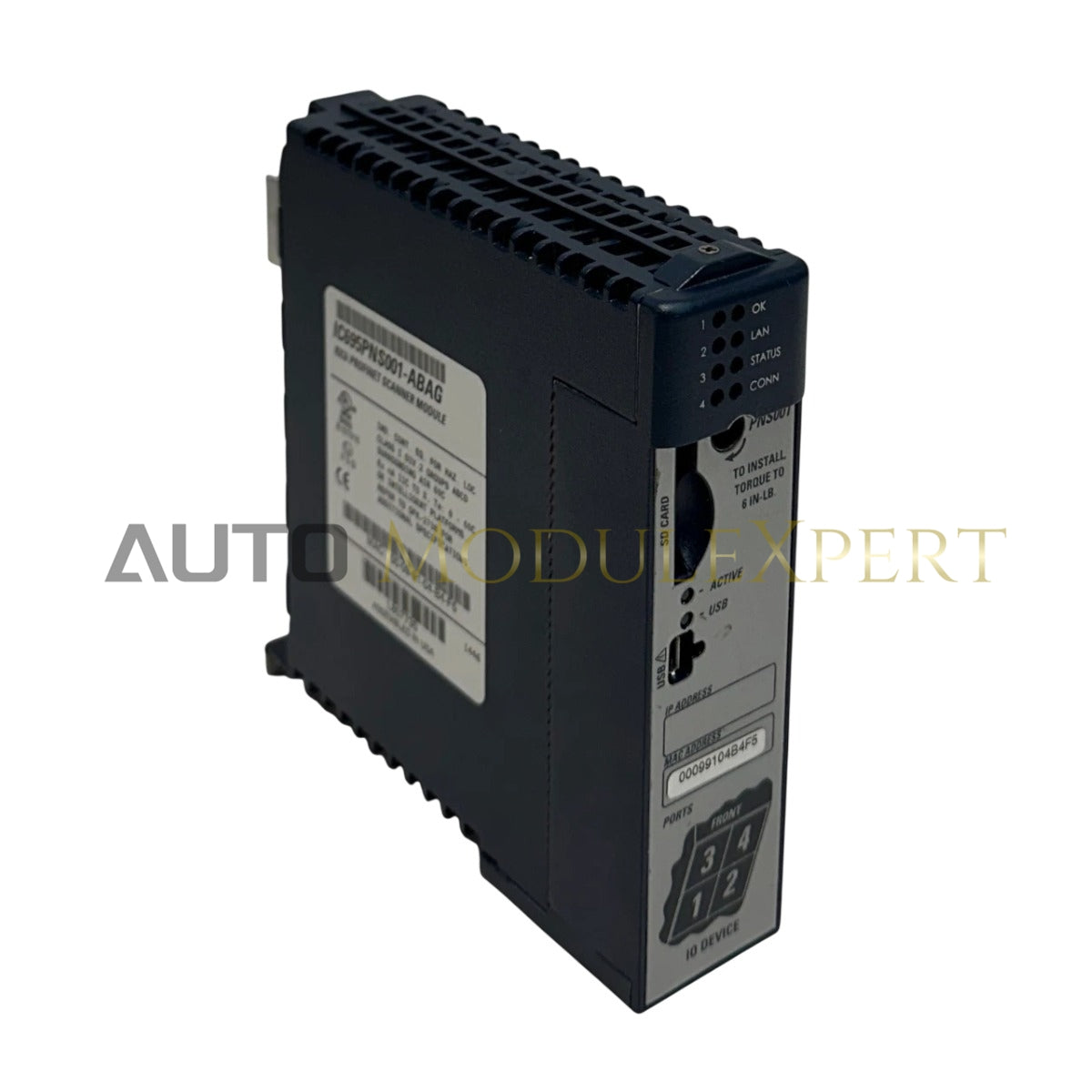

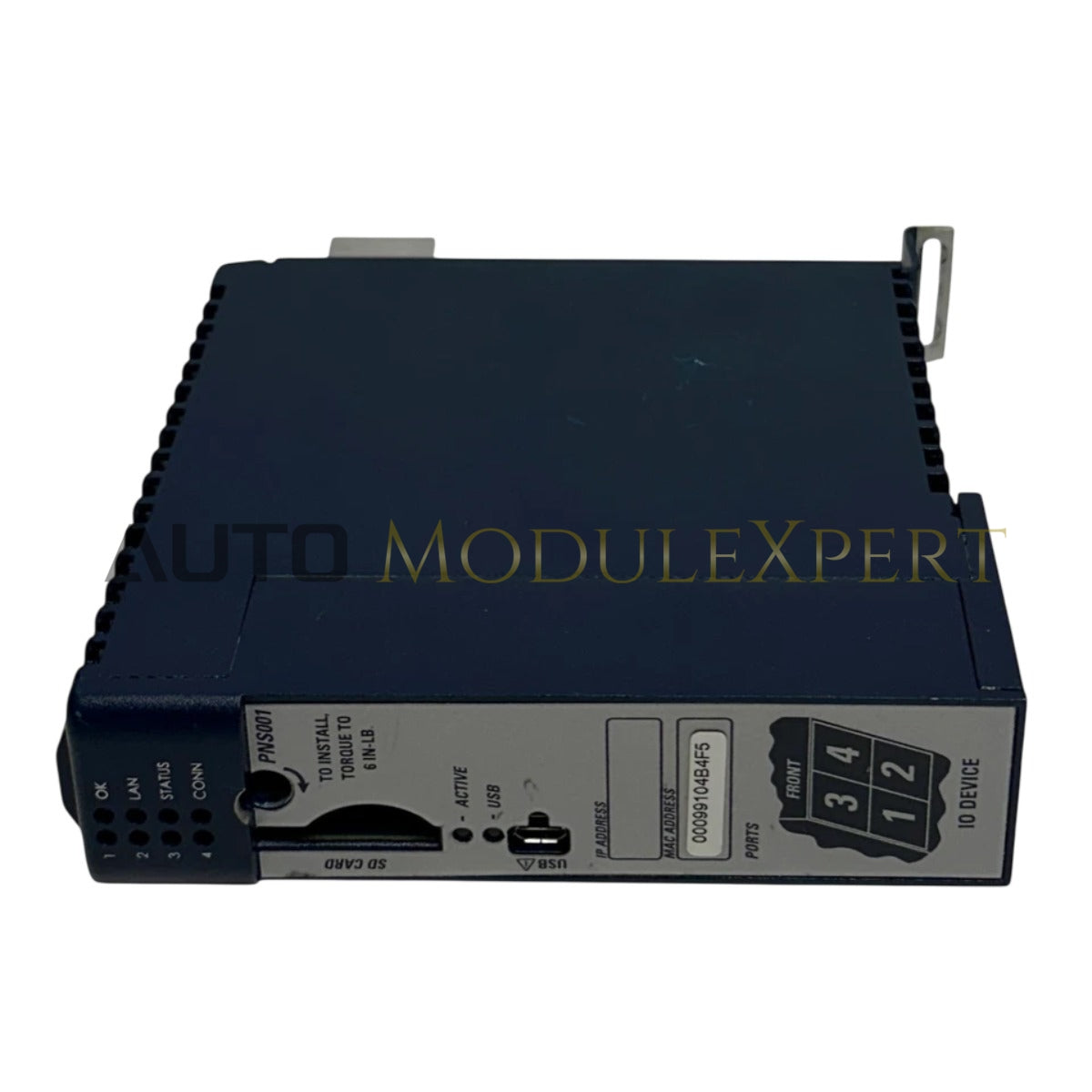

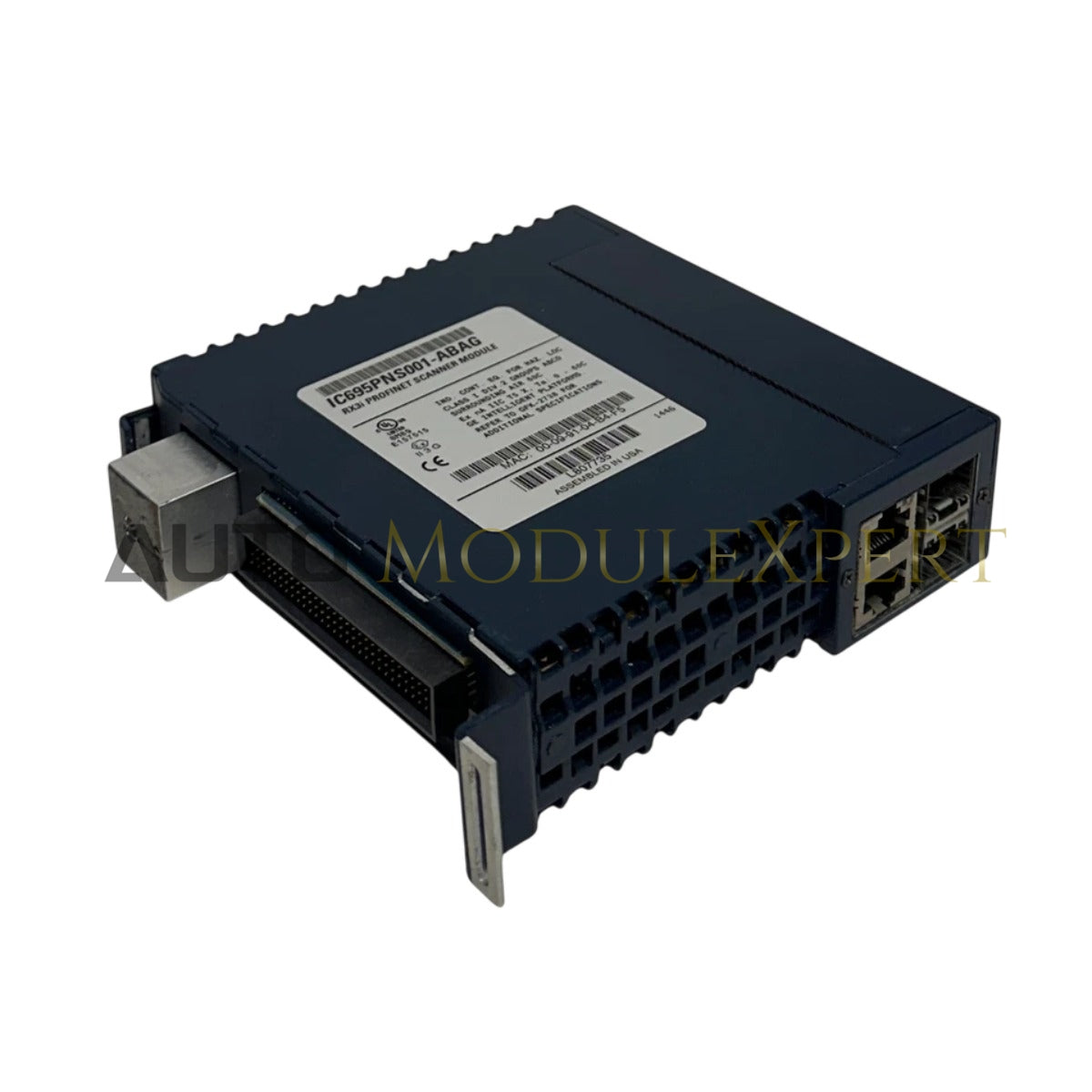

The IC695PNS001-BBBD PROFINET Scanner module links the Emerson RX3i PacSystems controller to remote I/O devices over a high-speed PROFINET network. This module acts as a distributed I/O controller, managing real-time data exchange between the central PLC and peripheral devices. It supports high-density automation architectures by offloading communication tasks from the main CPU, ensuring rapid response times across large-scale industrial networks. This unit arrives in 100% Brand New original condition, ensuring maximum field reliability.

Technical Specifications

Engineering Advantages

Network Redundancy
The dual-port design supports Media Redundancy Protocol (MRP). This allows the system to maintain communication even if a physical cable break occurs in the network ring.

Rapid Integration
Engineers utilize GE Machine Edition software to configure the scanner. The module supports GSDML files, which simplifies the integration of third-party PROFINET devices into the RX3i environment.

Enhanced Diagnostics
The hardware features dedicated LED indicators for “Module OK,” “Port Link,” and “System Fault.” These indicators allow maintenance teams to identify network bottlenecks or hardware failures instantly without connecting a laptop.

Extreme Environment Stability
The internal circuitry utilizes industrial-grade components that resist electromagnetic interference (EMI). This ensures stable data packets even when the module resides near high-voltage motor drives or frequency converters.

FAQs

Does the IC695PNS001-BBBD support firmware upgrades?
Yes, users update the firmware via the specialized WinLoader utility or through the Ethernet port. This ensures the module supports the latest PROFINET standards and security patches.

Can this module replace older IC695PNS001 versions?
The “BBBD” suffix indicates a specific hardware/firmware revision. This version maintains backward compatibility with standard IC695PNS001 applications while offering improved stability and component longevity.

What cable type provides the best performance for this scanner?
Use shielded twisted pair (STP) Category 5e or Category 6 cables. These cables prevent data corruption in high-noise factory floors and satisfy PROFINET installation guidelines.

Does this module require an external power supply?
The module draws its operating power directly from the RX3i Universal Backplane (IC695CHSxxx). Ensure the power supply module provides sufficient amperage for the 3.3V and 5V rails.
