Product Overview

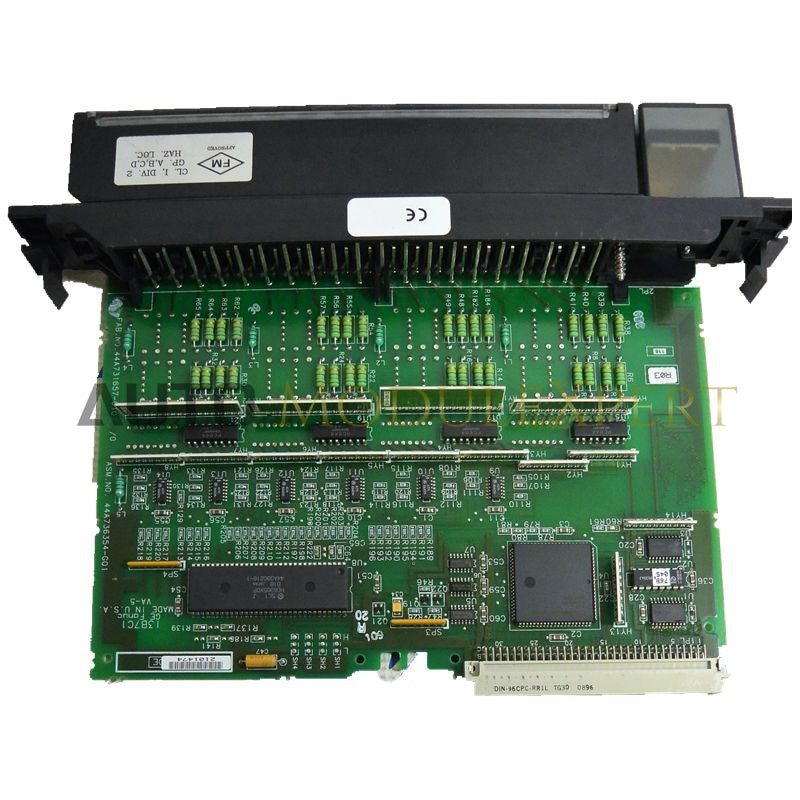

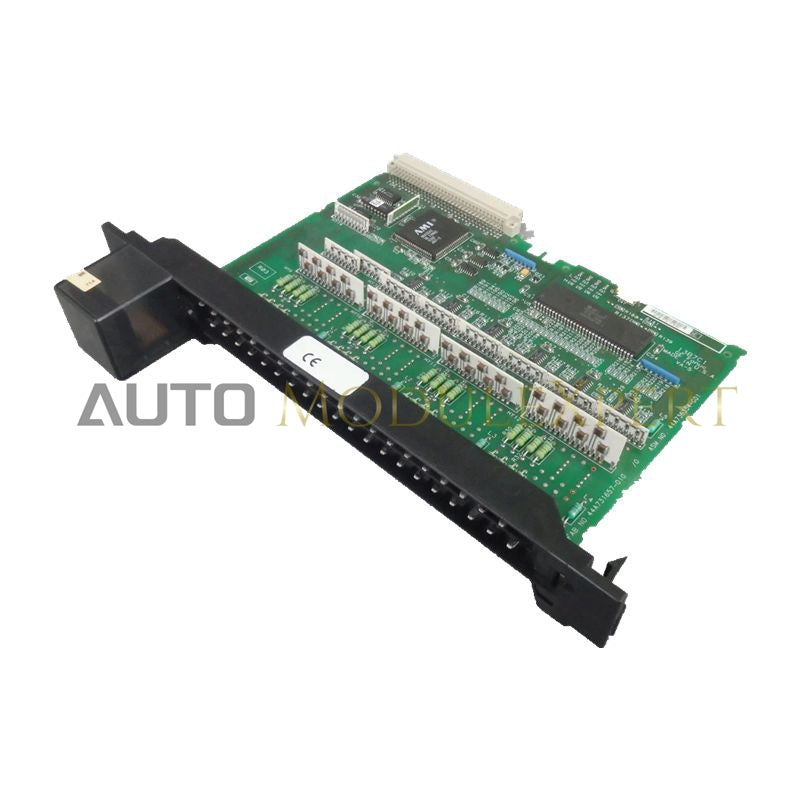

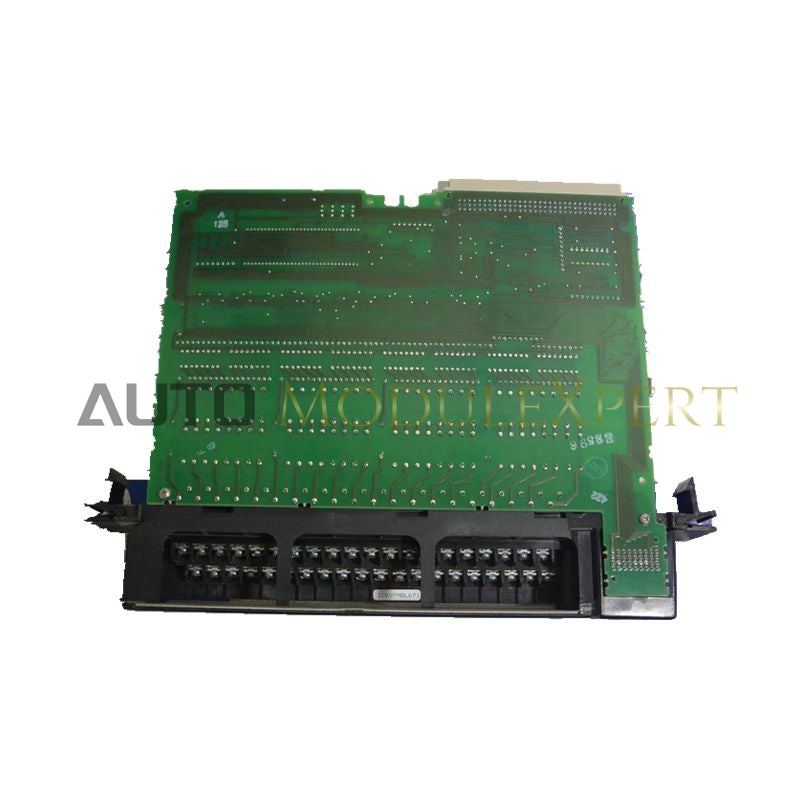

The IC697MDL671 is a specialized 16-point 24VDC discrete input module with interrupt capability for the GE Fanuc Series 90-70 PLC platform. Unlike standard input modules, it triggers immediate CPU interrupt routines upon detecting signal changes, enabling instant system response without waiting for the normal scan cycle. This makes it ideal for time-critical industrial applications. Supplied as 100% brand new and original equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Discrete Input with Interrupt Capability |
| Input Voltage | 24V DC (nominal) |
| Input Voltage Range | 18–30V DC |
| Input Points | 16 (single group) |
| Input Current | 7 mA per point @ 24V DC |
| Interrupt Trigger | Rising / Falling edge (software selectable) |
| Isolation | 1500V (field to logic) |
| Power Consumption | 0.5A @ 5V (backplane) |
| Backplane Compatibility | Series 90-70 VME |
Engineering Advantages
-
Instant Interrupt Response: Bypasses PLC scan cycle for real-time event handling.
-
High-Speed Signal Capture: Detects fast pulses and transient inputs accurately.
-
Flexible Trigger Configuration: Supports rising, falling, or dual-edge interrupts.
-
Clear Diagnostics: LED indicators provide real-time input status visibility.
-
Robust Isolation: Optical isolation protects against electrical noise and surges.
FAQs
Can it be used as a standard input module?
Yes, it functions as both a standard input module and an interrupt-driven input device.
Is this unit brand new?
Yes, supplied as 100% brand new in original GE Fanuc packaging.
How are interrupts configured?
Configured via Logicmaster 90 or Proficy Machine Edition by assigning interrupt routines to input points.
What type of terminal connection is used?
It uses a standard 40-terminal connector for Series 90-70 modules.
