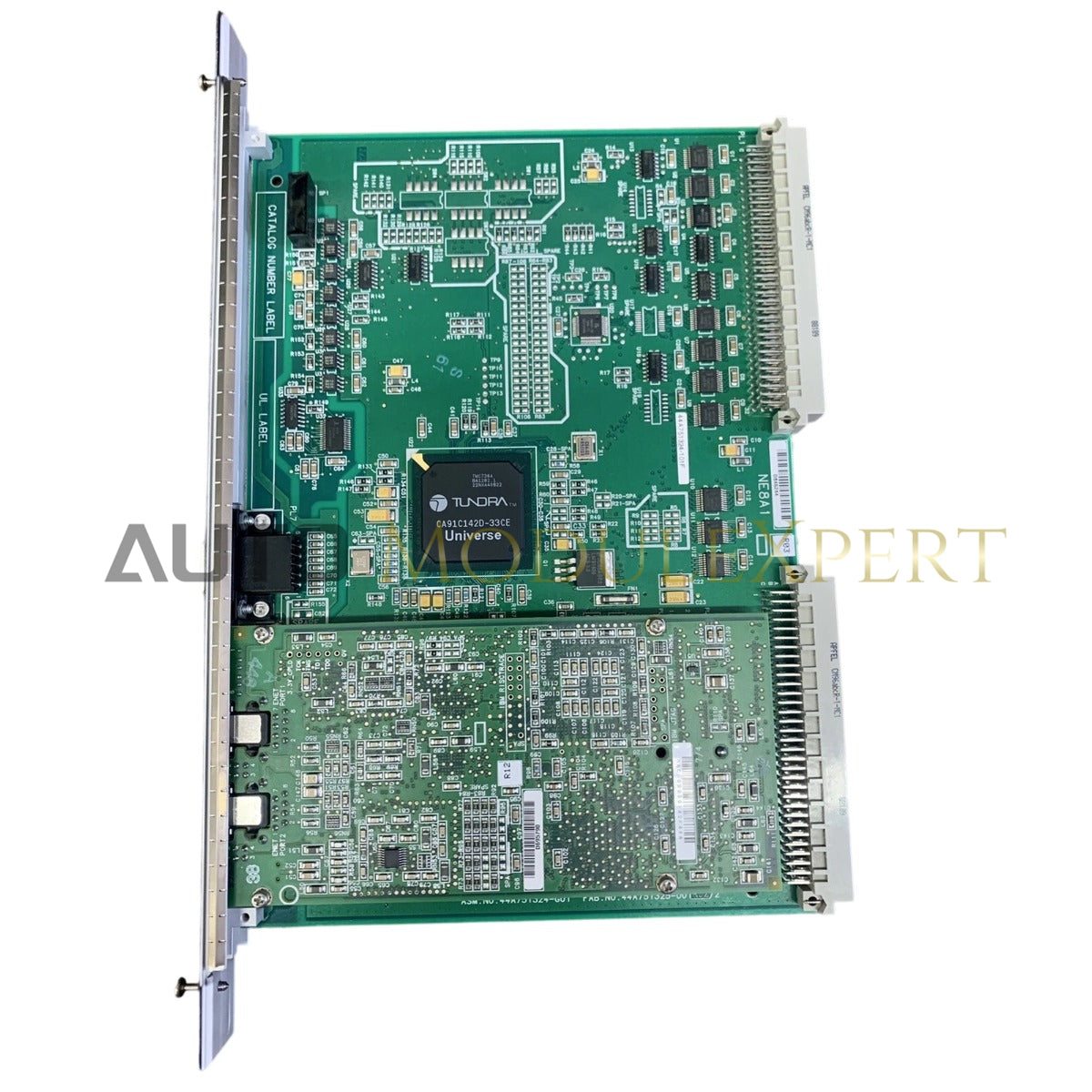

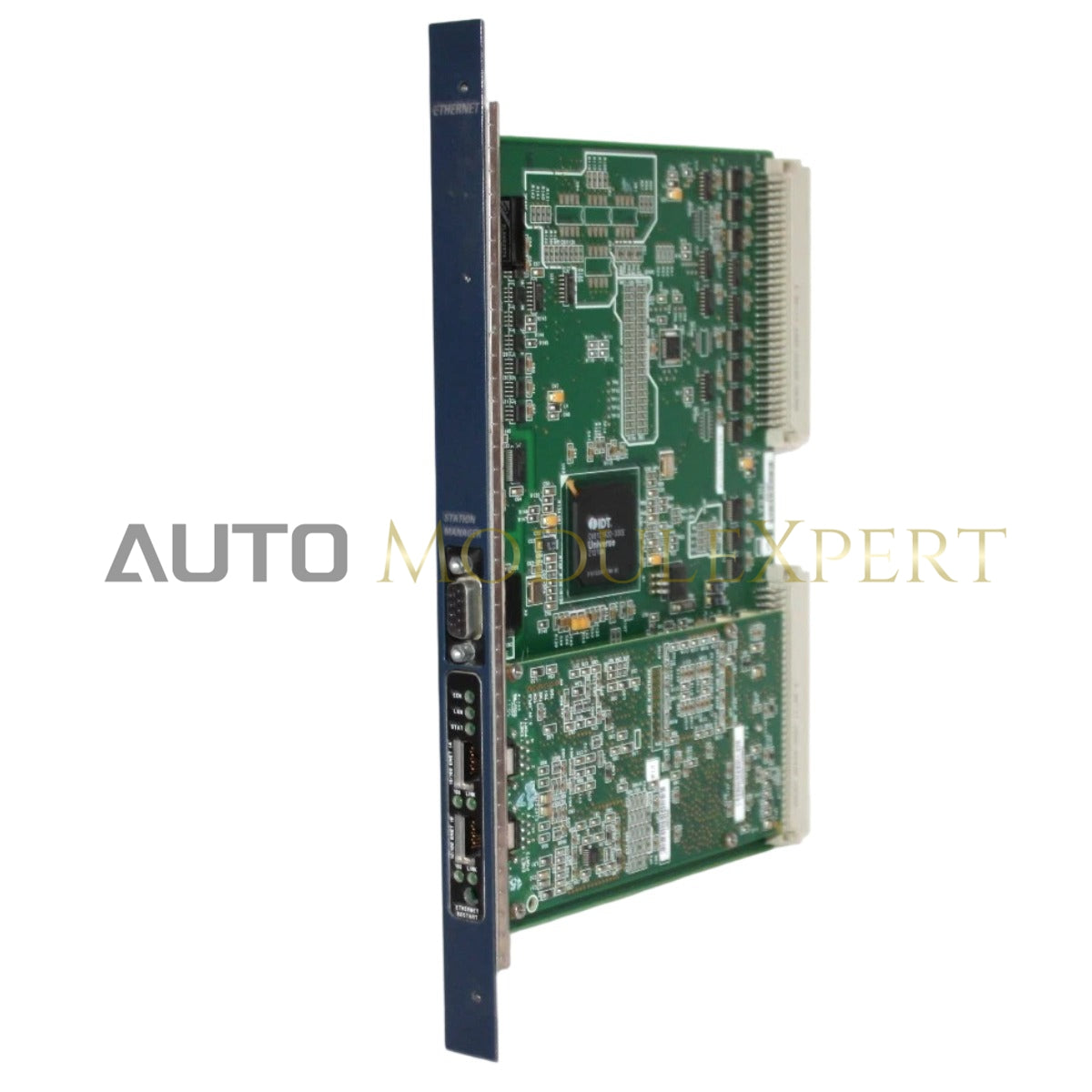

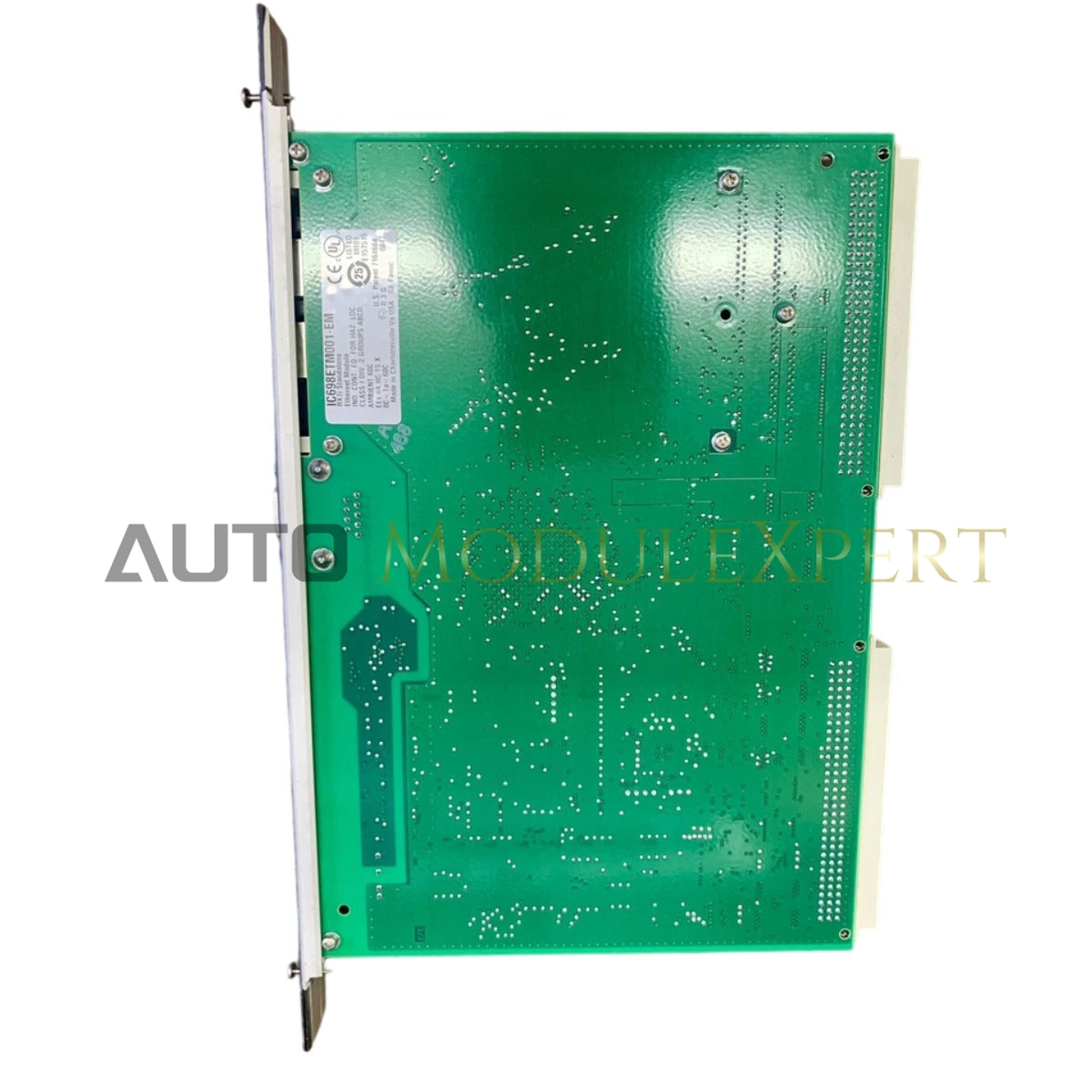

Product Overview
The IC698ETM001E delivers high-performance, deterministic Ethernet connectivity for the PACSystems RX7i control platform. Featuring a dedicated 200 MHz processor, this module independently manages network communications, ensuring real-time data exchange without impacting CPU performance.
It enables seamless integration between industrial control systems and enterprise networks, supporting remote diagnostics and high-speed data acquisition. We supply this unit as 100% Brand New in original factory packaging, ensuring long-term reliability and stable network operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Processor Speed | 200 MHz |
| Ethernet Ports | Dual 10/100Base-T (auto-sensing) |
| Connector Type | RJ-45, 8-pin female, shielded |
| Current Consumption | 1.5 A @ +5 VDC |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimensions | 125 mm × 125 mm × 28 mm |
| Weight | 0.42 kg |
| Supported Protocols | TCP/IP, UDP/IP, SRTP, Modbus TCP, EGD |
Engineering Advantages
Deterministic Communication
The onboard processor manages Ethernet traffic and protocol handling, ensuring predictable data delivery and eliminating network-induced delays.
Dual-Port Flexibility
Two integrated RJ-45 ports support redundant network designs or daisy-chain topologies, reducing reliance on external switches.
Extended Environmental Performance
Wide operating temperature range (-20°C to 70°C) ensures reliable operation in harsh industrial and outdoor environments.
Advanced Remote Diagnostics
Supports web-based monitoring and diagnostics, allowing remote access to system status, logs, and configuration—reducing downtime and maintenance costs.
FAQs
Does this module support Ethernet Global Data (EGD)?
Yes. It fully supports EGD for high-speed peer-to-peer communication between compatible controllers.
Can it be used in a Series 90-70 rack?
No. It is specifically designed for PACSystems RX7i backplanes and is not compatible with Series 90-70 racks.
Is this the latest revision?
Yes. This is the “E” revision, supplied as 100% Brand New, factory-sealed hardware.
How is the IP address configured?
Initial IP setup can be performed using Proficy Machine Edition via the CPU serial port or by using a BOOTP/DHCP server on the network.
