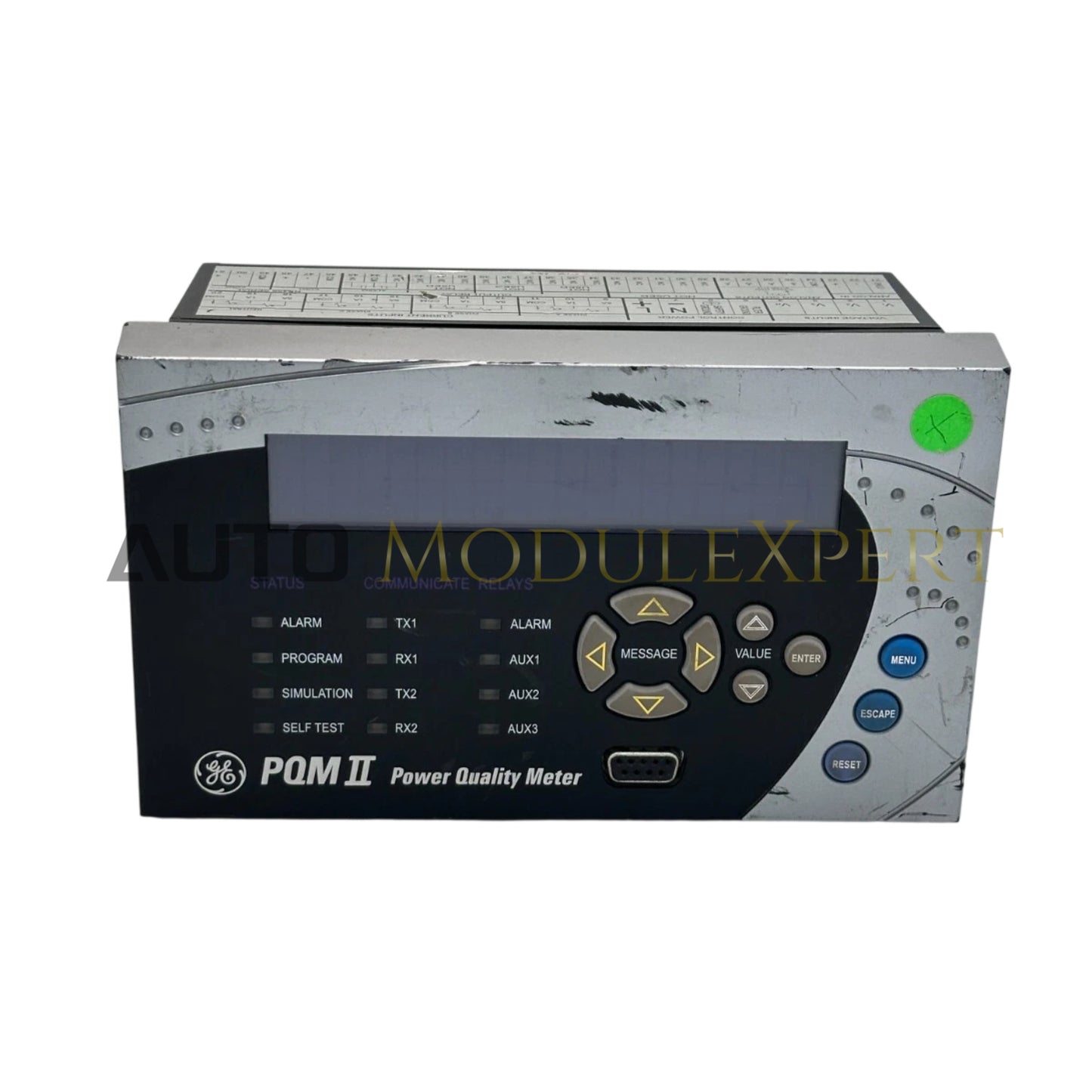

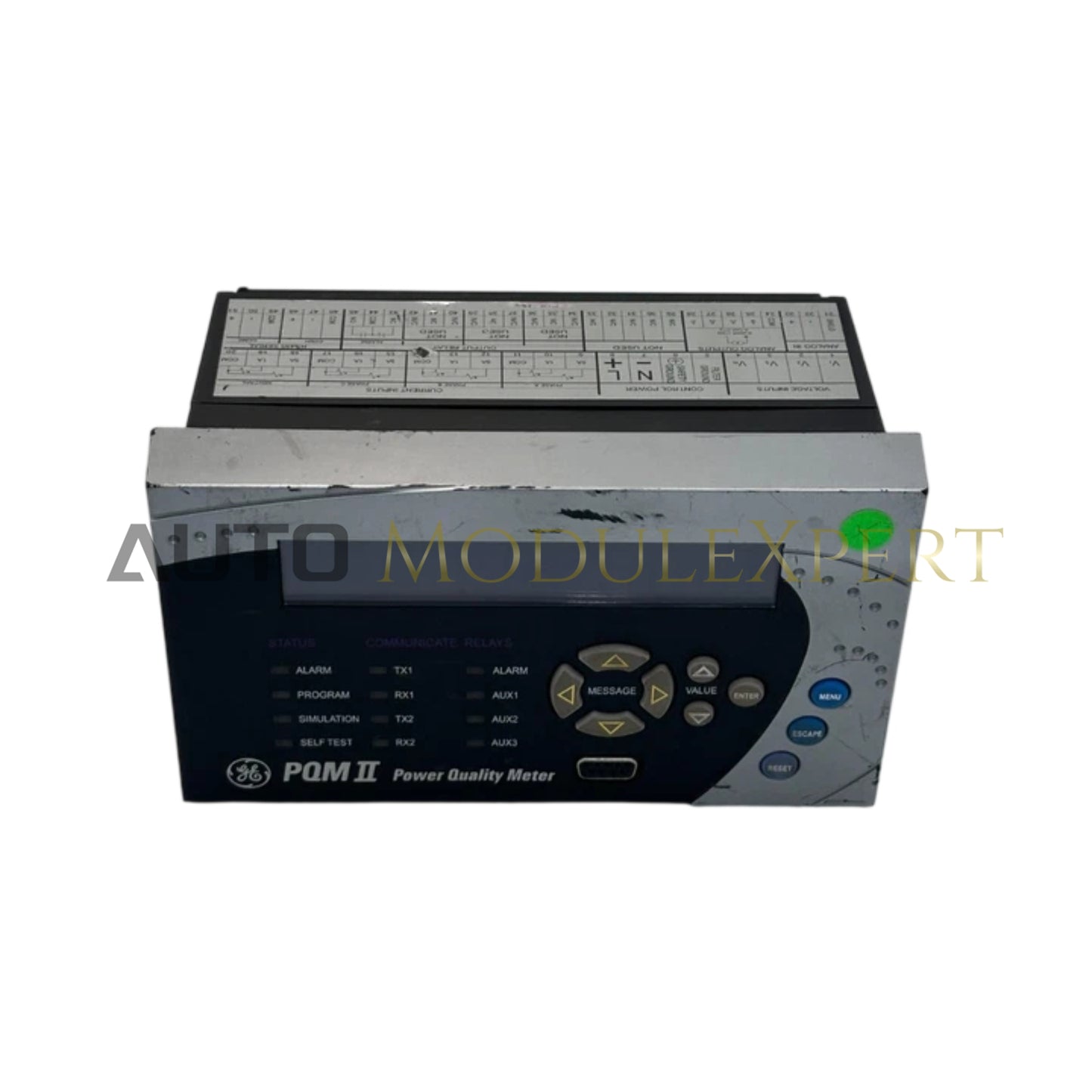

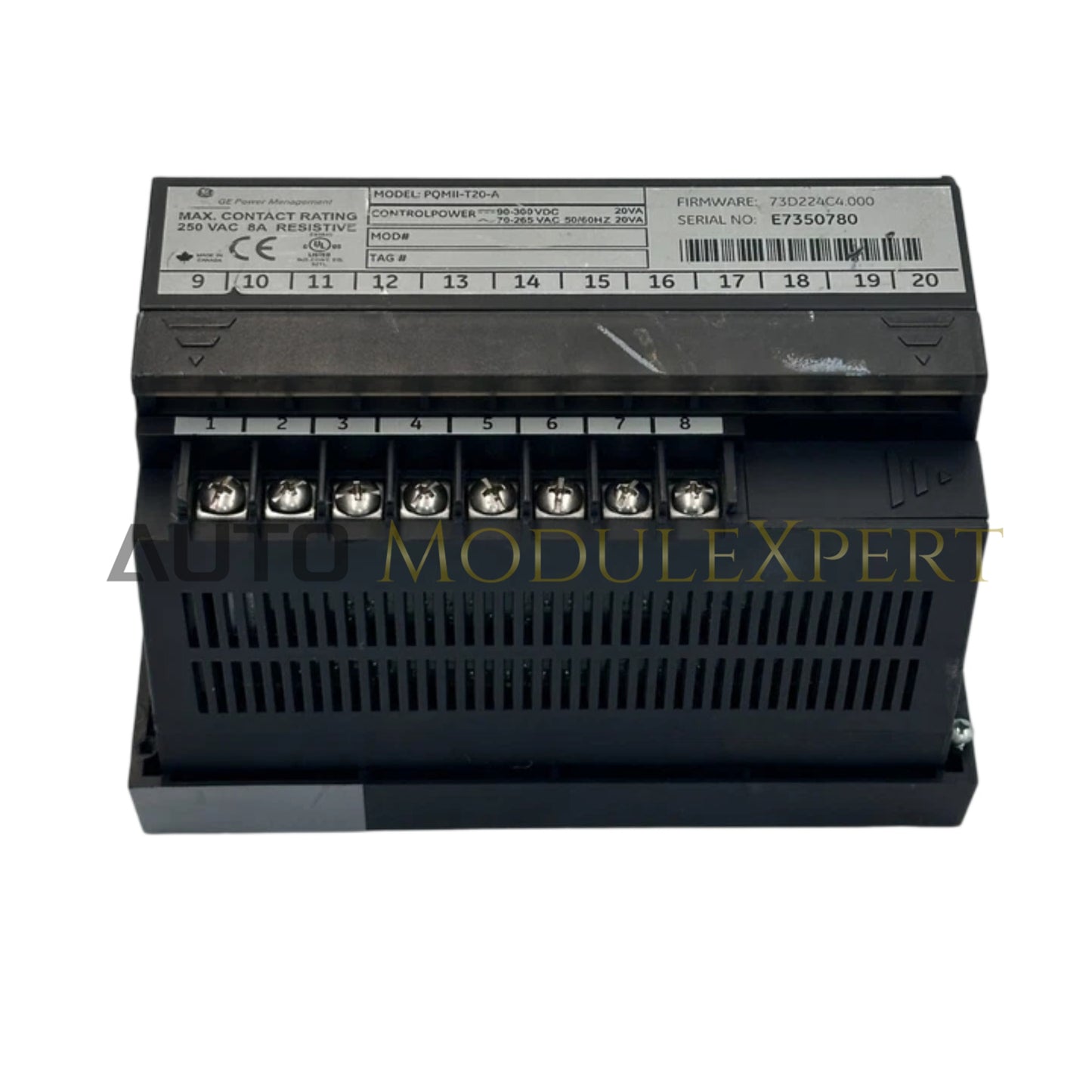

The GE Fanuc PQMII-T20-A, also cataloged as the PQMII-T20-A Power Quality Meter, operates as a dedicated hardware component for continuous three-phase electrical parameter logging and transient event capture within industrial power distribution networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PQMII-T20-A |
| Brand | GE Fanuc |
| Origin | USA |
| Weight | 3.3kg |
| Dimensions | Standard Panel Mount Meter Enclosure |
| Operating Temp | -20 deg C to +60 deg C |
| Power Consumption | 20 VA |
| Voltage Range | 20-60 VDC / 20-48 VAC, 50/60 Hz |
| Analog Input | One 4-20 mA input |
| Output Relays | Four relay outputs |
| Analog Outputs | Four isolated analog outputs |
Profinet / EtherNet/IP deterministic networks
The meter integrates robust backplane communication velocity pathways and deterministic network interfacing designed for real-time electrical telemetry. Signal routing relies on high-speed internal bus transceivers engineered to minimize propagation delay across multi-drop serial architectures. Diagnostic telemetry monitors internal rail voltages, watchdog states, and communication frame error rates continuously to maintain data integrity.
Frequently Asked Questions
Q: What communication protocols and physical ports are supported for external data polling on this meter?
A: The unit supports Modbus protocol via an RS485 port located on the rear panel and an RS232 port on the front panel.
Q: To what harmonic order can the meter perform distortion analysis on three-phase electrical systems?
A: The device is engineered to execute harmonic analysis up to the 63rd order for precise power quality evaluation.
Field Installation Guidelines
- Mount the meter securely into a standard panel cutout, ensuring proper gasket compression to maintain front-panel environmental sealing.
- Verify that voltage and current transformer inputs are wired with correct polarity and torqued terminal connections to prevent measurement errors.
- Route communication cables and low-level analog wiring separately from high-voltage power lines to eliminate electromagnetic interference (EMI).
- Check that ambient panel temperatures remain within specified operating thresholds to prevent thermal degradation of internal circuitry.
