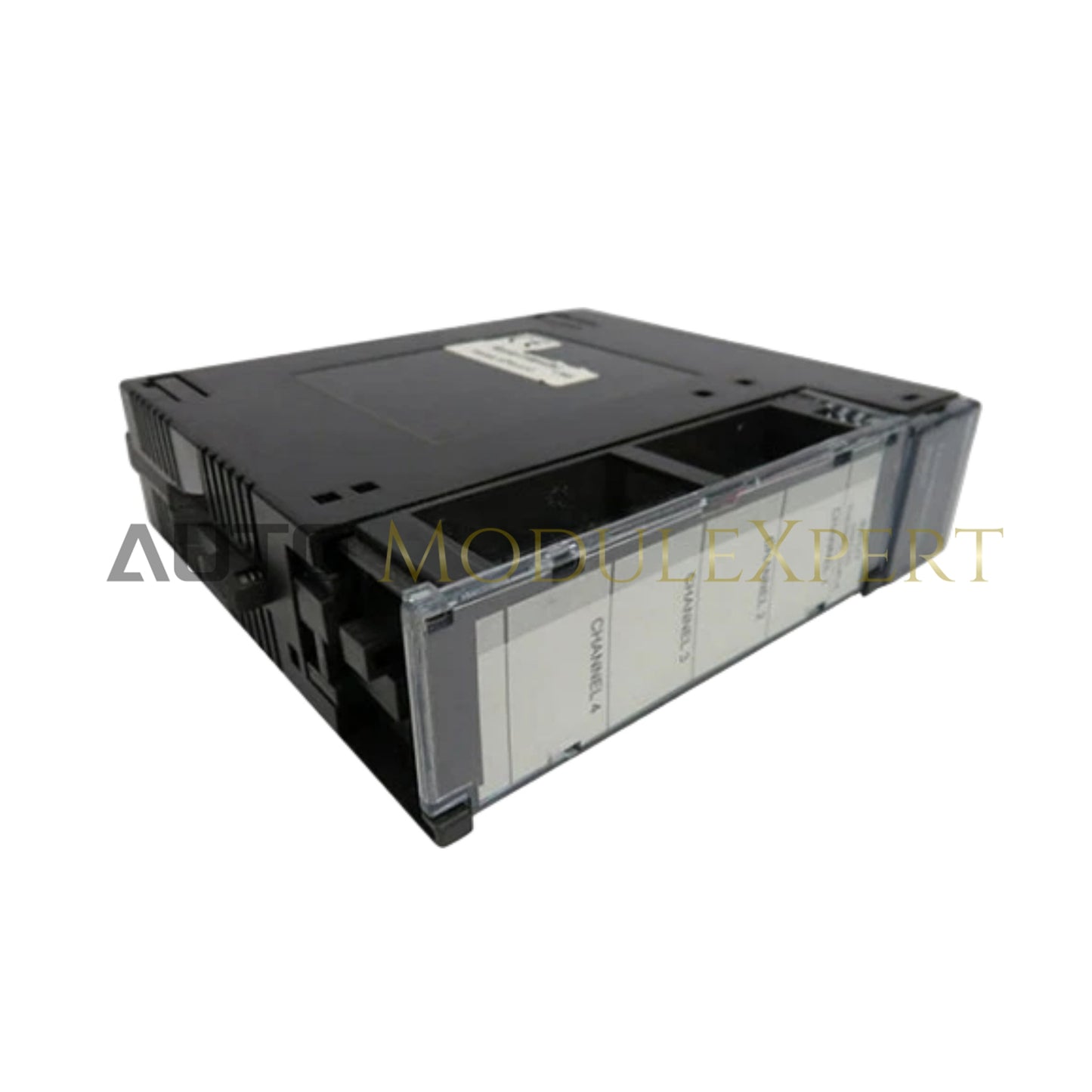

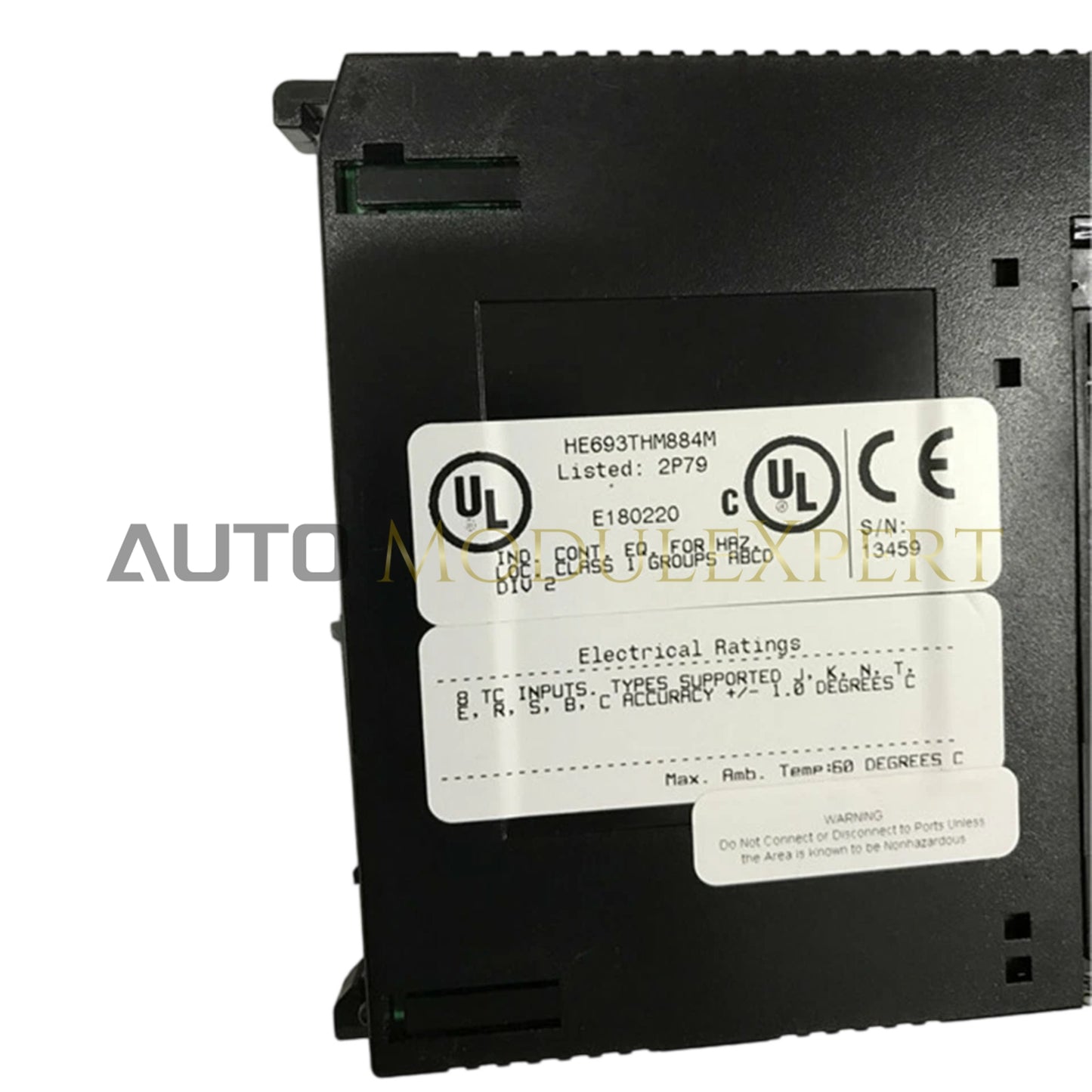

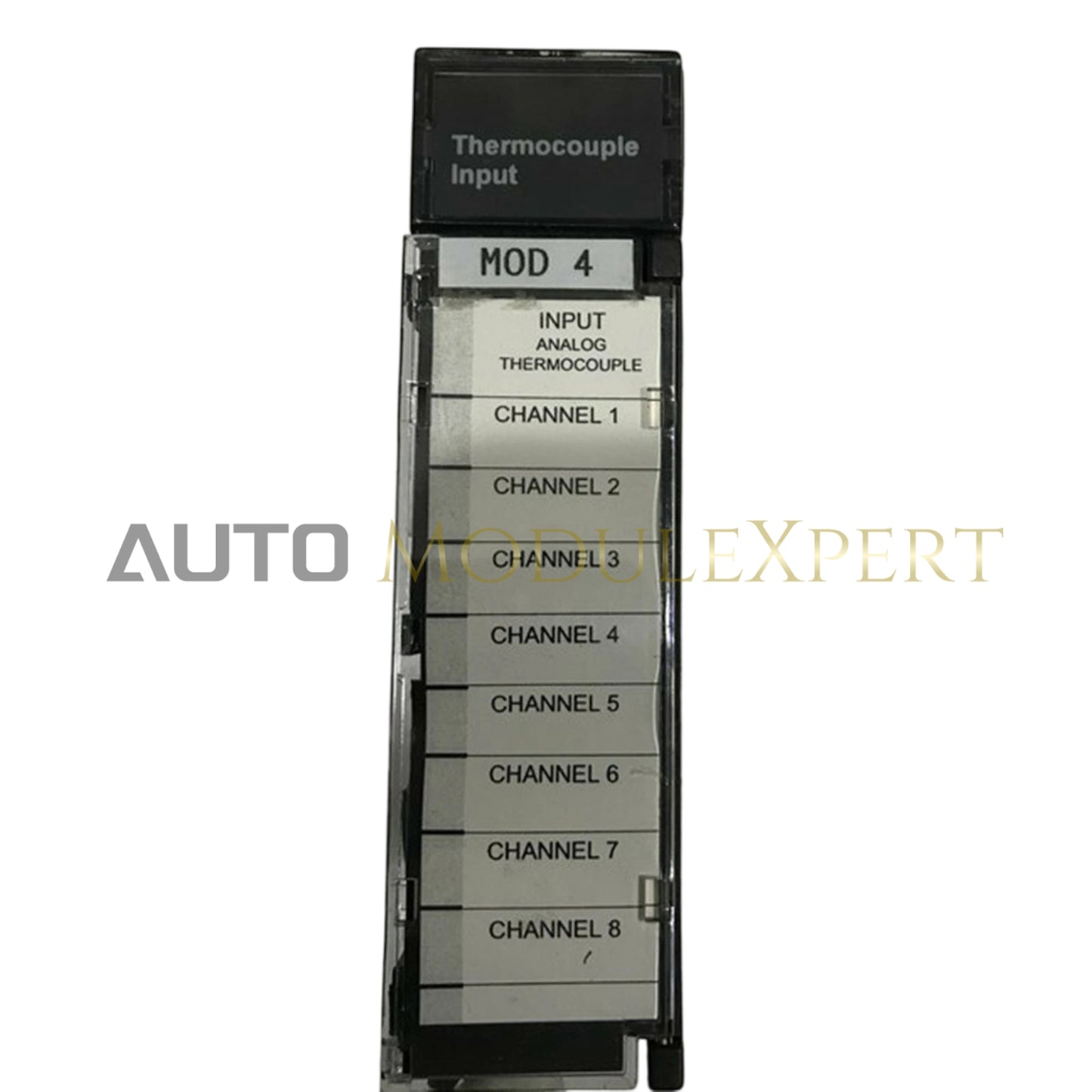

The GE HE693THM884P-60, also cataloged as the HE693THM884P-60 Thermocouple Input Module, operates as a dedicated hardware component for multi-type temperature signal acquisition within industrial automation controller platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | HE693THM884P-60 |
| Brand | GE |
| Origin | USA |
| Weight | 0.2kg |
| Dimensions | 100 mm x 80 mm x 20 mm |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | Not specified |
| Relative Humidity | 5% to 95%, non-condensing |
| Storage Temp | -40 deg C to +70 deg C |
Industrial Control Deterministic Network Connectivity
The HE693THM884P-60 is designed for integration into deterministic control systems where I/O density scaling is required for expanded temperature monitoring. The module firmware supports flash compatibility updates, allowing the system to maintain synchronization with updated backplane bus communication velocity requirements. High-speed signal processing ensures that thermal data is updated across the control network without introducing deterministic jitter, maintaining loop stability for connected industrial processes.
Frequently Asked Questions
Q: Is this module capable of hot-swapping during normal controller operation?
A: No. The HE693THM884P-60 does not support hot-swapping. The host controller must be in a powered-down state before the module is inserted or removed to avoid electrical shorting of the backplane bus pins.
Q: What is the recommended practice for shielding thermocouple inputs?
A: All thermocouple signal wiring should utilize high-quality shielded twisted-pair cables. The shield must be connected to a dedicated chassis ground point at the enclosure entry to minimize common-mode electromagnetic interference.
Field Installation Guidelines
- Mount the module securely onto the designated backplane slot, ensuring the edge connector is fully seated to prevent intermittent contact.
- Verify that the input terminal block is torqued according to standard specifications to prevent high-resistance connections in the thermocouple loop.
- Maintain a minimum distance of 100 mm from high-voltage power switching components to prevent crosstalk on sensitive analog input circuits.
- Ensure the ambient air temperature within the cabinet remains within the 0 deg C to 60 deg C operating range by utilizing appropriate forced-air cooling if required.
