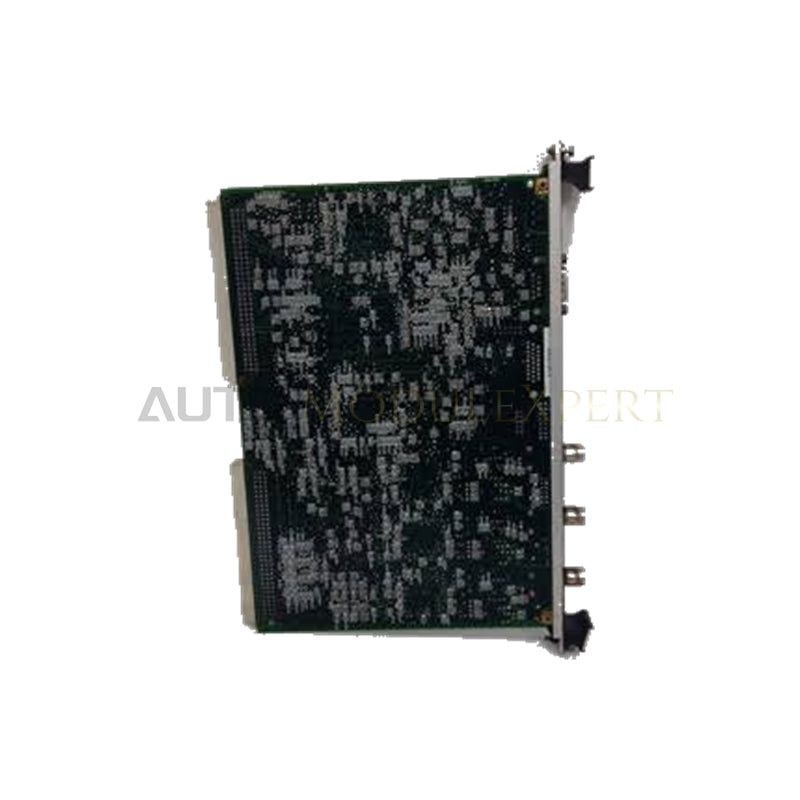

GE IS215VCMIH2BE/IS200VCMIH2BEE Mark VIe Series Bus Controller Module

The GE IS215VCMIH2BE, also cataloged as the IS200VCMIH2BEE Bus Controller Module, operates as a dedicated hardware component for high-speed signal processing and I/O communication within GE Mark VIe control system architectures.

Hardware Specifications

Backplane Bus Communication and Network Determinism

The module manages deterministic field bus communications across the Mark VIe control backplane, maintaining real-time data frame synchronization between the primary controller and remote I/O packs. Internal diagnostic routines execute continuous memory parity checks and bus traffic monitoring to isolate channel-level faults without disrupting system execution. Integrated firmware Flash components enable direct system synchronization, matching board hardware configurations to controller firmware levels to prevent configuration mismatch errors during hot-swapping procedures.

Frequently Asked Questions

Q: What operational limits govern hot-swapping or replacing this module during active system operation? A: Field engineers must verify that the replacement unit shares identical firmware revisions before insertion into an energized backplane. While the Mark VIe architecture supports live insertion, technicians must properly unlatch retaining hardware and disconnect field cabling to avoid transient voltage surges across backplane connector pins.

Q: How does the 125 VDC input supply distribute power across the module's onboard circuits? A: The module accepts a nominal 125 VDC field power input, utilizing onboard DC-DC converters to step down operating voltages for low-power processing logic while providing channel-to-channel isolation to prevent ground loop propagation across the VNET system.

Field Installation Guidelines

Technicians must mount the unit vertically within the VME rack assembly to maintain proper convection airflow across heat dissipation components. Secure the board assembly using the top and bottom captive screws, applying a hand-tightened torque specification to guarantee consistent chassis ground path continuity. Route all 125 VDC power supply wires and digital I/O signal lines in separate wiring ducts to prevent electromagnetic interference. Standard installation requires bonding cable shields directly to the cabinet ground bar using low-impedance grounding clamps, ensuring less than 1 Ohm resistance to physical earth ground.
