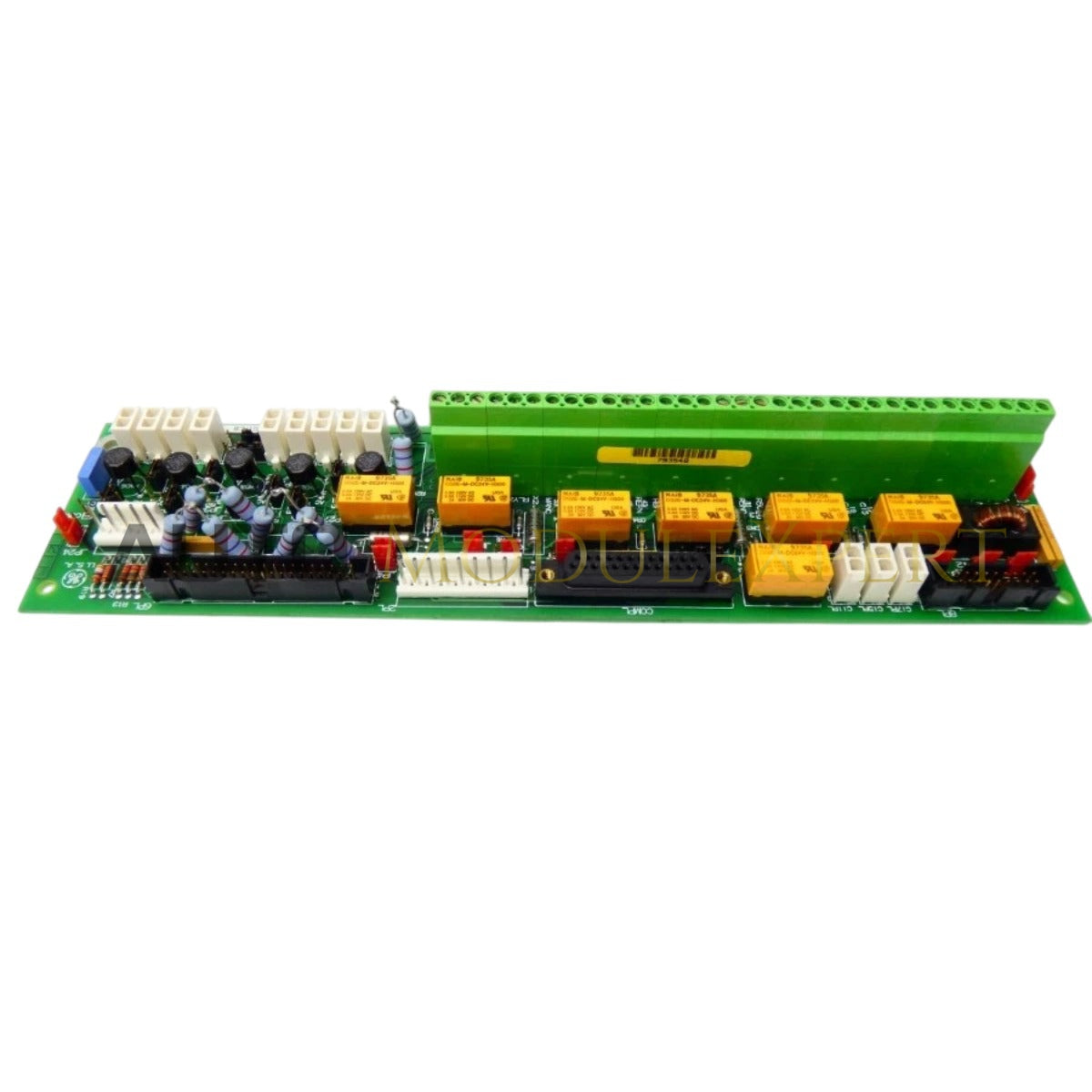

The General Electric DS200STBAG1ACB, also cataloged as the DS200STBAG1ACB Basic Drive Terminal Board, operates as a dedicated hardware component for multi-input/output signal routing and drive control interface within Speedtronic Mark V turbine control platforms.

Suffix Breakdown & Model Matrix

• DS200: Standard Mark V series hardware architecture identifier.
• STBA: Basic Drive Terminal Board circuit architecture.
• G1ACB: Revision level ACB; indicates the specific component layout for I/O mapping and onboard memory configuration.

Hardware Specifications

Channel-to-Channel Isolation

The DS200STBAG1ACB functions as the primary interface between drive-level controls and the Mark V turbine control system. By incorporating onboard RAM, the board facilitates the buffering of I/O data, which is essential for maintaining accurate signal processing in high-speed turbine applications. The terminal board architecture provides robust isolation between distinct input and output channels, effectively mitigating ground loops and electromagnetic interference common in high-power drive environments.

Frequently Asked Questions

Q: Can the onboard RAM on the DS200STBAG1ACB be upgraded or expanded?

A: No. The onboard RAM is a factory-installed component integrated into the board's design to support specific I/O processing tasks. It is not intended for user-side expansion or modification.

Q: Is this board compatible with legacy drive systems beyond the Mark V series?

A: The DS200STBAG1ACB is engineered specifically for the Speedtronic Mark V turbine control architecture. It is not designed for backward compatibility with older Speedtronic generations or generic industrial drives.

Field Installation Guidelines

1. Ensure the control cabinet power is completely de-energized before attempting to mount or remove the terminal board.
2. Secure the board to the mounting rail or chassis, ensuring all screws are tightened to establish a reliable chassis ground connection.
3. Terminate all multi-input/output field wiring according to the detailed site-specific I/O mapping diagrams to prevent incorrect signal routing.
4. Verify that all ribbon cable connections are firmly seated in their respective headers to ensure stable communication with the I/O core.
5. Inspect the board for any loose debris or physical damage prior to initial startup and conduct a systematic I/O loop check to verify data integrity.
