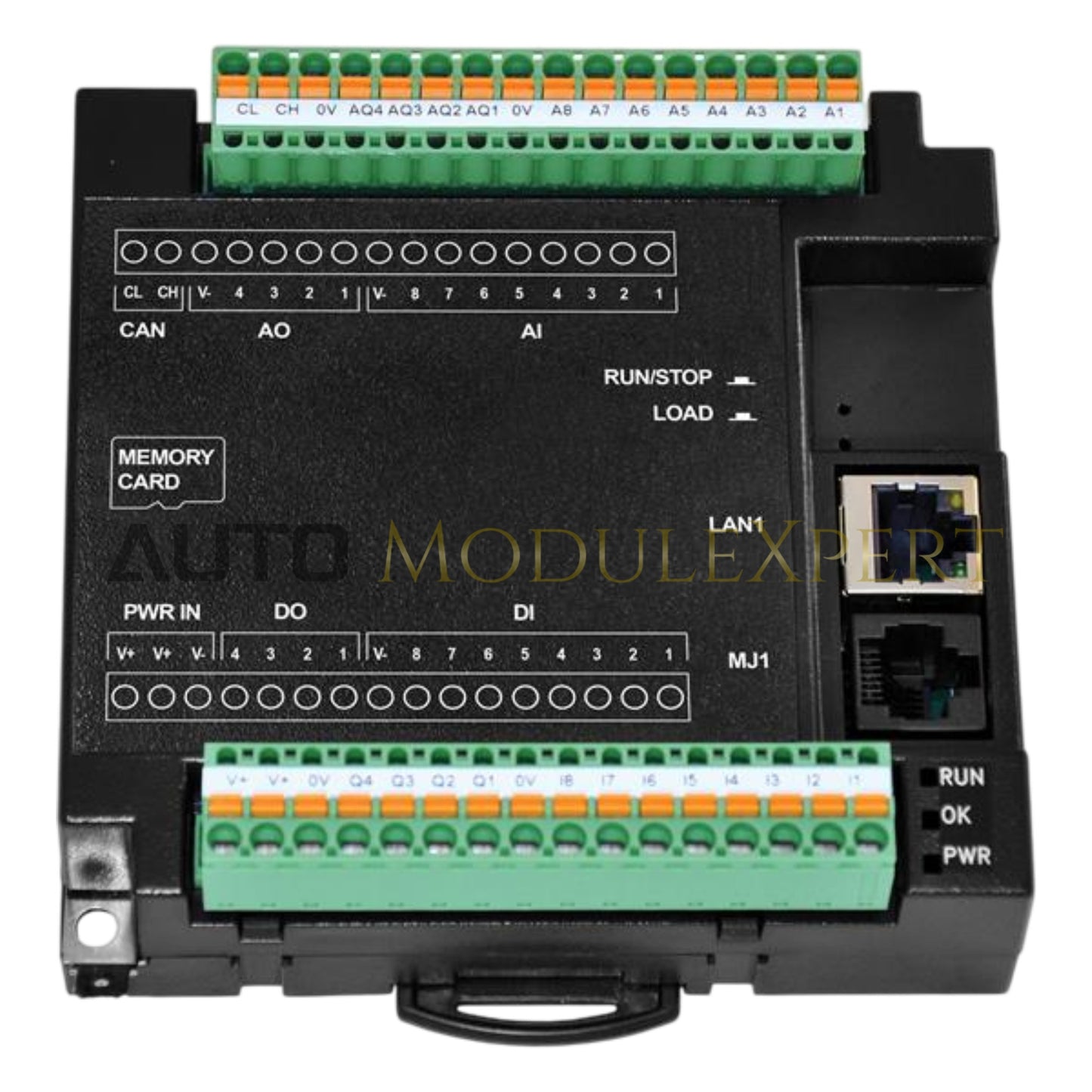

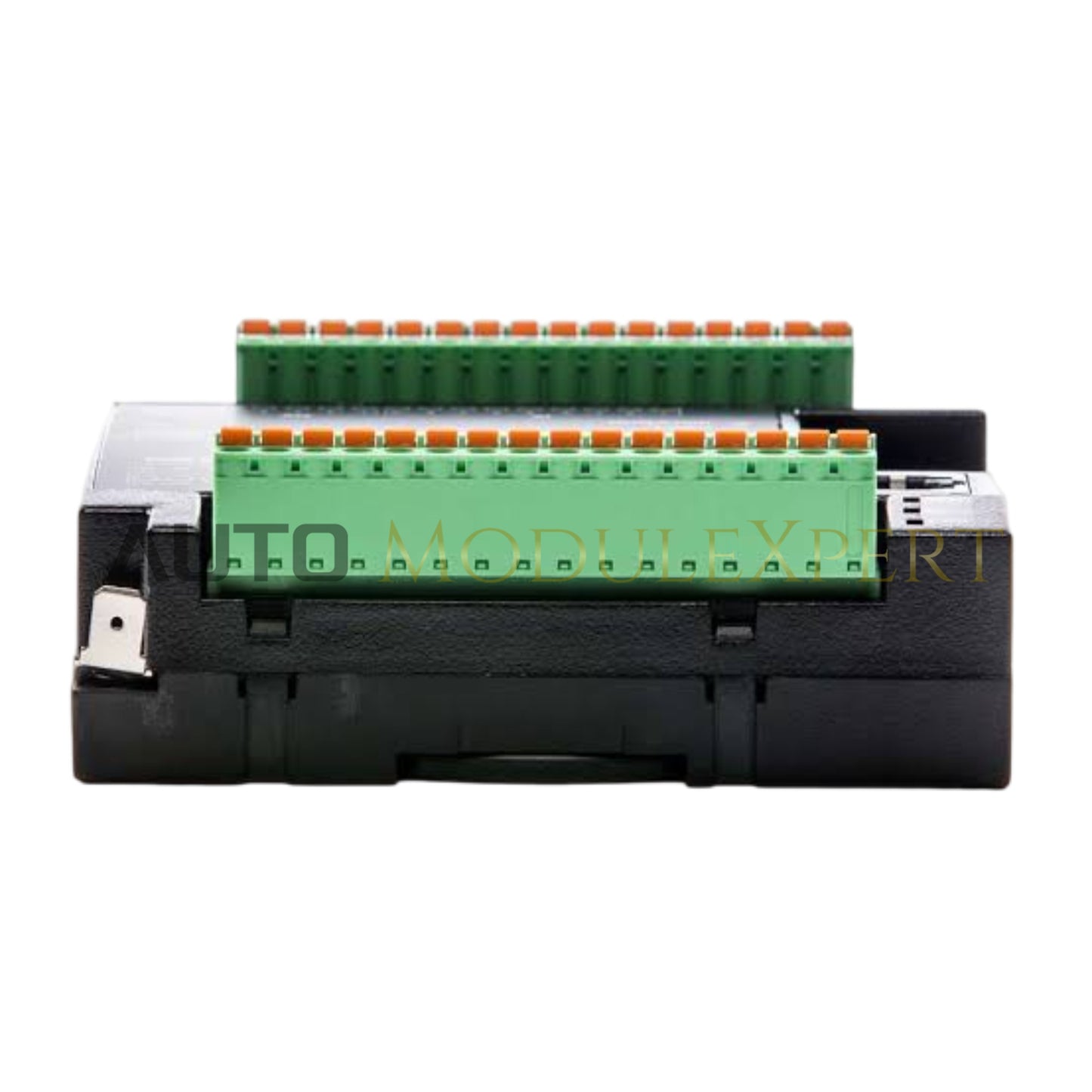

Configured for integrated logic control and process monitoring in industrial automation networks, the GE HE-RCC972 (HE-RCC972 Compact Controller) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | HE-RCC972 |
| Brand | GE |
| Origin | USA |
| Weight | 0.4kg |
| Dimensions | Not specified |
| Operating Temp | -10 deg C to +60 deg C |
| Power Consumption | Not specified |
| Digital Inputs | 8 x 12/24 VDC |
| Digital Outputs | 4 x Sourcing DC (0.5 A each) |
| Analog Inputs | 8 x 12-bit (0-20 mA) |
| Analog Outputs | 4 x 12-bit (0-20 mA) |
| Communication | Ethernet (10/100 Mbps), RS-232, RS-485 |
Industrial Control Deterministic Network Connectivity
The GE HE-RCC972 supports firmware flash compatibility to facilitate periodic updates required for evolving network security and protocol standards. The architecture enables deterministic networking via Modbus TCP/IP, ensuring low-latency data exchange within local automation clusters. Performance parameters, including I/O scan times and backplane bus communication velocity, are optimized for high-density signal processing tasks, ensuring synchronization between the integrated HMI interface and external field-bus devices.
Frequently Asked Questions
Q: What is the maximum load capacity for the digital output channels?
A: Each of the four sourcing DC outputs is rated for a maximum continuous load of 0.5 A. Exceeding this current limit will trigger internal protective measures and may lead to component failure.
Q: Does the controller support field updates for the Modbus communication stack?
A: Yes, the unit supports firmware updates. Compatibility with specific protocol versions must be verified against the current controller firmware revision prior to flashing.
Field Installation Guidelines
- The unit is designed for standard DIN-rail mounting. Ensure the rail is leveled and securely fixed to the backplane to prevent vibration-induced loosening.
- Maintain a minimum distance of 50 mm between the controller and high-voltage power components to minimize electromagnetic interference (EMI).
- Ensure all 0-20 mA analog signal loops utilize shielded twisted-pair cabling, with the shield grounded at a single point to prevent ground loops.
- Verify that the 12/24 VDC input voltage levels are within the specified operational range before powering the unit.
- Ensure the serial RS-232/RS-485 communication lines are properly terminated according to the network topology requirements to prevent signal reflection.
