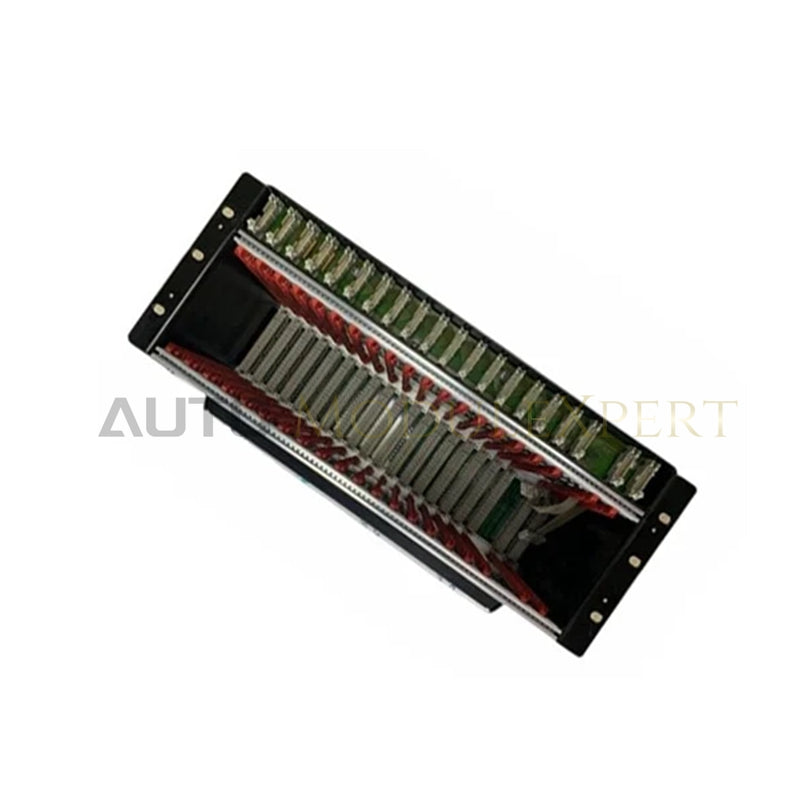

Honeywell FC-IOCHAS-0001S Non-Redundant I/O Chassis
Configured for structured I/O module accommodation in Honeywell Safety Manager and FSC platforms, the Honeywell FC-IOCHAS-0001S (FC-IOCHAS-0001S Non-Redundant I/O Chassis) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FC-IOCHAS-0001S |
| Brand | Honeywell |
| Origin | Manufacturer Standard Facility |
| Weight | 8.5 kg |
| Dimensions | Width 482.6 mm (19 in), Depth 280 mm (11 in), Height 4U (plus top/bottom clearances for first chassis) |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | 5 V-R current consumption of 35 mA at IO-0001 slot 21 |
| Total Module Positions | 21 slots (Slots 1-18 for I/O modules, Slot 21 for IO-0001 extender) |
| Rack Format | Standard 19-inch rack mounting |
| Conformal Coating | Yes (FC hardware version) |
| Approvals | CE, UL, CSA, TÜV, FM |
Process Control Signal Integration and Isolation Architecture
The chassis executes mechanical housing and backplane signal interconnection by integrating a 21-slot layout with dedicated slots for input/output modules and extender hardware. Channel-to-channel isolation and galvanic protection provisions maintain loop integrity across safety-related process control circuits, preventing common-mode noise propagation. Furthermore, the conformal-coated construction (FC version) and integrated rear cable management provisions safeguard internal bus rails and power distribution lines against harsh environmental exposure and electromagnetic interference.
Frequently Asked Questions
Q: What is the slot allocation and module capacity of the FC-IOCHAS-0001S chassis?
A: The chassis features 21 total module slots, comprising 18 dedicated slots for I/O modules (Slots 1-18) and a designated slot for an IO-0001 extender module at slot 21.
Q: What is the backplane power draw associated with the chassis extender slot?
A: The unit draws 35 mA of 5 V-R current from the IO-0001 module positioned at slot 21.
Q: What are the physical dimensions and mounting specifications for this rack assembly?
A: The unit conforms to standard 19-inch rack enclosures, measuring 482.6 mm in width, 280 mm in depth, and a 4U height profile (with specific top and bottom clearance accommodations for initial chassis placement).
Field Installation Guidelines
- Ensure that all system power distribution rails are fully de-energized before mounting the chassis into a 19-inch rack enclosure to prevent electrical arcing on backplane connectors.
- Secure the chassis firmly using standard rack mounting hardware, verifying proper structural weight distribution for the 8.5 kg unit.
- Route field wiring through the integrated rear cable management channels to maintain strain relief and prevent mechanical tension on backplane bus pins.
- Verify correct slot positioning—ensuring I/O modules occupy slots 1 through 18 and the IO-0001 extender resides in slot 21—before applying system power.
