Overview

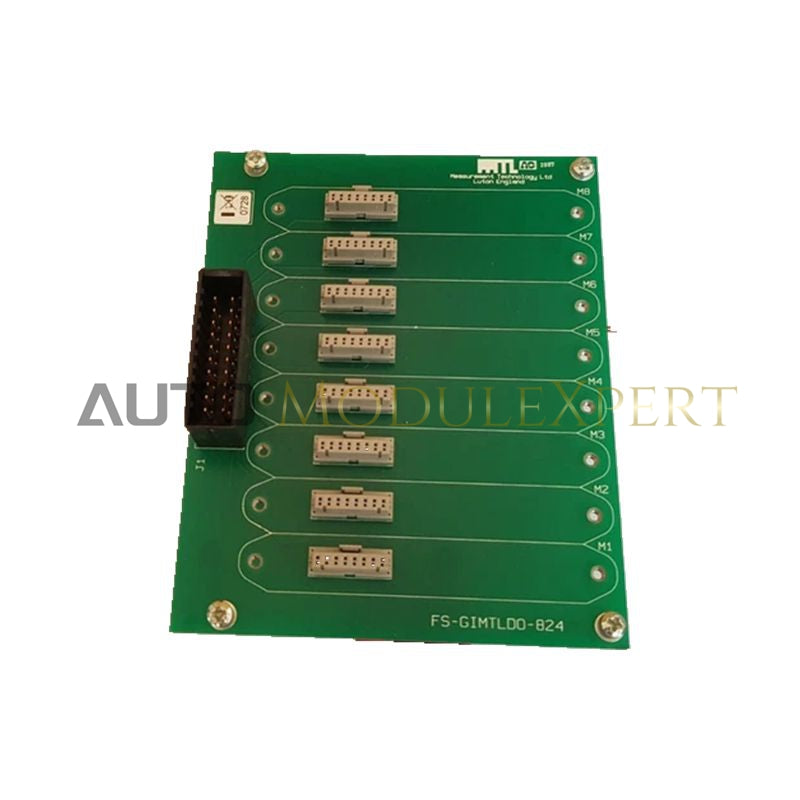

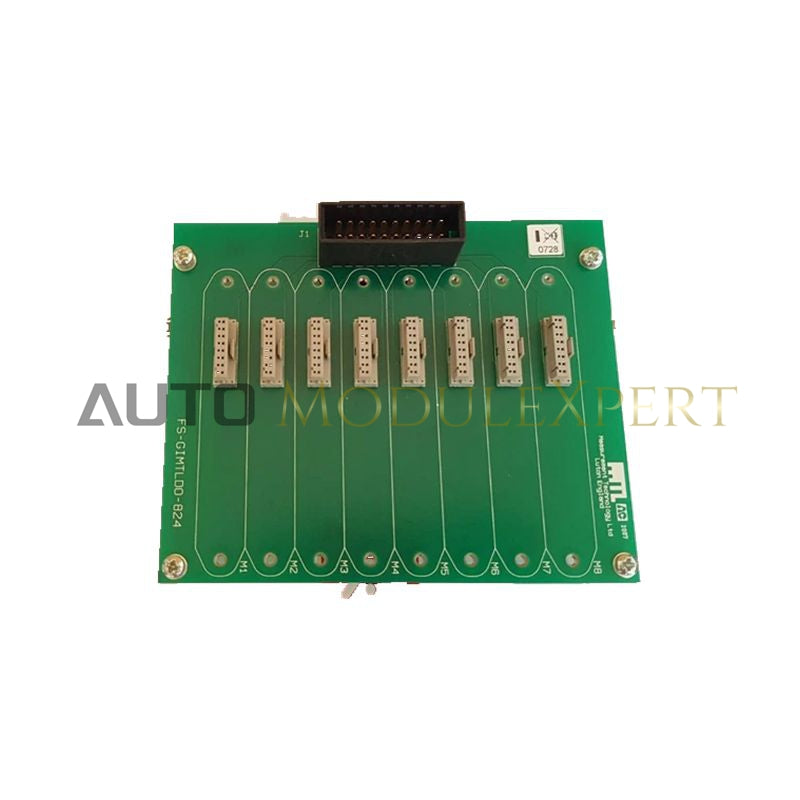

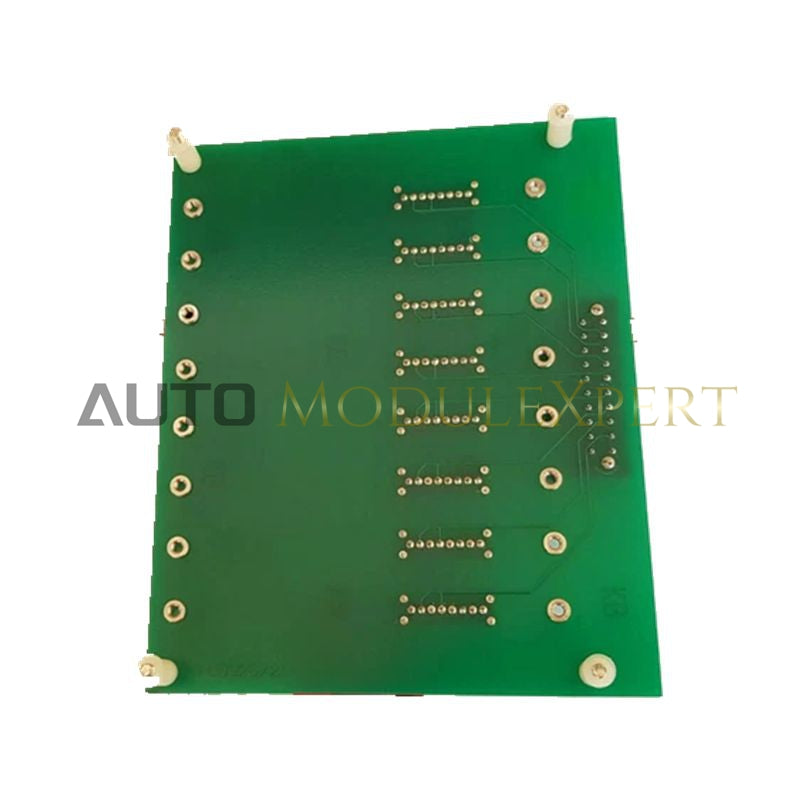

The Honeywell FS-GIMTLDO-824 Printed Circuit Board (PCB) is engineered for seamless integration into Honeywell’s distributed control systems, including SMS backplane architectures. It functions as a signal interface module, managing data flow between controllers, sensors, and actuators.
Moreover, its rugged FR4 construction and surface-mount design allow for high-density installations in compact control cabinets. In addition, the board’s wide operating temperature range and EMI-resistant layout make it suitable for demanding industrial settings such as chemical plants, power stations, and manufacturing facilities.
This PCB is trusted by automation engineers for its durability, precision, and compatibility with Honeywell’s legacy and modern control platforms. Therefore, it plays a critical role in maintaining system uptime and data integrity across diverse applications.
Technical Data
| Parameter | Specification |
|---|---|
| Product Number | FS-GIMTLDO-824 |
| Product Type | Printed Circuit Board (PCB) |
| Dimensions | 114 mm × 120 mm × 20 mm |
| Weight | 0.5kg |
| Operating Temp | –40°C to +85°C |
Typical Applications
-
Signal Routing: Manages communication between field devices and central controllers in distributed control systems.
-
Process Automation: Used in industries such as oil & gas, chemical processing, and power generation.
-
Control Cabinet Integration: Ideal for compact, high-density installations requiring robust signal management.
-
System Expansion: Supports additional I/O and logic modules in Honeywell SMS backplane configurations.
-
Harsh Environment Operations: Performs reliably under extreme temperatures and high humidity conditions.
For instance, in a refinery automation system, this PCB ensures accurate signal transmission from field sensors to the control room. In addition, its EMI-resistant design minimizes interference, enhancing system stability and safety.
FAQ
Q: Is the FS-GIMTLDO-824 compatible with non-Honeywell systems?
A: No, it is specifically designed for Honeywell’s process control platforms.
Q: What type of signals does this PCB handle?
A: It manages low-voltage digital and analog signals for industrial automation.
Q: Can it be used in outdoor installations?
A: It is rated for harsh environments but typically installed within protected control cabinets.
Q: Is the board hot-swappable?
A: No, power must be disconnected before installation or replacement.
