Overview

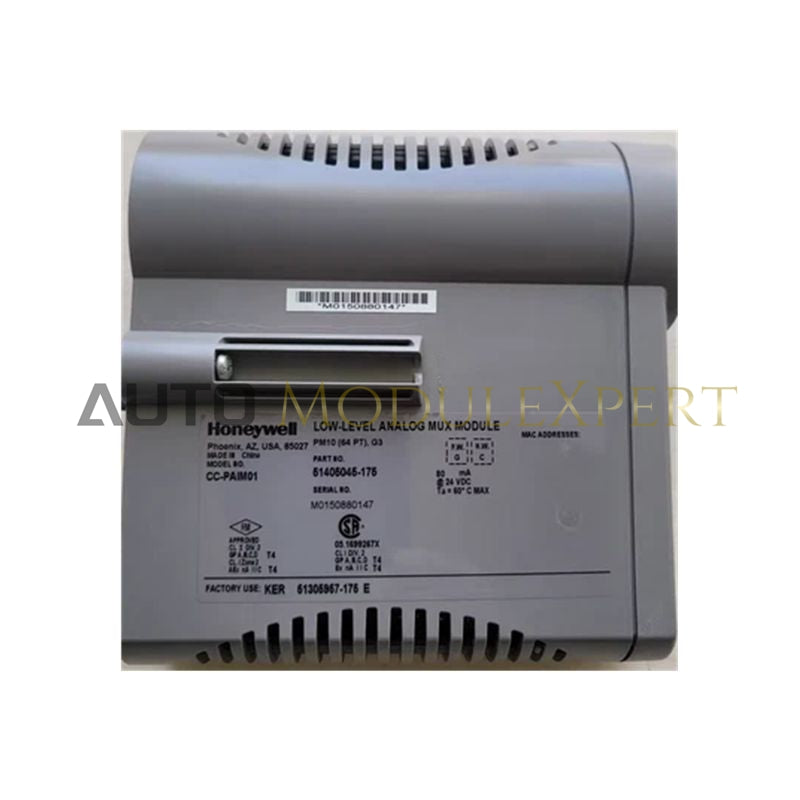

The Honeywell CC-PAIM01 (Part Number: 51405045-175) is a low-level analog input multiplexer (MUX) module designed for high-density temperature signal acquisition. With the ability to support up to 64 fully isolated channels, it is ideal for industrial applications such as HVAC, process control, and medical equipment that require precise temperature monitoring. The module supports both RTD and thermocouple (TC) inputs, making it highly versatile in temperature-sensitive environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | CC-PAIM01 |
| Part Number | 51405045-175 |
| Product Type | Low-Level Analog Input MUX Module |
| Dimensions | 96 × 96 × 25 mm |
| Weight | 0.45kg |
Performance and Integration
The CC-PAIM01 collects temperature data from its 64 channels at a rate of 1 second across all channels. It utilizes the Honeywell PMIO LLMUX FTA for field termination, ensuring compatibility with both RTD and thermocouple (TC) sensors. The module’s high isolation and precision make it particularly suitable for sensitive industrial environments that demand accurate temperature measurements.
Design and Reliability
Built with CE-certified components, the CC-PAIM01 features a robust isolation architecture that minimizes signal interference and drift. With its compact 0.45 kg form factor, this module fits easily into standard enclosures, ensuring long-term reliability and minimal signal drift. The modular design enhances the overall stability of systems that rely on precise temperature data for operations.
