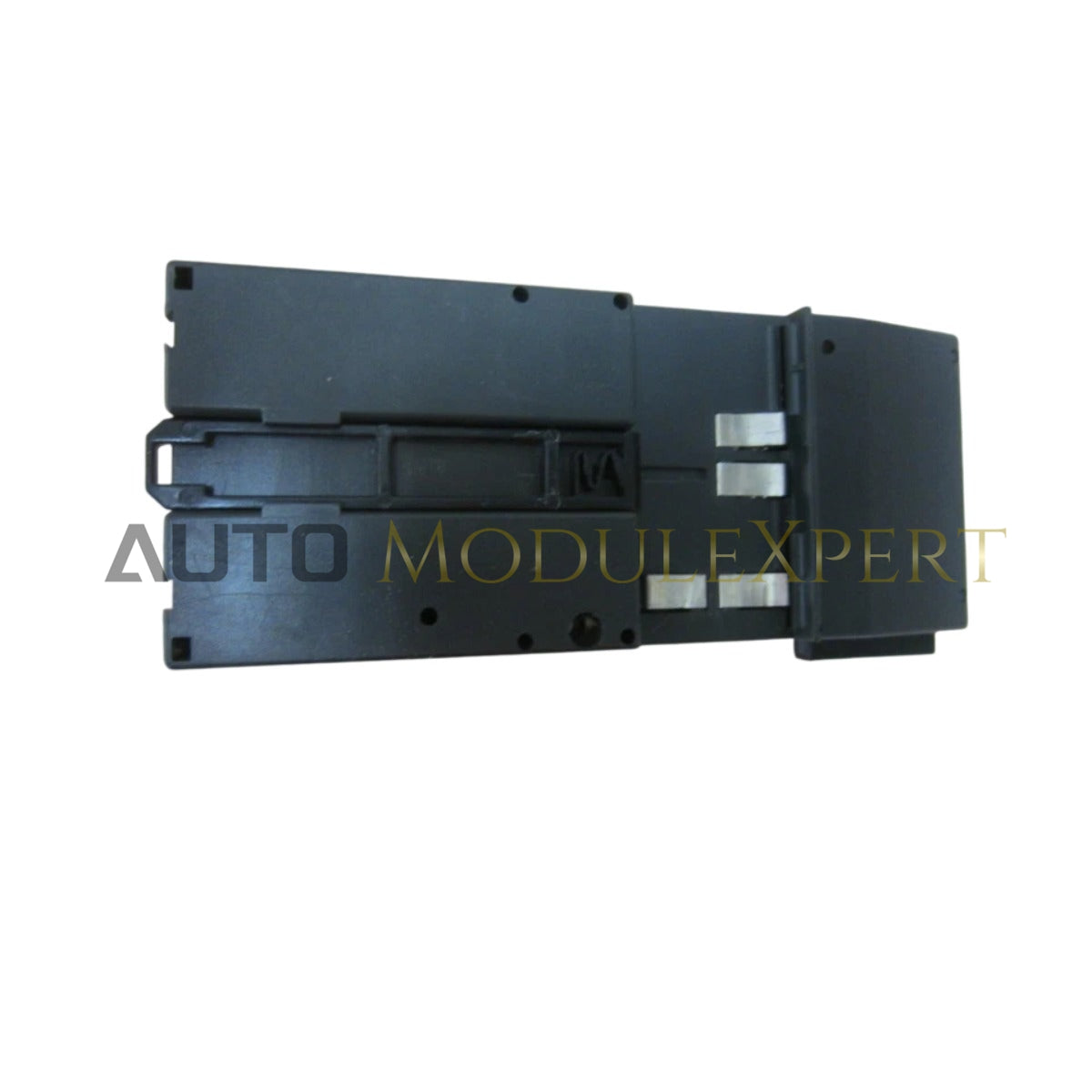

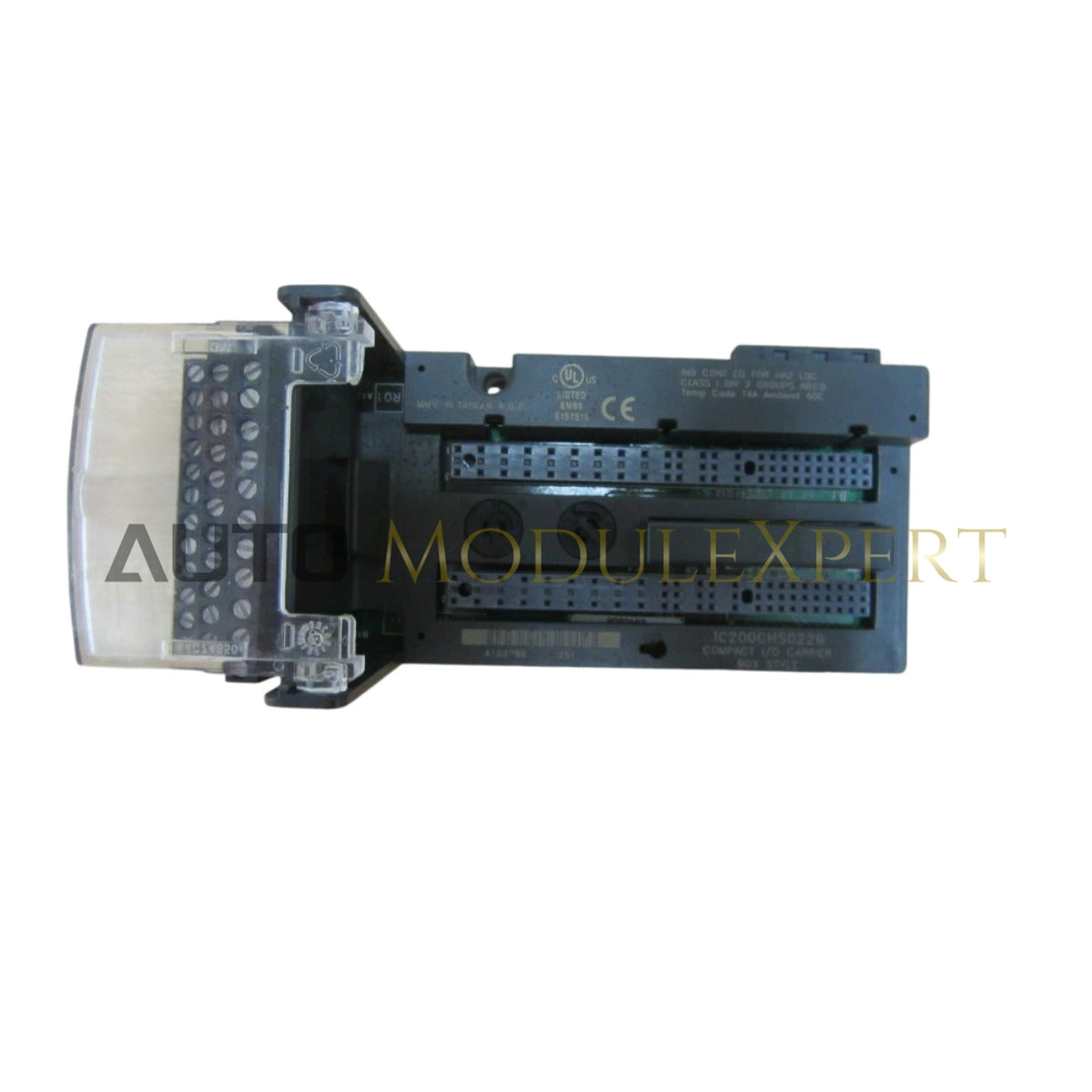

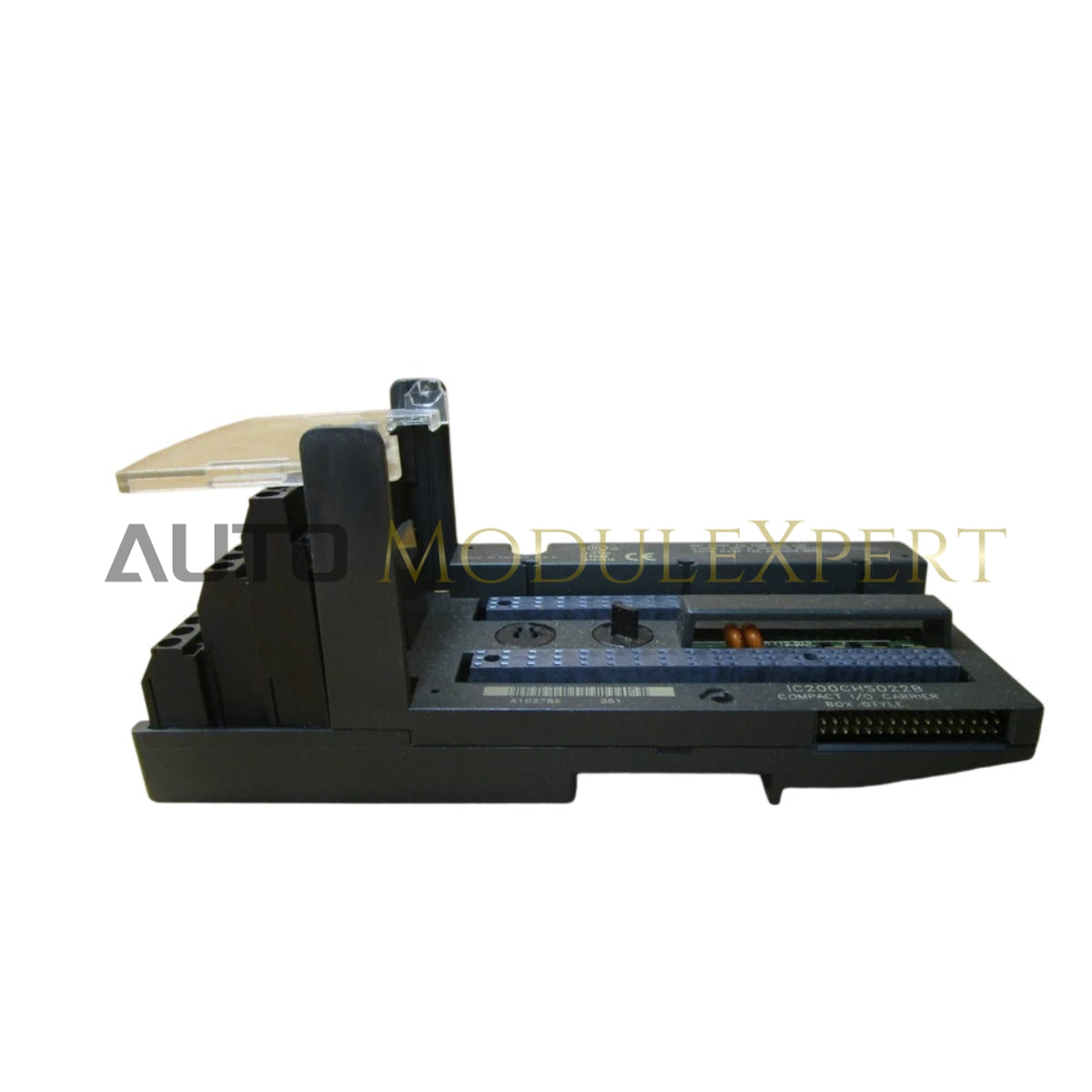

The GE Fanuc IC200CHS022B, also cataloged as the IC200CHS022 I/O Carrier, operates as a dedicated hardware component for module mounting and backplane signal distribution within Versamax control networks.
Suffix Breakdown & Model Matrix
- IC200: Versamax series product identifier.
- CHS: Indicates carrier or base module classification.
- 022: Compact I/O base configuration.
- B: Hardware revision level indicating design iteration for terminal block compatibility and mechanical stability.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200CHS022B |
| Brand | GE Fanuc Emerson |
| Origin | Subject to manufacturing batch |
| Weight | 0.44 lbs (0.2 kg) |
| Dimensions | 6.4 cm x 16.5 cm x 7.1 cm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Passive (Backplane pass-through) |
| Compatibility | Versamax I/O Modules |
DIN-Rail Mounting Stability
The IC200CHS022B provides the mechanical foundation and electrical interface for Versamax I/O modules. It facilitates the backplane bus communication, ensuring reliable data transfer between the module and the system CPU. The carrier design includes integrated latches for secure DIN-rail mounting, which is essential to maintain the integrity of the backplane bus communication velocity under industrial vibration conditions. By providing a rigid physical interface, the carrier ensures that the high-density I/O pins remain perfectly aligned with the backplane connector, preventing contact degradation that could lead to packet errors in deterministic networks.
Frequently Asked Questions
Q: Does the carrier provide galvanic isolation between modules?
A: The carrier acts as a pass-through for backplane signals; galvanic isolation is typically a function of the I/O module circuitry itself, not the carrier base.
Q: Is this carrier compatible with all Versamax I/O modules?
A: The IC200CHS022B is compatible with standard Versamax I/O modules; however, verify the specific module's technical manual to ensure physical and electrical pin-out compatibility with this carrier iteration.
Field Installation Guidelines
- Ensure the DIN-rail is securely mounted to a vibration-dampened panel to protect the carrier assembly.
- Snap the carrier onto the DIN-rail and ensure the locking tab is fully engaged to prevent accidental disconnection.
- Align the module carefully when inserting it into the carrier to avoid bending the backplane connector pins.
- Tighten all terminal screws to the specified torque after wiring to prevent thermal expansion issues or intermittent signal resistance.
