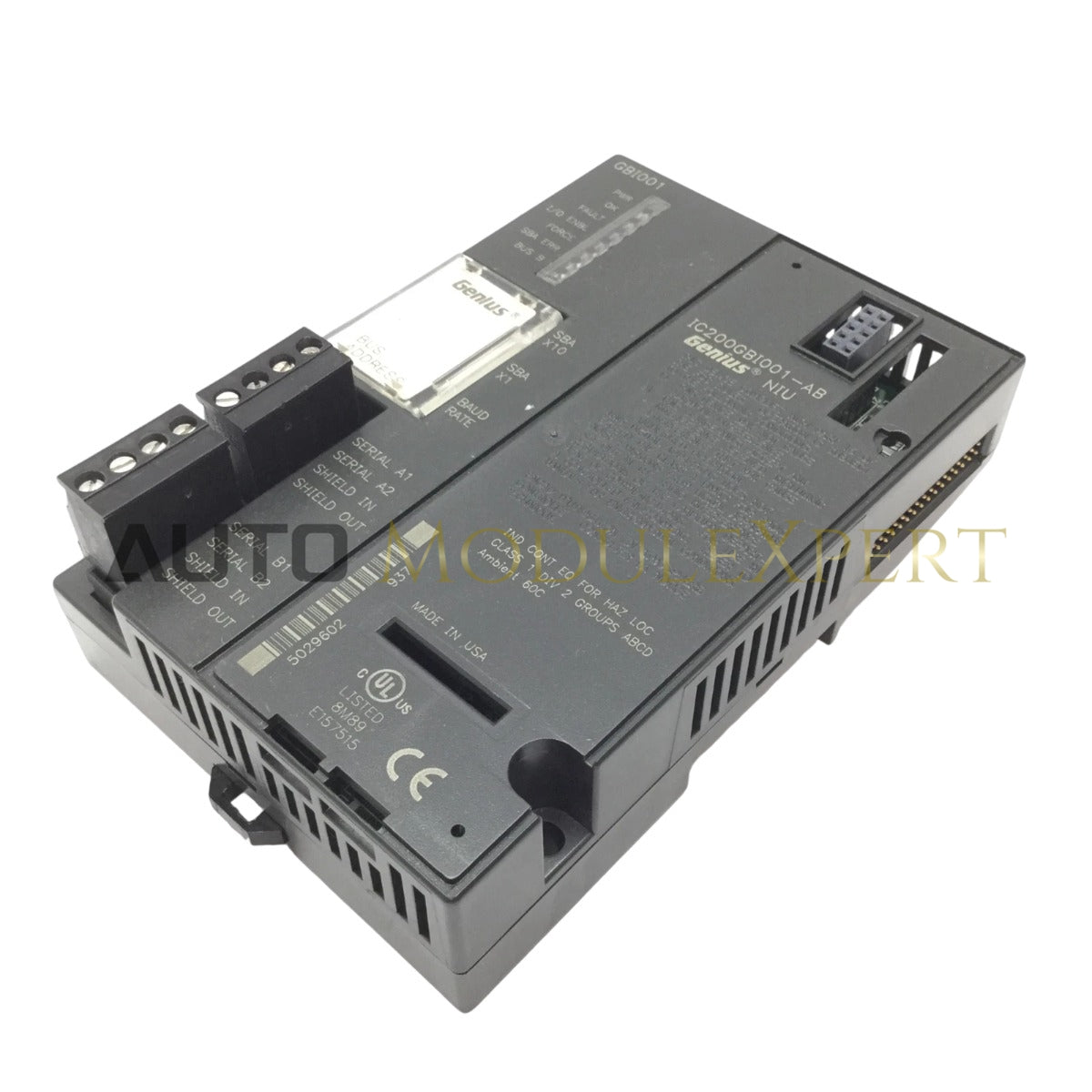

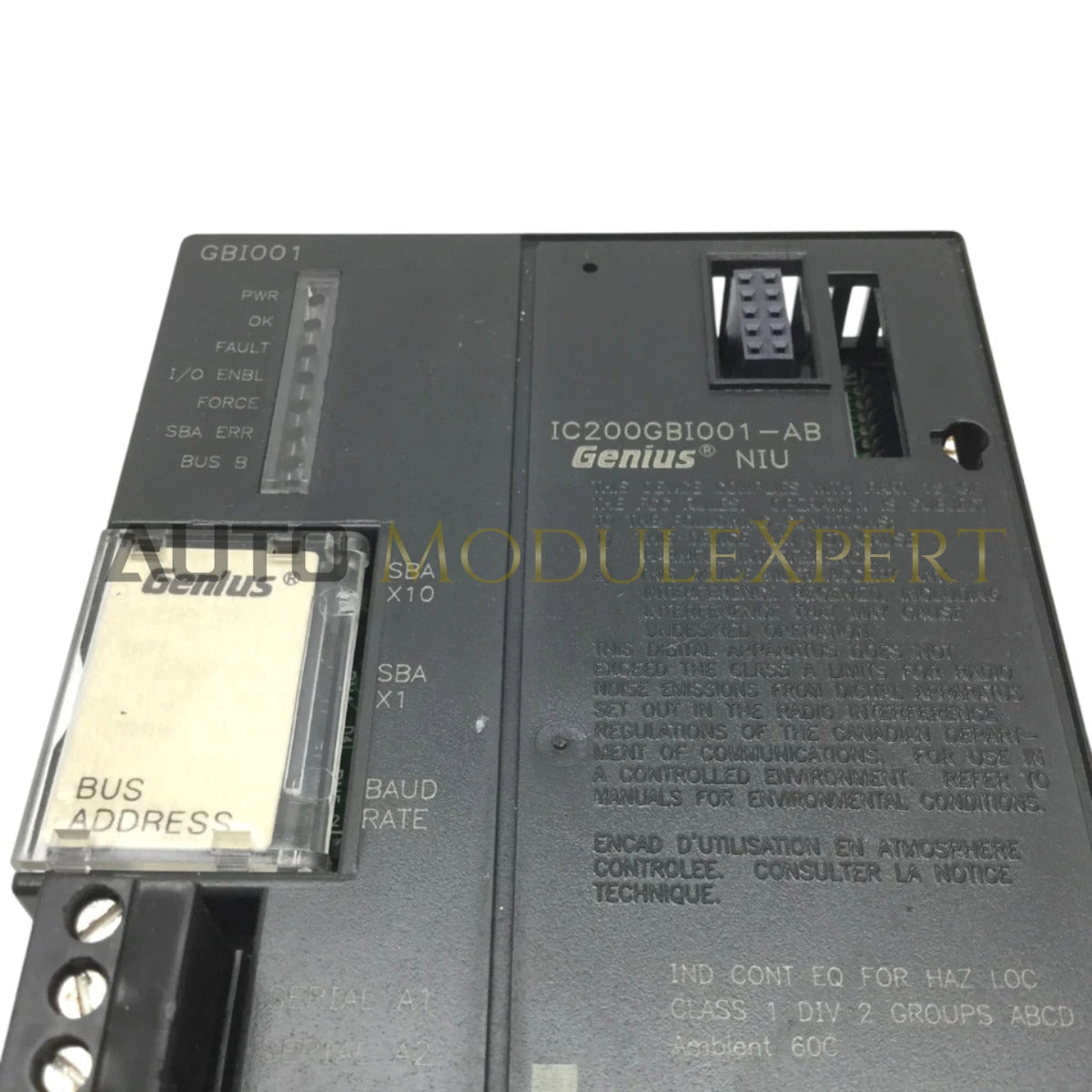

Configured for legacy network orchestration in Versamax control systems, the GE Fanuc IC200GBI001-AB (IC200GBI001-AB Genius Network Interface Unit) provides direct physical/electrical execution. This unit acts as a gateway, translating data packets between the Genius I/O field bus and the Versamax backplane, allowing legacy nodes to communicate within updated control architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200GBI001-AB |
| Brand | GE Fanuc |
| Origin | Verify via product label |
| Weight | 0.17 kg (0.38 lbs) |
| Dimensions | Standard Versamax module footprint |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Backplane dependent |
| I/O Type | Genius Network Interface |
| Compatibility | Versamax Series |
Profinet / EtherNet/IP Deterministic Networks
The IC200GBI001-AB interface unit manages deterministic data traffic by synchronizing the Genius bus cyclic scan with the Versamax backplane bus communication velocity. This integration allows for the maintenance of deterministic timing in legacy networks, ensuring that I/O states remain consistent across the system. The unit handles frame buffering to reconcile differences in protocol speeds between the Genius network and the primary controller bus. Firmware flash compatibility is managed through the Genius configuration toolset, ensuring that link-layer parameters remain optimized for the specific baud rate of the existing field network.
Frequently Asked Questions
Q: Does this unit support the full Genius I/O baud rate range?
A: Yes, the interface supports standard Genius bus baud rates. Configuration settings must match the established baud rate of the existing Genius network segment for successful link establishment.
Q: Is this unit compatible with non-Versamax I/O components?
A: The IC200GBI001-AB is specifically designed to interface Genius I/O devices to the Versamax platform. Compatibility with other I/O platforms depends on the specific protocol conversion capabilities enabled in the system master.
Field Installation Guidelines
- DIN-Rail Mounting: Secure the interface unit onto a grounded 35 mm DIN rail. Ensure the module locking latches are fully engaged to maintain mechanical stability and electrical backplane continuity.
- Genius Bus Cabling: Use shielded twisted-pair cabling specifically rated for Genius network deployment. Ensure the bus is correctly terminated at both physical ends with the appropriate resistance to prevent signal reflections.
- Grounding: Connect the unit’s chassis ground terminal to the main system common ground bus. This is critical for maintaining signal integrity against electromagnetic interference (EMI) prevalent in legacy network environments.
- Addressing: Confirm that the hardware-switched address matches the configuration defined in the master control software to avoid network node conflicts during the power-up sequence.
