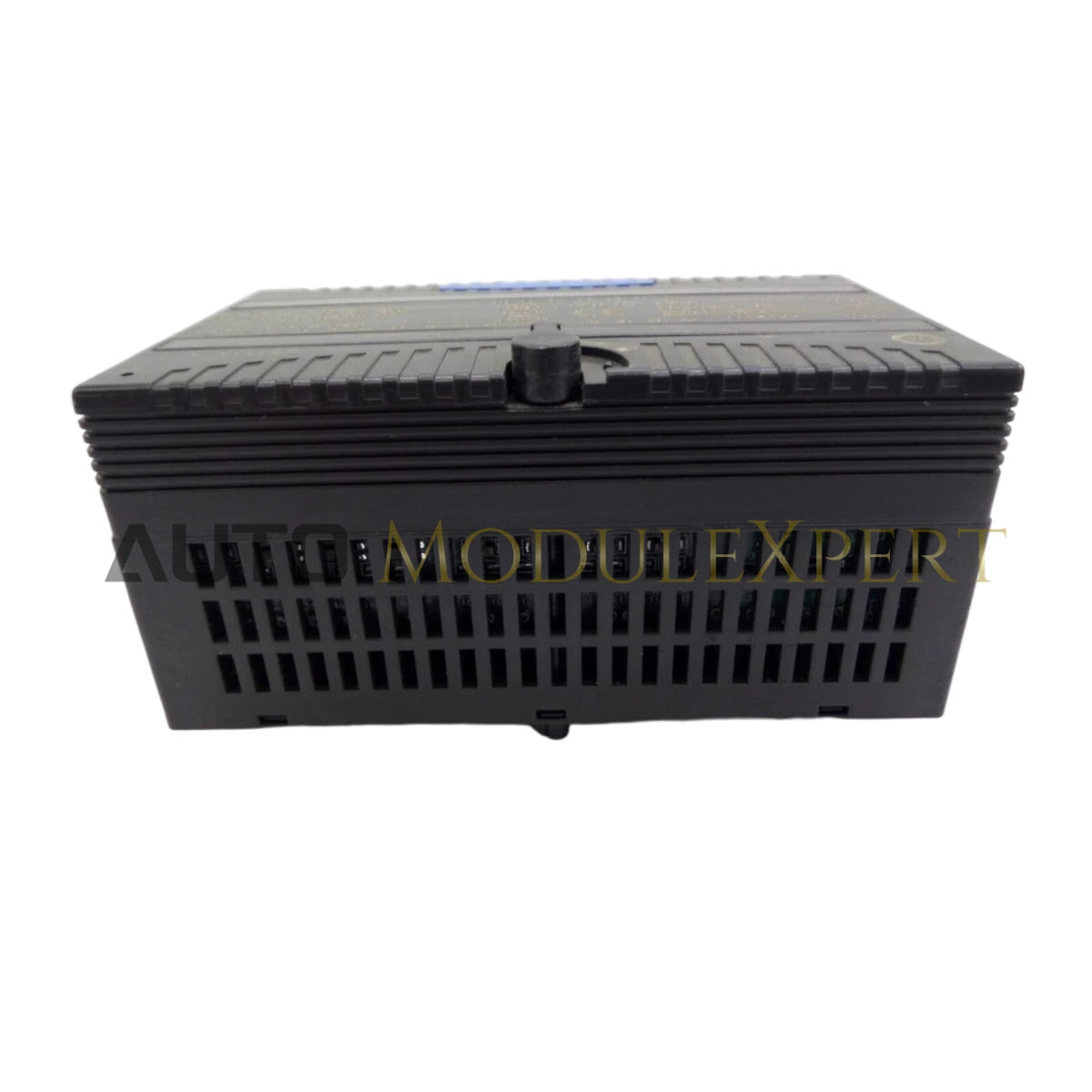

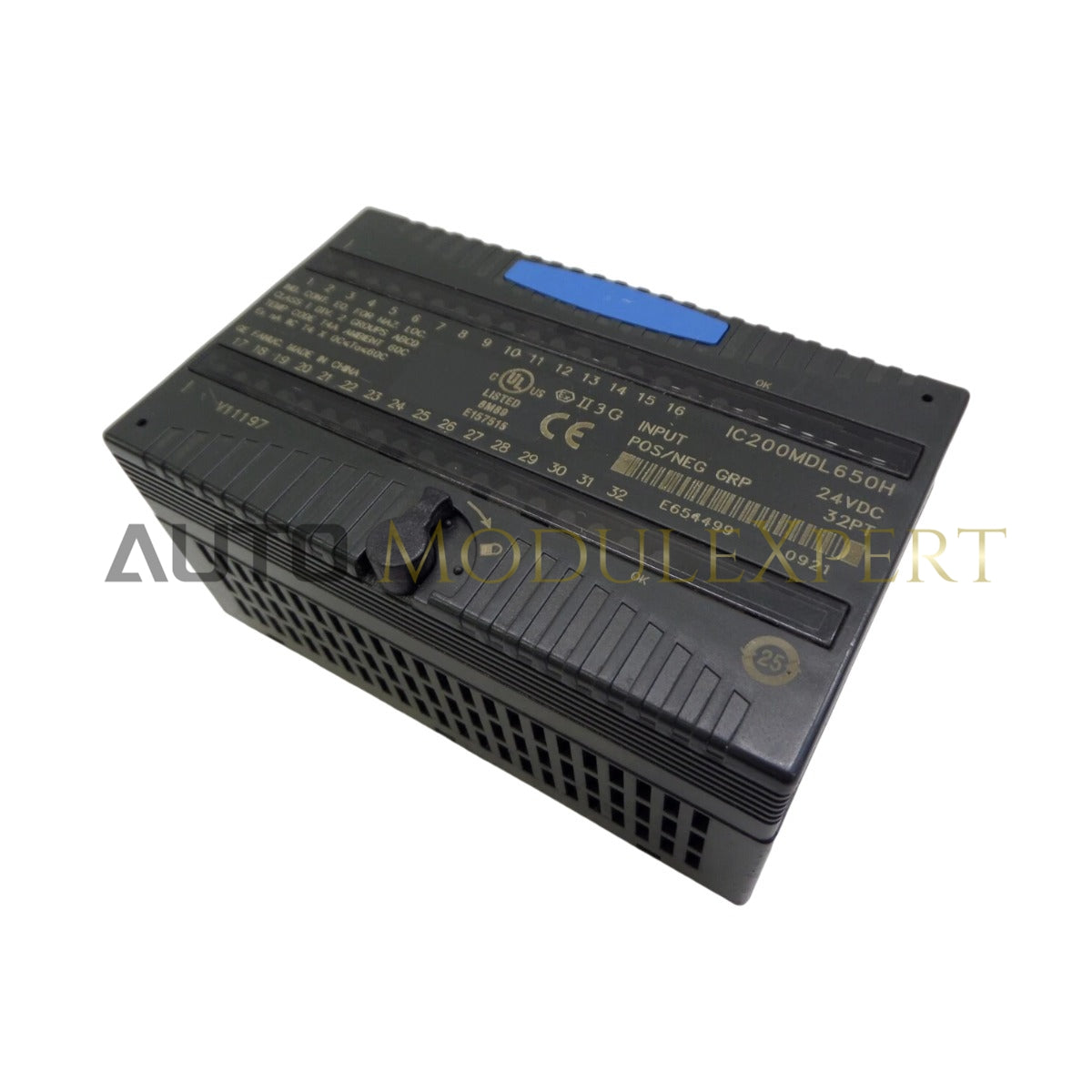

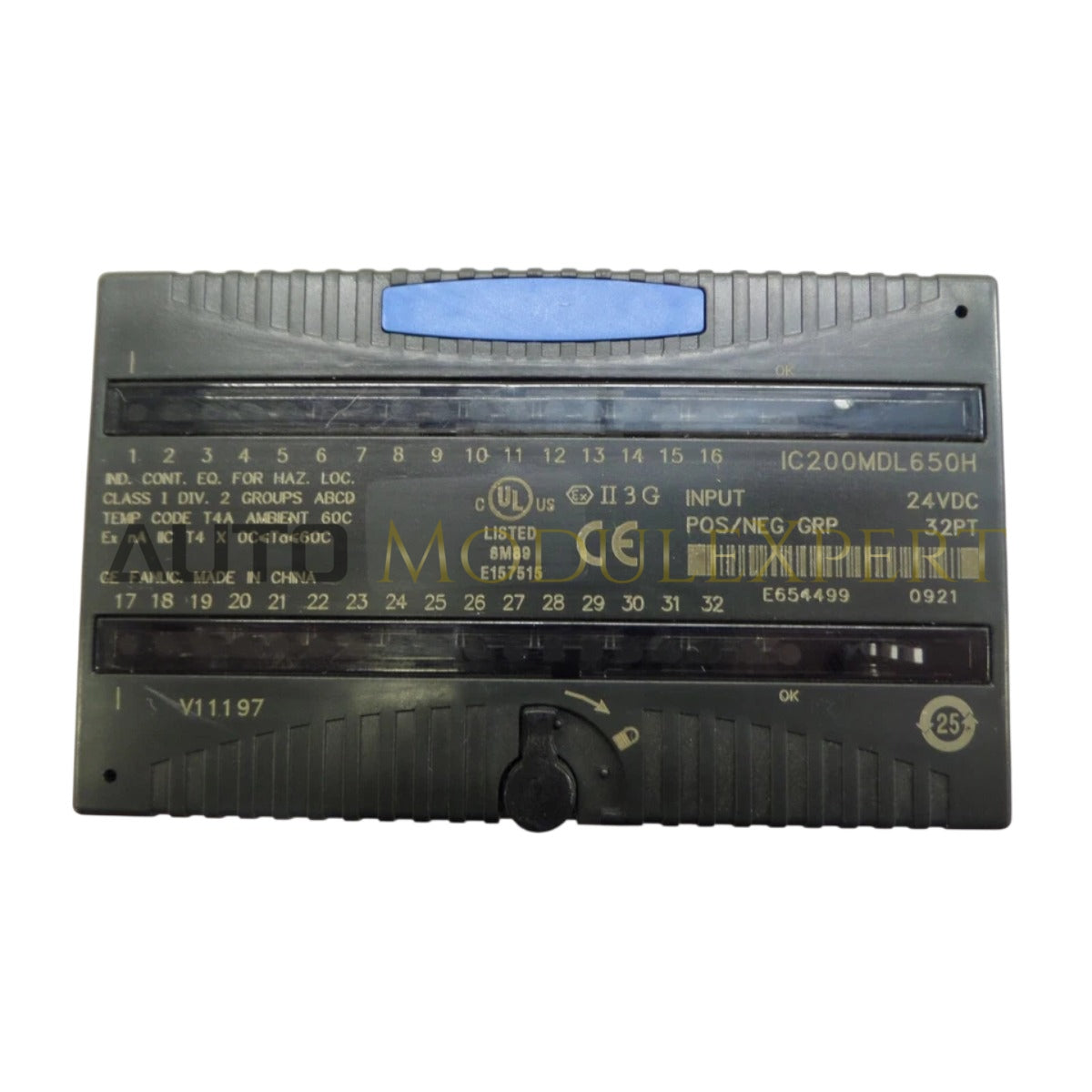

The GE Fanuc IC200MDL650B, also cataloged as the IC200MDL650B Discrete Input Module, operates as a dedicated hardware component for high-density signal acquisition within Versamax platforms.

Suffix Breakdown & Model Matrix

The IC200MDL650B is a fixed-density 32-point input module. The "B" suffix represents the current production revision, incorporating optimized signal filtering circuits to maintain integrity across the high-density I/O bus architecture.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The IC200MDL650B integrates into the Versamax backplane to support high-speed I/O density scaling. The module captures field state changes and buffers them for cyclic transmission to the CPU. In deterministic network environments, the module's scan interval is synchronized with the backplane communication cycle, ensuring that the 32 input points are reported within the defined system latency windows. Compatibility with existing I/O scanner firmware is required to map the complete 32-bit input data structure into the controller's process image memory.

Frequently Asked Questions

Q: Does this module support hot-swap under load?

A: The module supports hot-swapping within the Versamax system; however, field wiring must be de-energized to prevent arcing at the terminal base contacts during extraction.

Q: How is the 32-point input data structured in the controller memory?

A: The module occupies a predefined block of input data words, typically mapped as 32 discrete bits (4 bytes) in the CPU memory table, depending on the specific backplane configuration.

Field Installation Guidelines

• Verify that the terminal base is securely mounted to the DIN rail to ensure stable contact between the module and the backplane connectors.
• Use shielded cabling for field inputs if the cable runs exceed standard lengths, ensuring the shield is grounded at the entry point to reduce common-mode noise.
• Ensure all 32 input wires are labeled according to the terminal mapping diagram to prevent incorrect logic signal interpretation.
• Observe the maximum voltage rating for the inputs; connecting voltage levels exceeding the module's specification will result in internal circuit failure.
• Verify the "OK" status LED on the front panel after power-up; if the LED is off, check for correct module seating or potential backplane power supply issues.
