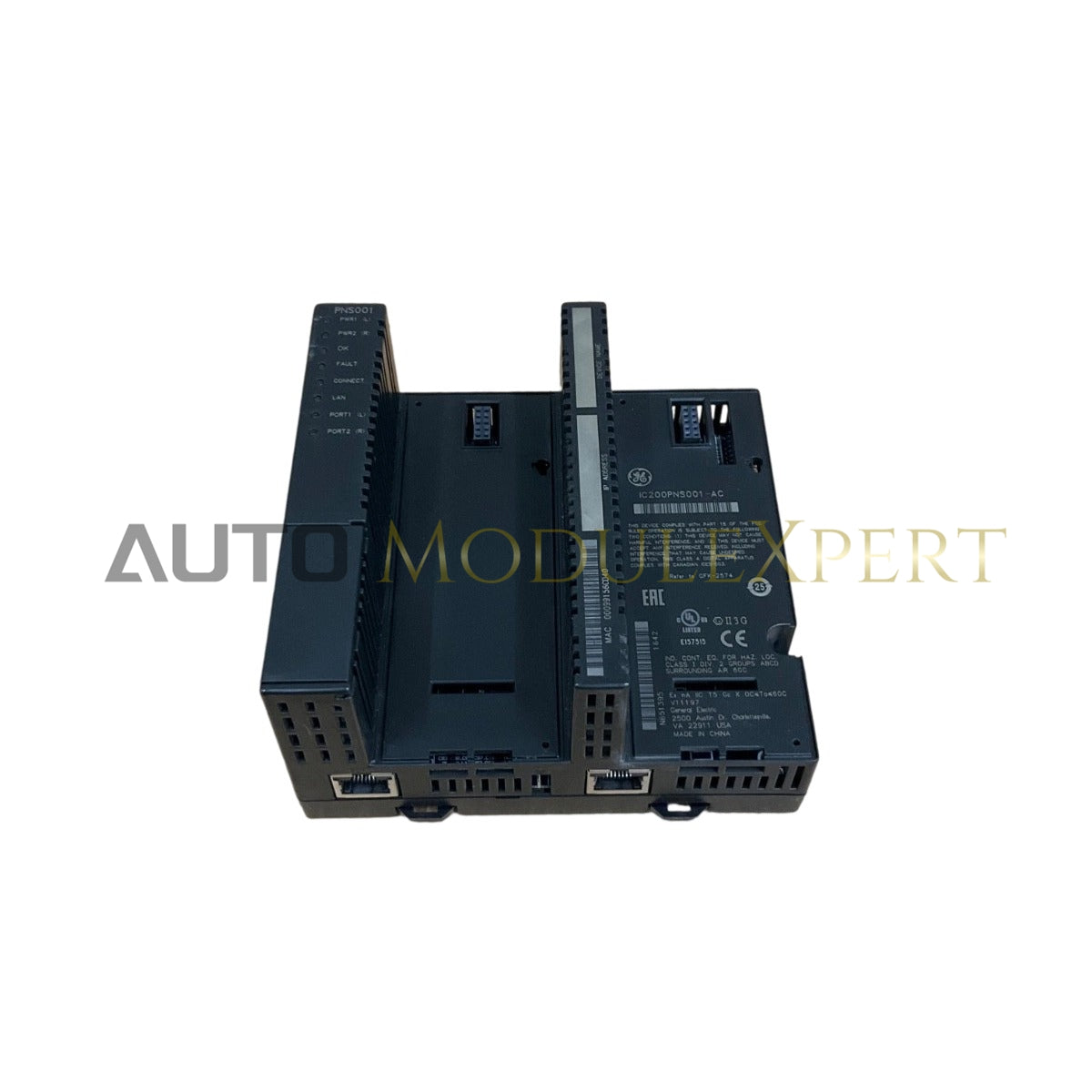

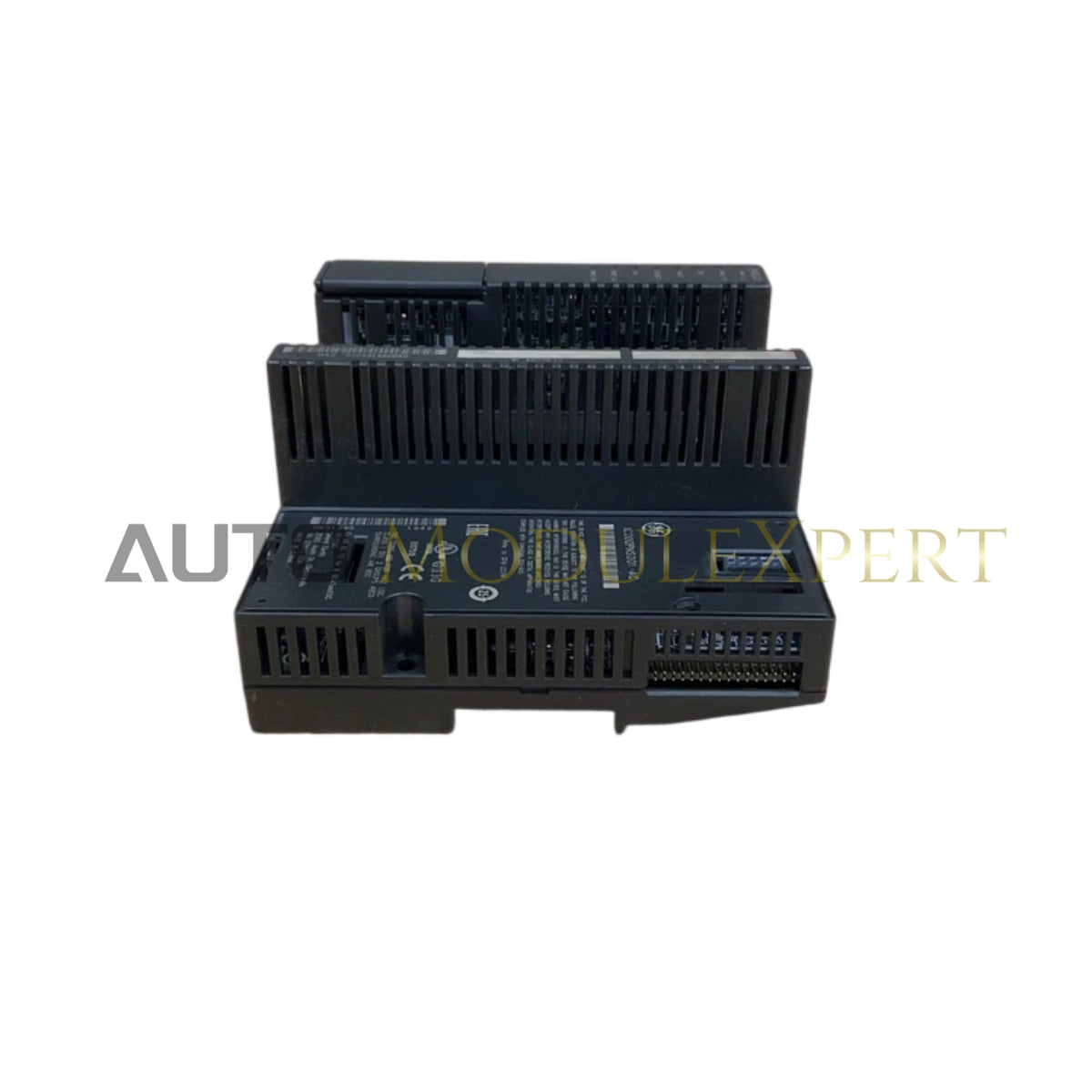

The GE Fanuc IC200PNS001CA, also cataloged as the IC200PNS001CA Remote I/O Profinet Network Interface Unit, operates as a dedicated hardware component for managing Profinet communication traffic within Versamax system networks. This interface unit translates network protocol data into local backplane signals, facilitating the integration of distributed I/O blocks into high-speed control environments.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The IC200PNS001CA is engineered to maintain high-speed, deterministic data exchange between the Profinet controller and the connected I/O modules. It employs real-time (RT) communication protocols to minimize latency during cyclic data updates. The module architecture supports network topology flexibility, allowing for integration within linear or star configurations. Through backplane bus communication, it coordinates the update rate of all downstream modules, ensuring precise timing for process control loops. The firmware manages status diagnostics and error reporting to the host controller to maintain link stability and data packet integrity across the industrial network.

Frequently Asked Questions

Q: Does the IC200PNS001CA support MRP (Media Redundancy Protocol)?

A: Yes, this unit is designed to support MRP, allowing for ring topology configurations to provide network path redundancy and increase system fault tolerance.

Q: How is the IP address and device name managed on this unit?

A: Device identification and network addressing are typically assigned via the Profinet controller configuration software or through a DCP (Discovery and Configuration Protocol) compliant commissioning tool.

Field Installation Guidelines

• Network Cabling: Utilize shielded twisted-pair (STP) Category 5e or higher Ethernet cables. Ensure that cable bends remain within the manufacturer's recommended radius to avoid data packet loss.
• Grounding: Secure the unit to a properly bonded mounting rail. Use a low-impedance grounding strap to connect the module chassis to the system reference ground to minimize susceptibility to electrostatic discharge.
• Power Supply: Ensure the 24 VDC power supply connected to the unit is isolated from inductive loads to prevent voltage spikes that could disrupt communication.
• Link Termination: When using end-of-line configurations, ensure all open ports are properly sealed and that network cables are routed away from high-current power conduits to prevent electromagnetic interference (EMI).
