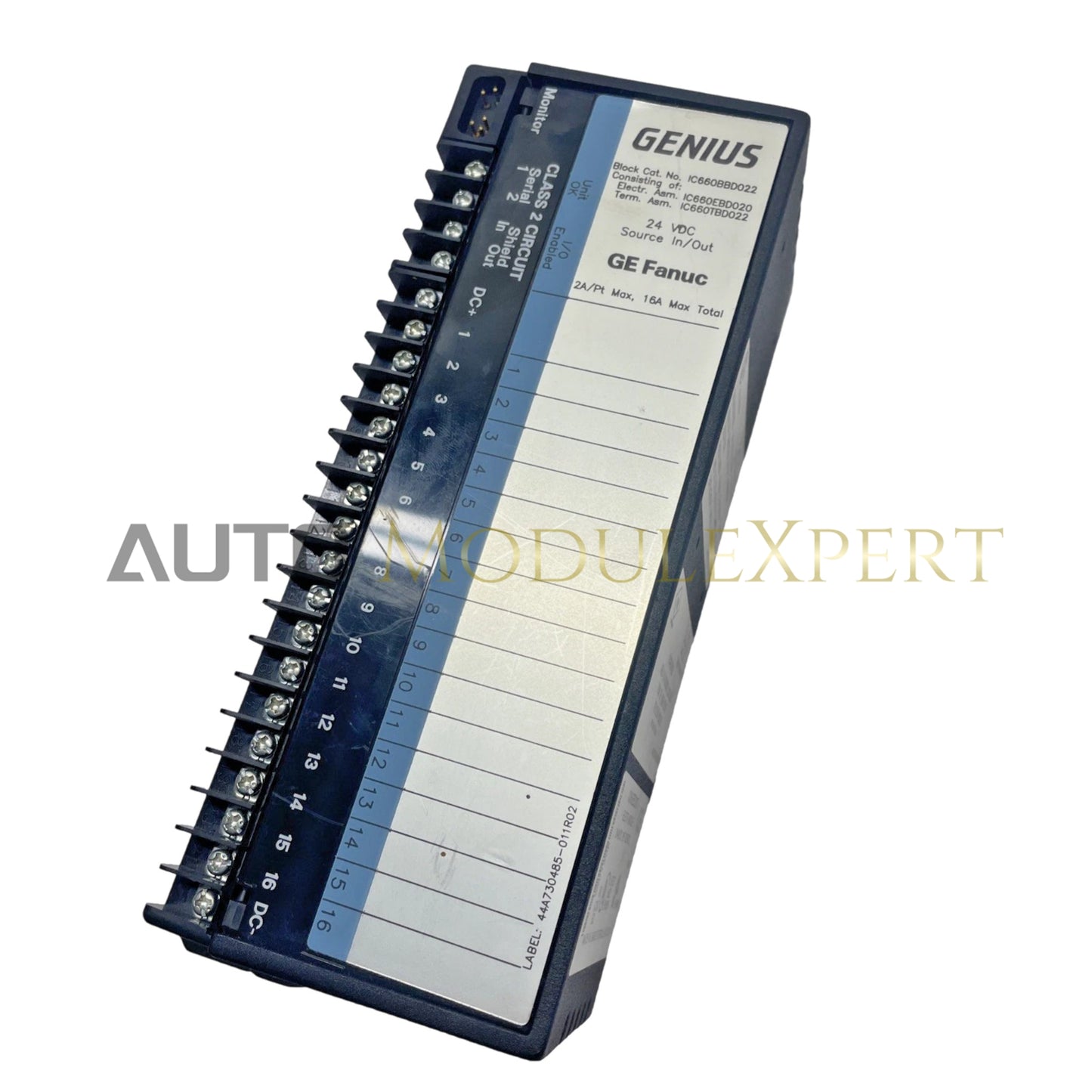

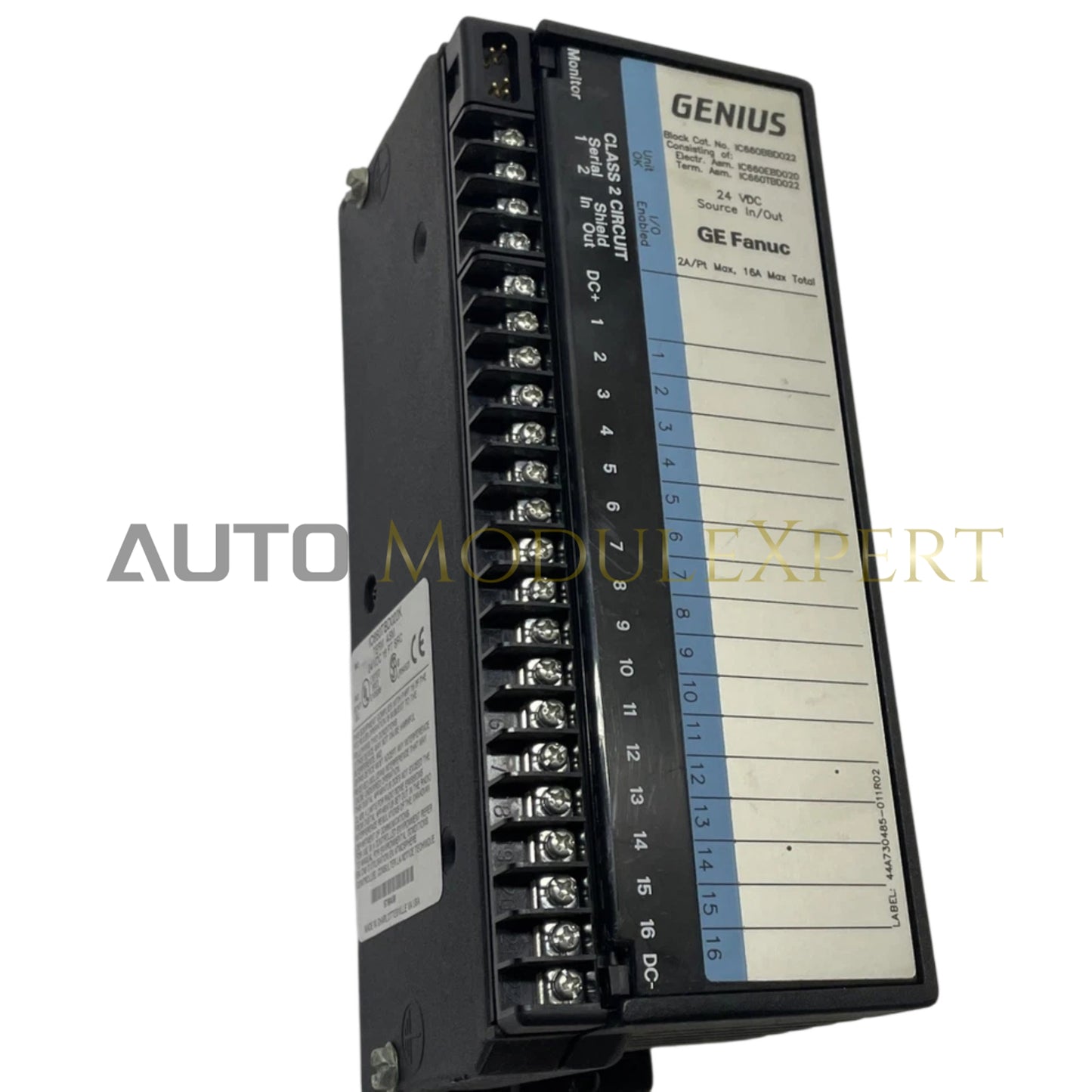

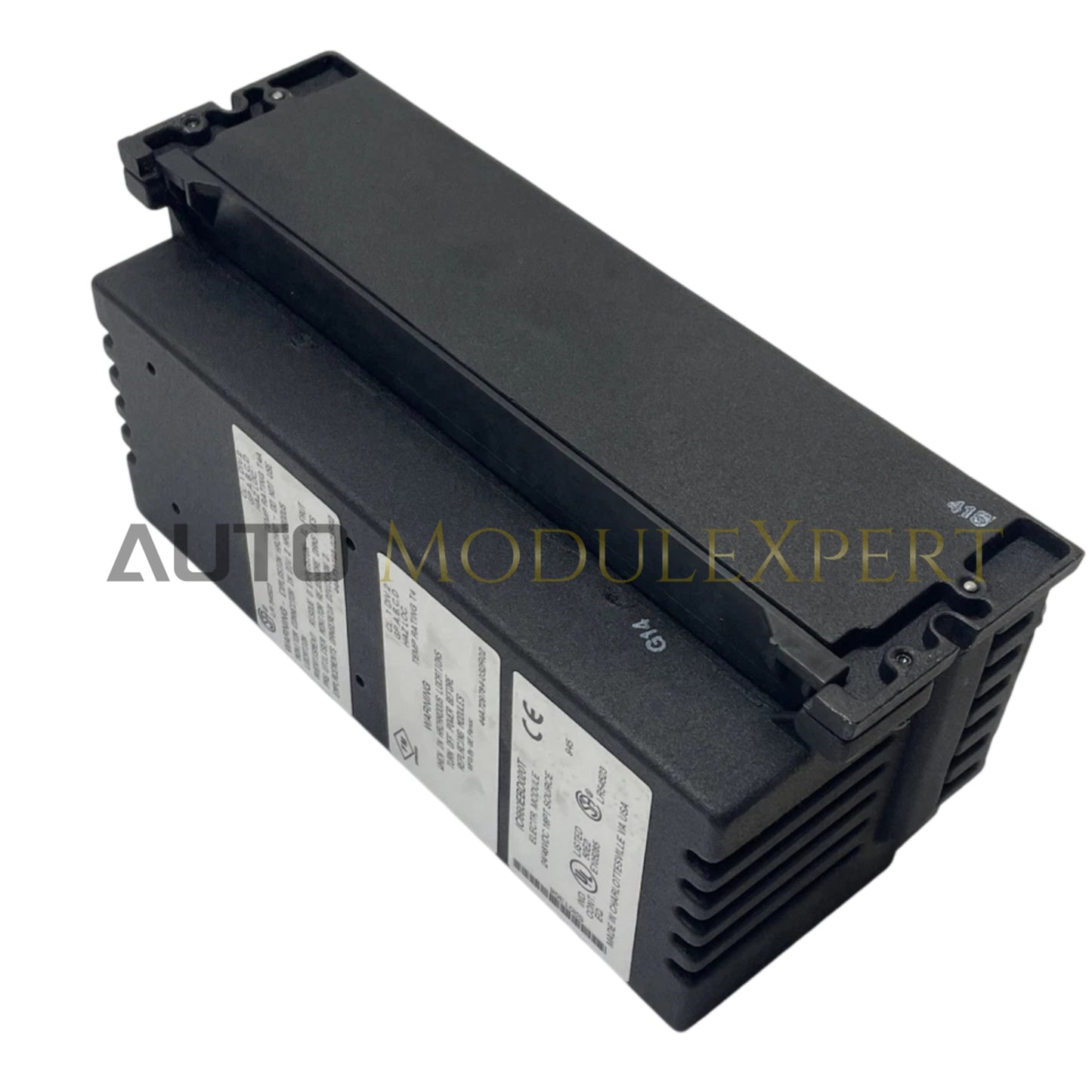

The General Electric IC660BBD022, also cataloged as the IC660BBD022 (6240BP10411) I/O Module, operates as a dedicated hardware component for discrete signal interfacing within Genius I/O network architectures.

Hardware Specifications

Genius I/O Network Communication

The IC660BBD022 is engineered for seamless data exchange across Genius I/O serial buses. In complex control environments, the module's ability to maintain deterministic network timing is governed by the bus baud rate and the configured I/O scan settings. Firmware flash compatibility is required to ensure the module adheres to the latest communication protocols for diagnostic reporting and block-transfer functionality. Proper I/O density scaling within the rack is managed via the module's internal logic, which processes field-side states and propagates them to the host PLC or controller over the serial link, ensuring reliable signal status reflection.

Frequently Asked Questions

Q: Is this module compatible with standard Genius I/O bus configurations?

A: Yes, the IC660BBD022 is designed to operate within the Genius I/O network. Ensure that the bus address and baud rate switches are correctly configured to match the network topology.

Q: Can the module be configured for diagnostics via the host PLC?

A: Yes, the module supports diagnostic reporting including open/short circuit detection and fault status bits, which can be monitored directly by the host controller's logic program.

Q: What is the procedure for updating module firmware?

A: Firmware updates must be performed using a compatible programming device or maintenance tool connected to the Genius I/O network or the local serial port, ensuring no process disruptions occur during the flash process.

Field Installation Guidelines

• Mounting: Secure the module to the designated mounting plate. Ensure that the module is correctly aligned with the Genius I/O block connectors to maintain reliable serial link connectivity.
• Network Cabling: Use shielded twisted-pair cabling for the Genius I/O bus. Ensure that the bus is properly terminated at both physical ends with the correct resistance to prevent signal reflections and data loss.
• Grounding and Shielding: Terminate the shield of the network cable to the designated grounding lug on the module block. Maintain separation between network communication wiring and high-voltage power lines to mitigate electromagnetic interference.
• Thermal Management: Given the module's construction, ensure adequate clearance for heat dissipation within the control cabinet to maintain operational longevity.
