Product Overview

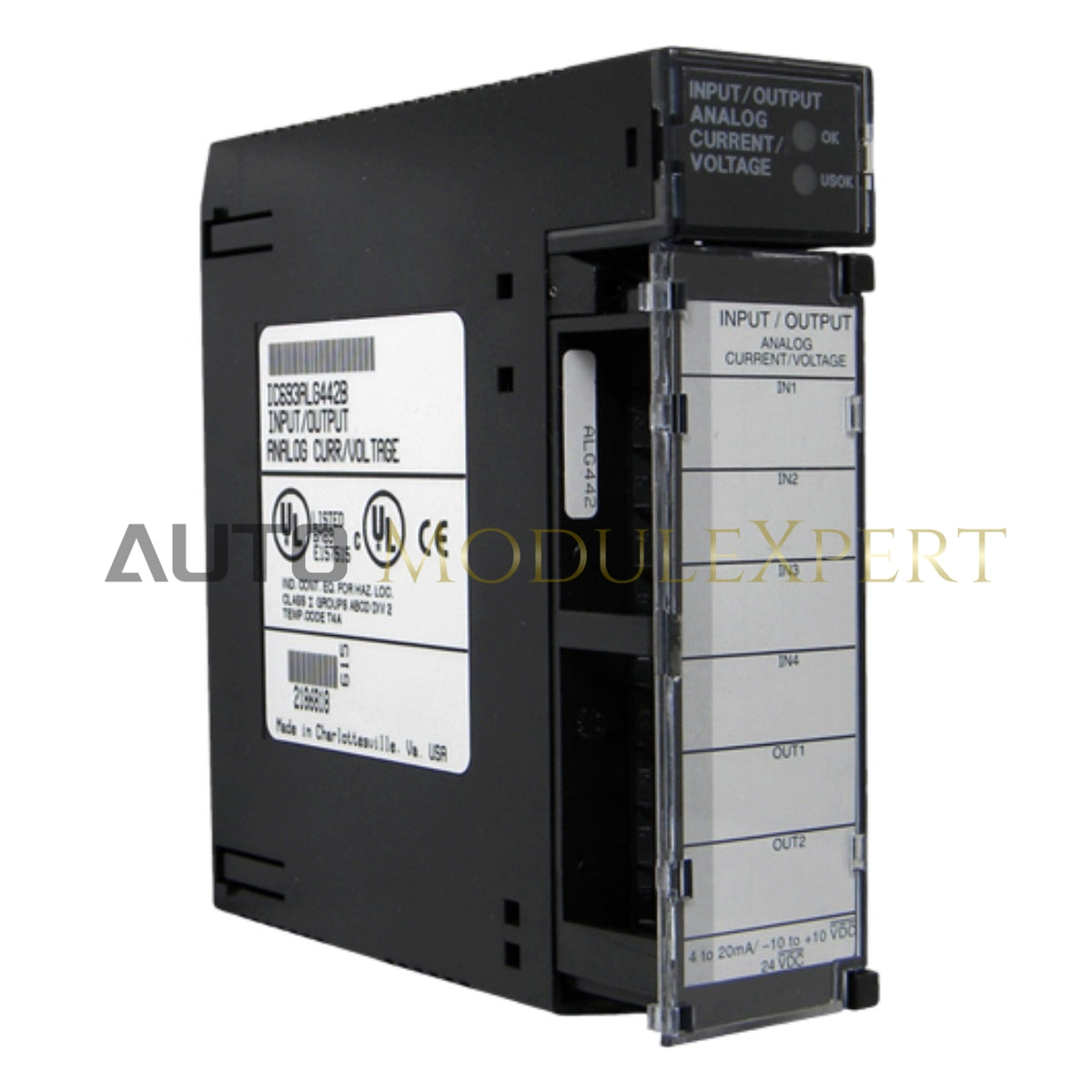

The IC693ALG442 is a versatile analog combination module designed for the GE Fanuc Series 90-30 PLC system. It integrates both input and output functions in a single-slot design, providing four analog input channels and two analog output channels.
The module supports a wide range of industrial signal types, including 0 to +10V, -10 to +10V, 0 to 20mA, and 4 to 20mA, making it ideal for interfacing with transmitters, actuators, and control devices. We supply this unit as 100% Brand New and original, ensuring high-precision signal conversion for critical process control applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 4 Differential |
| Output Channels | 2 Single-Ended |
| Input Voltage Ranges | 0 to +10V, -10 to +10V |
| Input Current Ranges | 0 to 20 mA, 4 to 20 mA |
| Update Rate | 3 ms (all channels) |
| Input Filter Response | 38 Hz |
| Input Impedance | 250 Ω (current mode) |
| External Power Requirement | 20 to 30 VDC (24 VDC typical) |
| Internal Power Consumption | 95 mA from +5V bus |
| Weight | 0.5 kg |
Engineering Advantages
Reduces Hardware Footprint
Combining 4 AI and 2 AO channels in a single module conserves backplane slots, ideal for compact systems and machine-level automation.
High Signal Fidelity
Excellent power supply rejection (5 µA/V for current, 25 mV/V for voltage) ensures stable and accurate signal processing despite external supply fluctuations.
Flexible Channel Configuration
Each channel is independently configurable for voltage or current, allowing mixed signal types within the same module.
Fast Response for Dynamic Control
A 3 ms update rate supports real-time monitoring and high-performance PID control loops in demanding applications.
FAQs
Does this module require external power for analog outputs?
Yes. A 24 VDC external power supply is required at the terminal block to drive output circuits and maintain isolation.
Can voltage and current signals be mixed?
Yes. Each channel can be individually configured for voltage or current operation.
What happens if external power is lost?
The module reports a “Loss of User Supply” fault to the CPU, and outputs typically fall to minimum values (0V or 0mA).
Is it compatible with PACSystems RX3i?
Yes. It can be used within RX3i systems when installed via compatible Series 90-30 carriers or expansion configurations.
