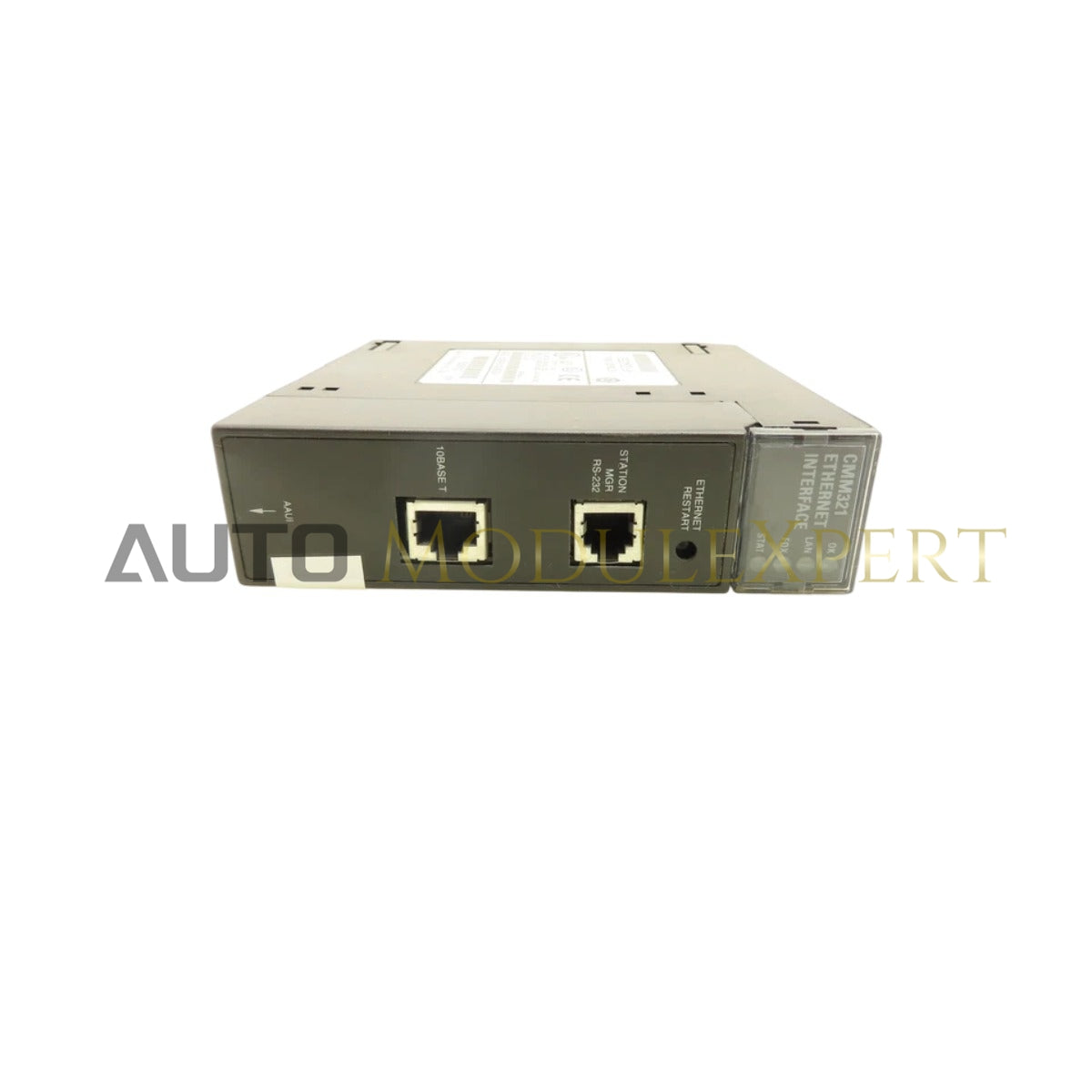

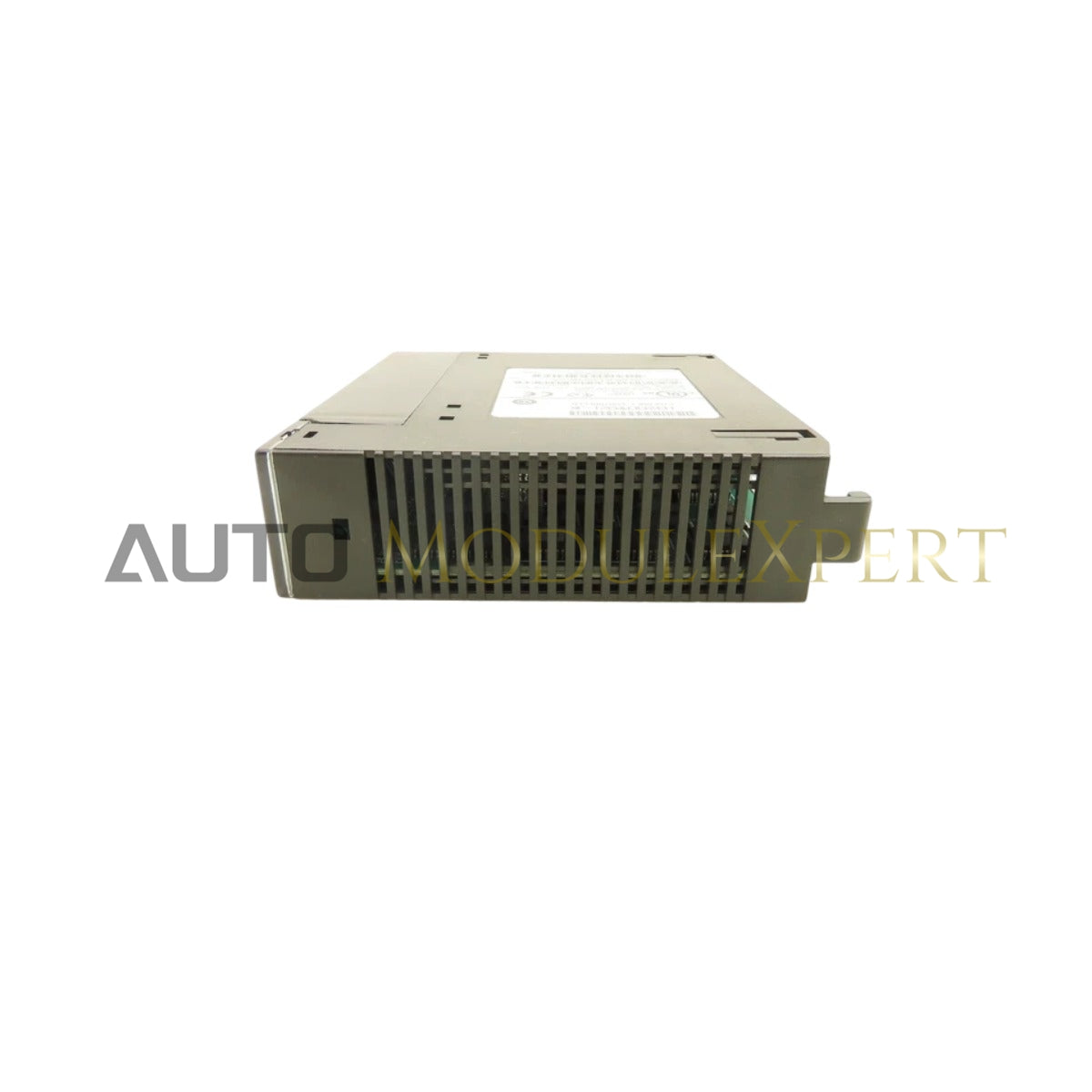

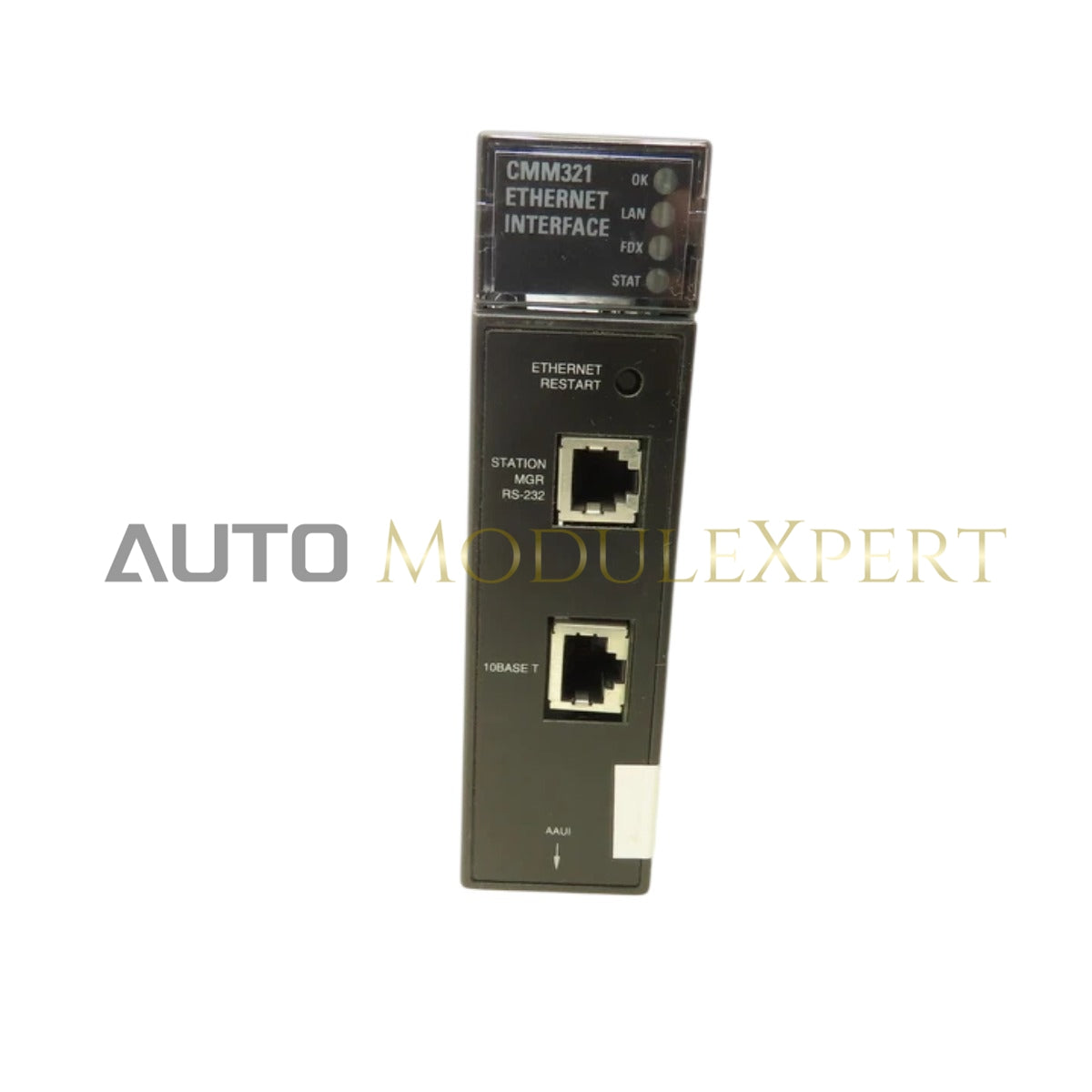

Product Overview
The GE Fanuc IC693CMM321-JK serves as a dedicated Ethernet communication processor for the Series 90-30 PLC platform. This module enables high-speed connectivity between the controller and industrial Ethernet networks, supporting key protocols such as SRTP (Service Request Transfer Protocol) and Ethernet Global Data (EGD). It allows seamless integration between control systems on the plant floor and higher-level enterprise or SCADA systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | GE Fanuc (Emerson) |
| Product Line | Series 90-30 |
| Module Type | Ethernet Interface Module (TCP/IP) |
| Weight | 0.23 kg |
| Data Rate | 10 Mbps |
| Network Port | AAUI (requires external transceiver) |
| Protocols | SRTP, EGD, ICMP, UDP |
Engineering Advantages
Optimized Network Performance
Handles all Ethernet communications independently, ensuring that network traffic does not impact PLC scan time or control performance.
Flexible Connectivity
The AAUI interface supports multiple physical media types (e.g., 10Base-T or fiber) through interchangeable external transceivers.
Simplified Data Sharing
Uses Ethernet Global Data (EGD) to broadcast process data to multiple devices simultaneously, reducing network load compared to polling-based communication.
Remote Diagnostic Capabilities
Supports remote programming, configuration, and diagnostics, enabling engineers to monitor and troubleshoot systems from any LAN-connected workstation.
FAQs
What hardware is required to connect this module to an RJ-45 cable?
A 10Base-T AAUI transceiver is required to convert the AAUI interface to a standard RJ-45 Ethernet connection.
Is the “JK” version compatible with older Series 90-30 racks?
Yes. It is backward compatible and can be installed in any standard I/O slot, provided the CPU firmware supports Ethernet functionality.
Can this module support multiple HMI connections simultaneously?
Yes. It allows multiple concurrent SRTP connections, enabling several HMI or SCADA systems to access PLC data at the same time.
Is this unit new or refurbished?
This product is supplied as 100% brand new in original factory-sealed packaging, ensuring maximum reliability and service life.
