Product Overview

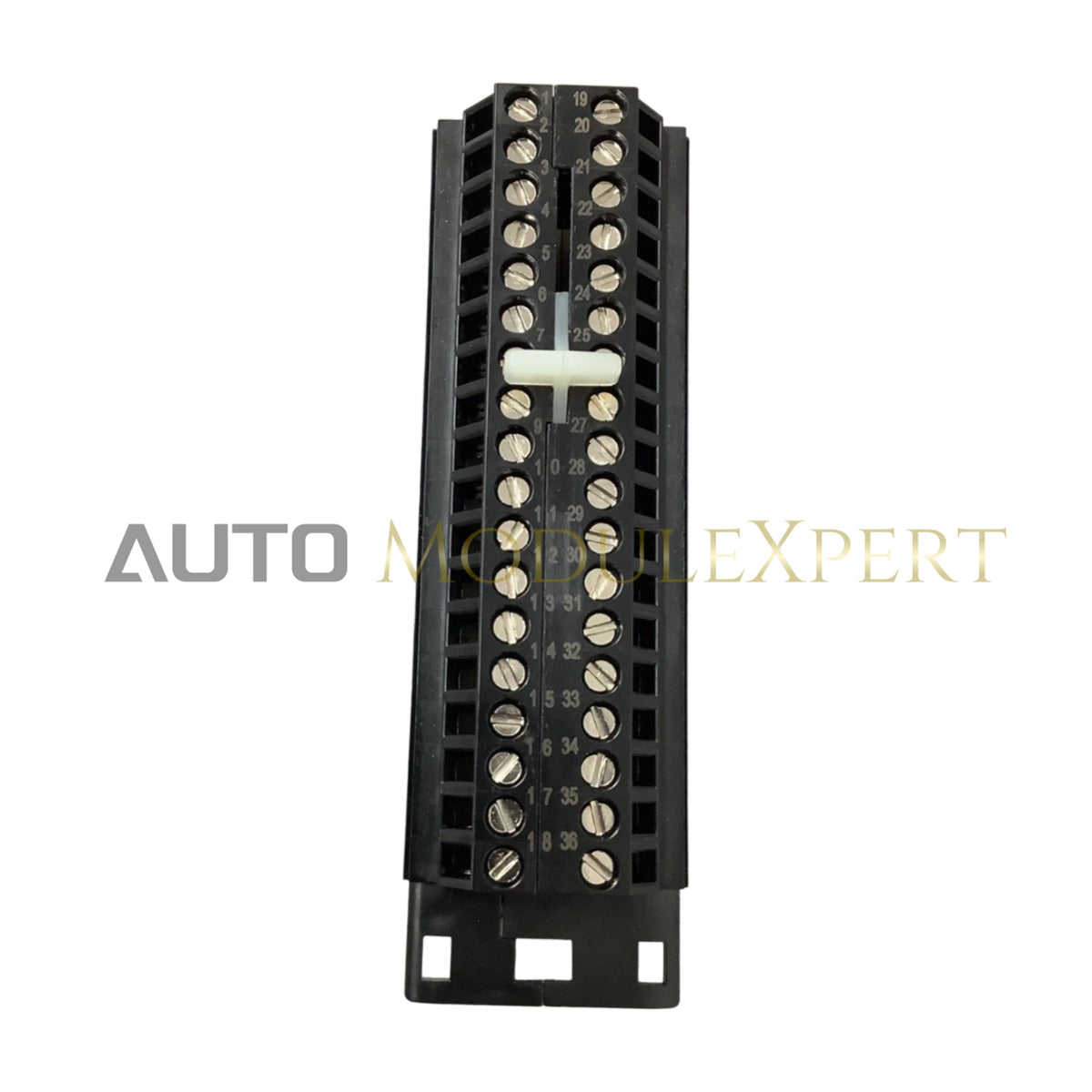

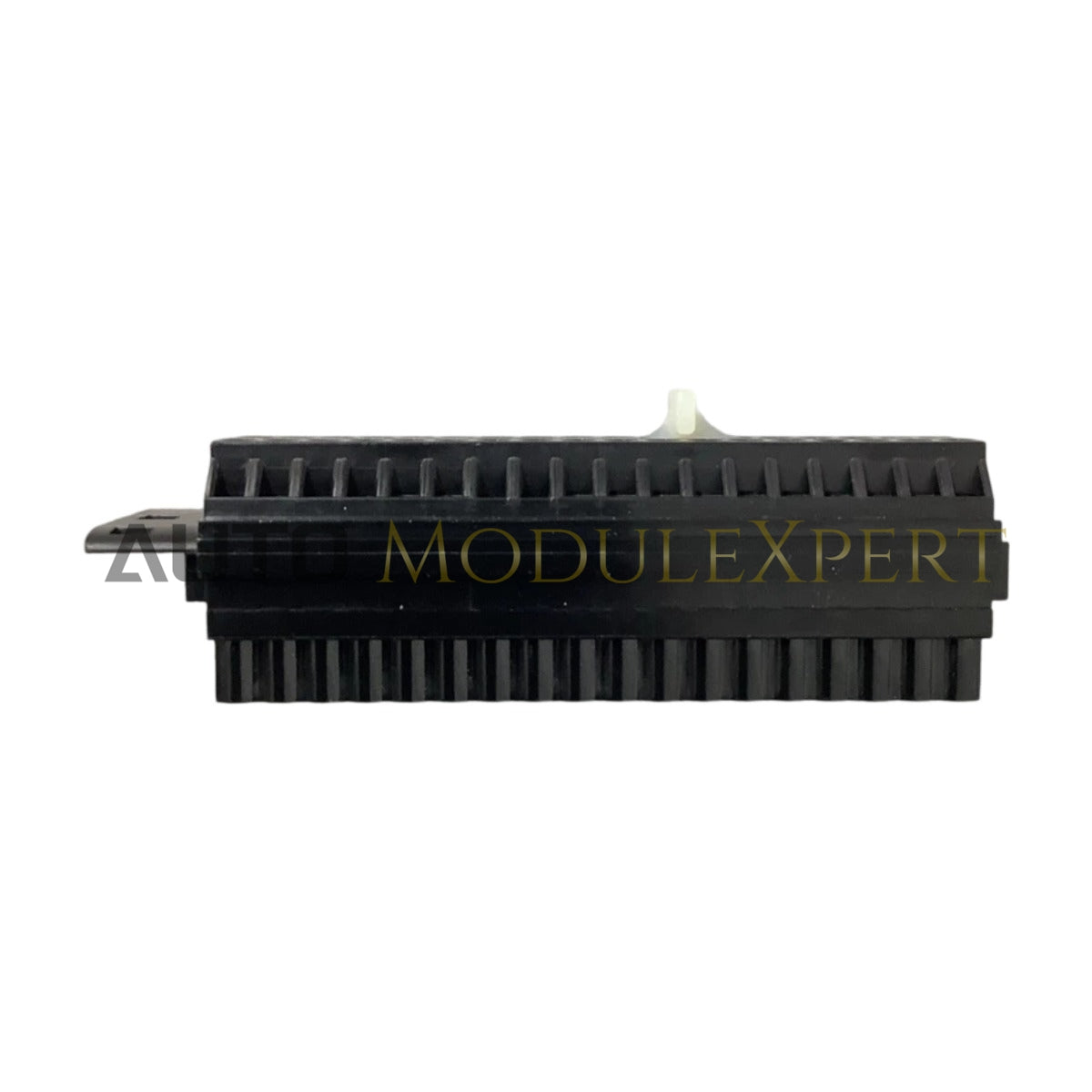

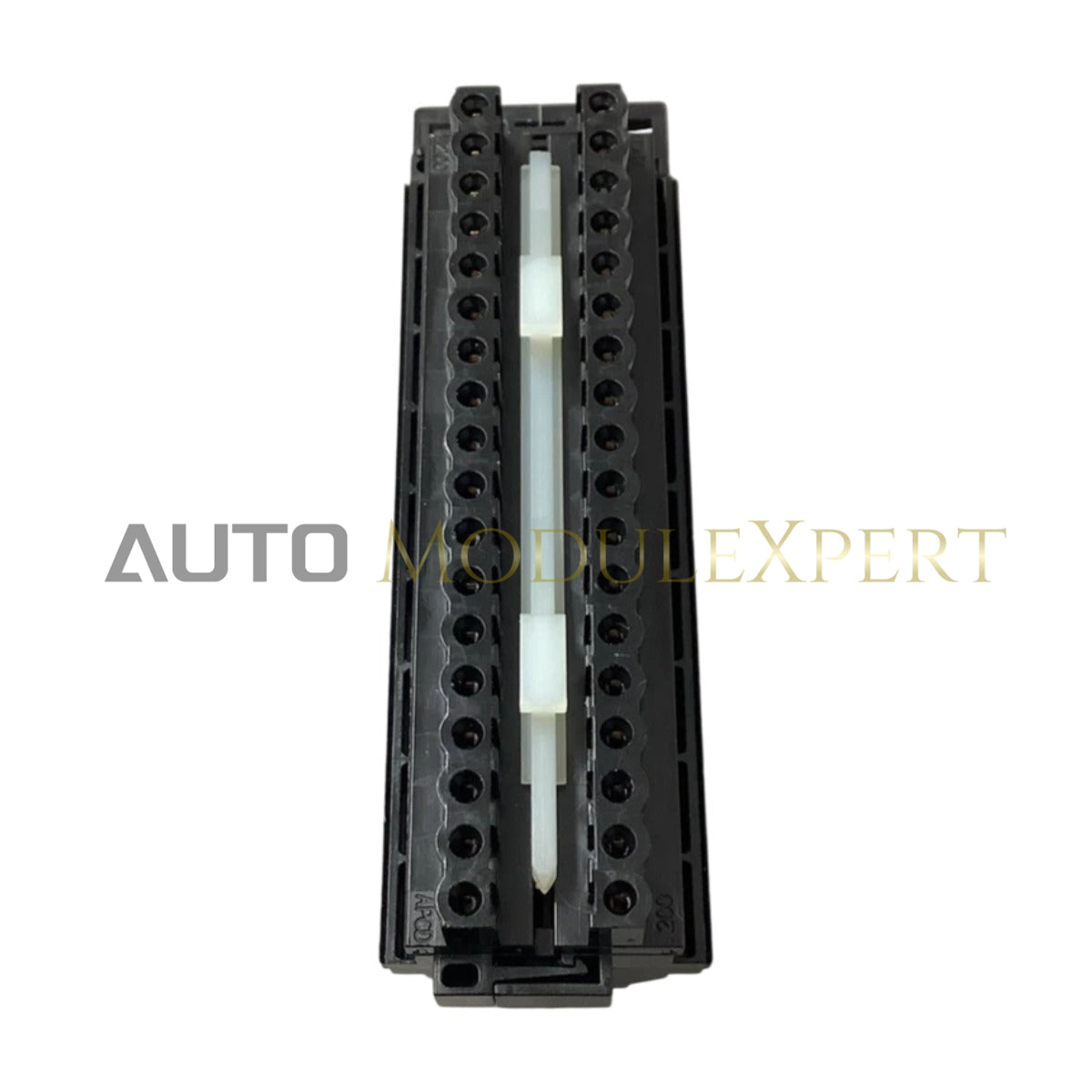

The IC694TBB132 is a high-density extended box-style terminal block for the Emerson (GE Fanuc) PACSystems RX3i platform. It provides 36 screw-type terminals for secure and organized field wiring of I/O modules. The extended-depth design supports larger wire gauges and shielded cables, ensuring reliable cabinet installation. Supplied as 100% Brand New original equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Extended box-style terminal block |
| Terminals | 36 screw terminals |
| Compatibility | RX3i and Series 90-30 I/O modules |
| Wire Range | 14–26 AWG (solid/stranded) |
| Torque | 7 in-lb max |
| Voltage Rating | 250 VAC / 300 VDC |
| Current Rating | 5 A per terminal |
| Operating Temp | 0°C to 60°C |
Engineering Advantages
High-Density Wiring Support
Enables secure termination for complex I/O modules without external distribution blocks.
Extended Depth Design
Provides extra space for shielded or heavy-gauge cables, improving installation flexibility.
Vibration-Resistant Connections
Screw-clamp terminals ensure stable wiring in high-vibration industrial environments.
Improved Labeling & Maintenance
Built-in labeling strip and protective cover simplify commissioning and troubleshooting.
FAQs
Can it be used on any RX3i module?
Only on compatible 36-point I/O modules; pin mapping must match the module design.
Difference between TBB132 and TBB032?
TBB132 has extended depth for larger or shielded wiring; TBB032 is standard depth.
How is it installed?
It attaches via a hook-and-latch mechanism and locks securely onto the I/O module.
