Product Overview

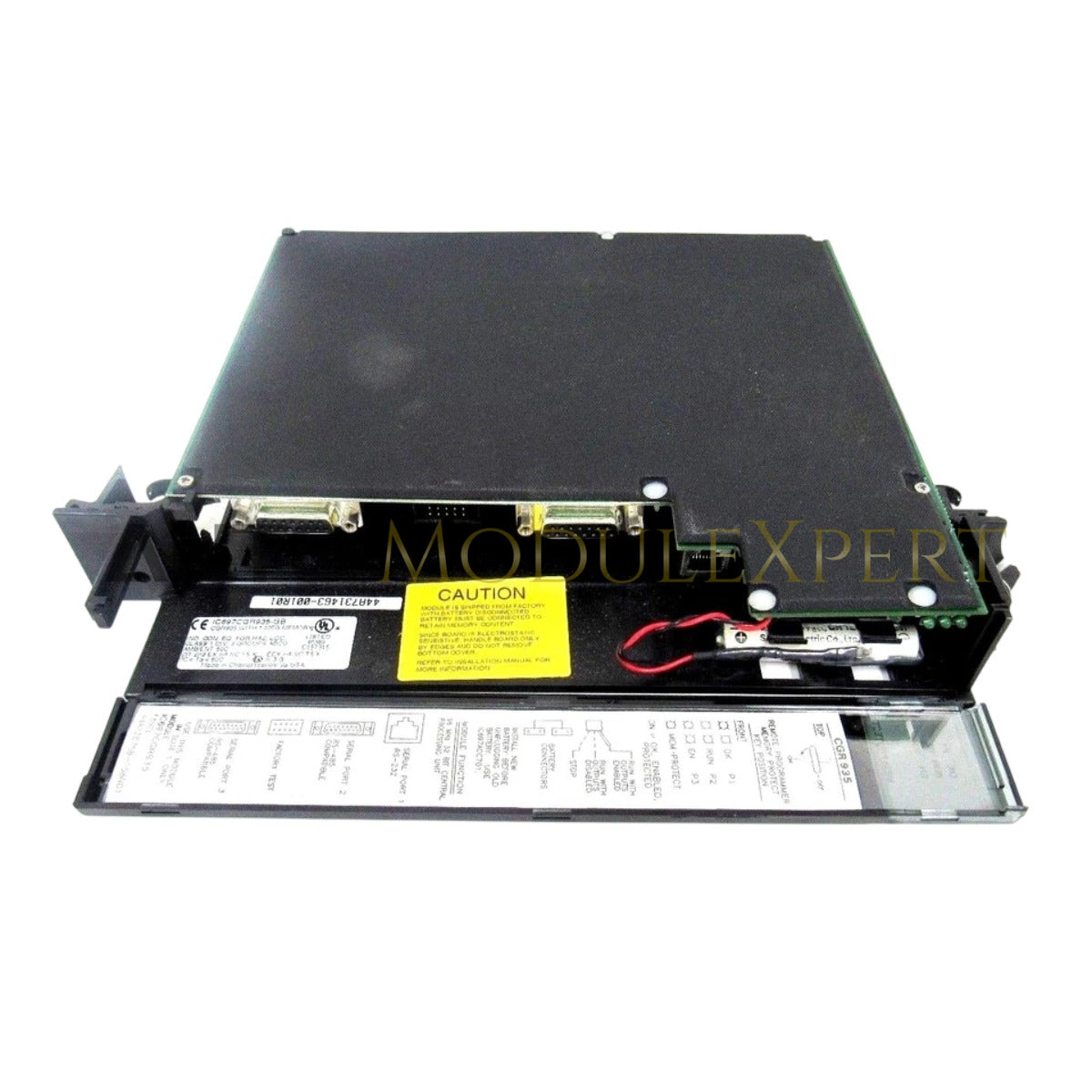

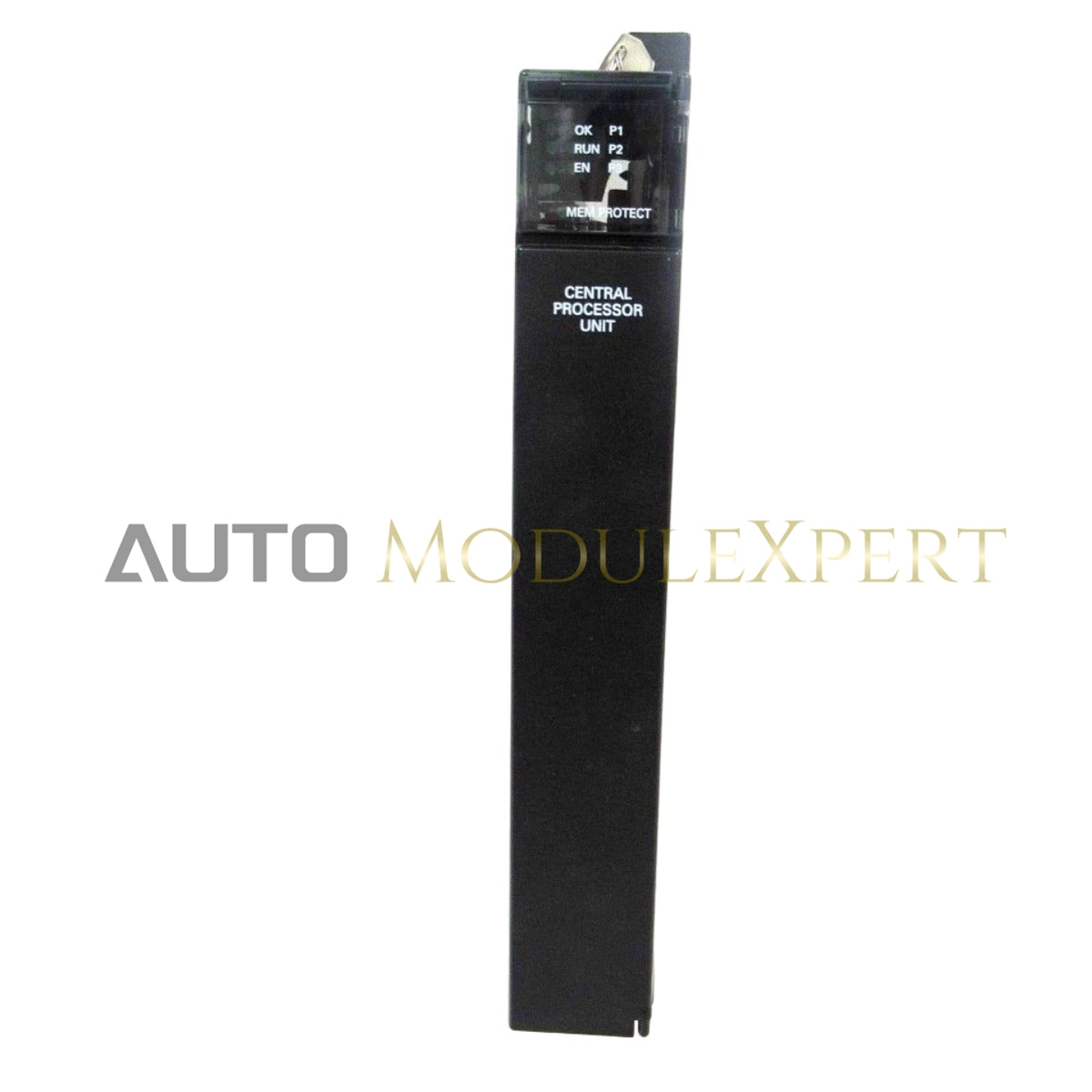

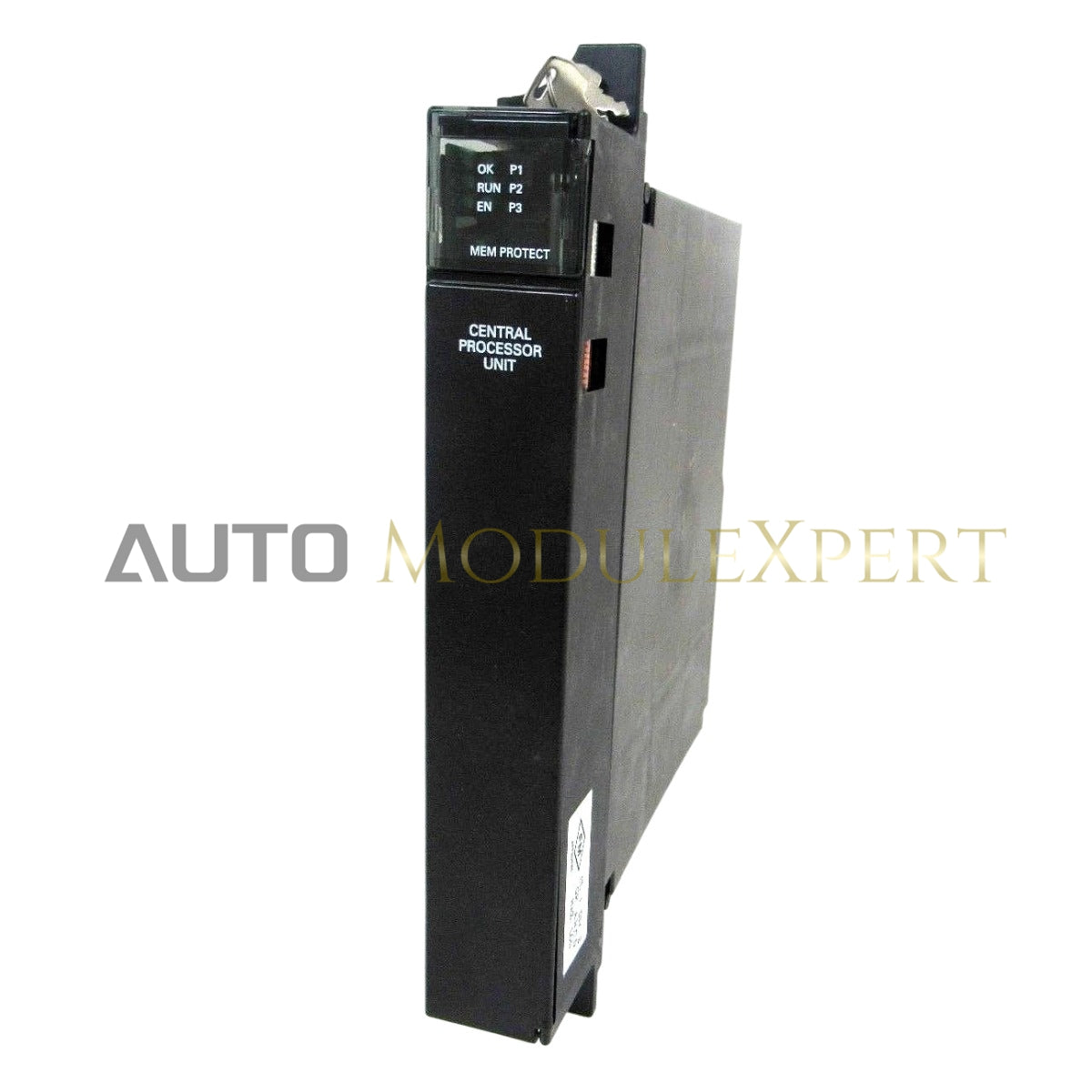

The GE IC697CGR935-GB is a high-performance CPU for the Series 90-70 PLC platform. It uses a 96 MHz Intel 80486DX4 processor to execute large-scale control logic, manage extensive I/O, and support complex industrial automation applications. We supply this unit as 100% Brand New and Original factory stock.
Technical Specifications
| Specification | Details |
|---|---|
| Processor | Intel 80486DX4, 96 MHz |
| User Memory | 1 MB (Flash + battery-backed RAM) |
| Boolean Execution | 0.4 µs per instruction |
| Discrete I/O Capacity | Up to 12,288 inputs / 12,288 outputs |
| Analog Capacity | Up to 8,192 AI / 2,048 AO |
| Register Memory | Up to 12K %R words |
| Floating Point | Supported (CPU integrated) |
| Slot Requirement | Single slot (IC697 90-70 rack) |
| Weight | 0.3 kg |
Engineering Advantages
High-Speed Processing
96 MHz CPU delivers sub-microsecond instruction execution, suitable for fast packaging, sorting, and motion control applications.
Large-Scale I/O Handling
Supports very high I/O counts, enabling centralized control of large industrial plants and reducing the need for multiple PLCs.
Integrated Floating-Point Math
Built-in math capability allows direct handling of PID control, scaling, and process calculations without external modules.
Reliable Memory Architecture
Battery-backed RAM and Flash memory ensure program retention and stable operation during power interruptions.
FAQs
What software is used?
Compatible with Proficy Machine Edition (PME) and legacy Logicmaster 90-70, supporting Ladder Logic and advanced programming options.
Does it need a battery?
Yes. Battery backup (via power supply or backplane system) maintains RAM and real-time clock during power loss.
Can it replace older Series 90-70 CPUs?
Yes, in most cases it can upgrade earlier models, but backplane and power requirements must be verified.
What does the front switch do?
It controls CPU mode: Run (outputs enabled), Run (outputs disabled), and Stop for safe maintenance and commissioning.
