Description

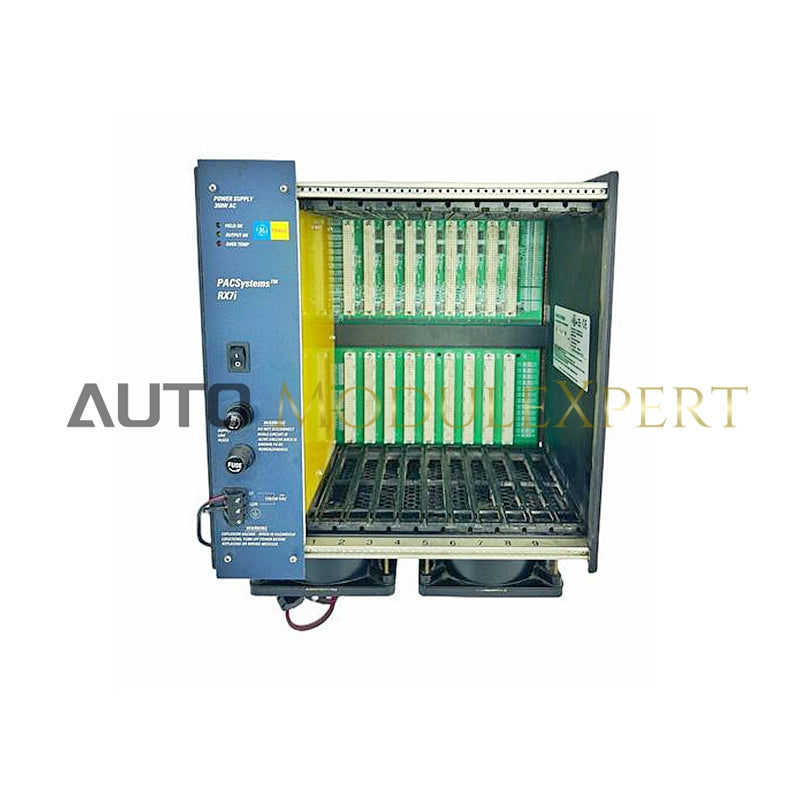

The IC698CHS009 is a 9-slot rack from GE Fanuc, designed for front or rear mounting in RX7i or Series 90-70 systems. It supports single- and double-width modules, with Slot 0 reserved for power supplies and Slot 1 for CPUs.
Rack Configuration
-
Slots: 9 total (Slot 0: Power Supply, Slot 1: CPU)
-
Module Spacing: 0.8 in (20.3 mm) per connector
-
Module Support: Single-width (1 slot), double-width (2 slots)
-
Mounting: Front or rear panel
Functionality
-
Slot Sensing: Automatic I/O module addressing
-
Bus Management: Daisy-chained interrupt and grant signals
-
Connector: J2 with 64-bit/cycle transfer capability
-
Compatible Modules: RX7i and Series 90-70
-
Power Supply Compatibility: RX7i power supplies supported
Cooling Requirements
-
Fan Requirement: Mandatory for modules IC698CPE020, IC698CRE020, IC698PSA350
-
Cooling Space: Extra 9 in (23 cm) required between racks
-
Fan Options:
• IC697ACC621: 120 VAC
• IC697ACC624: 240 VAC
• IC697ACC644: 24 VDC
Grounding & EMI Protection
-
Faceplate Screws: Top/bottom screws required for shielding
-
Ground Clips: For Series 90-70 rail contact
-
Rack Grounding:
• Use side-mounted studs and AWG #12 wire
• Connect power supply GND to rack terminal
• Connect rack terminal to earth ground
Physical Dimensions
-
Height: 283 mm (11.15 in)
-
Width: 320 mm (12.6 in)
-
Depth: 184 mm (7.25 in)
-
Enclosure Requirement: IP54 minimum (open equipment classification)
