Description

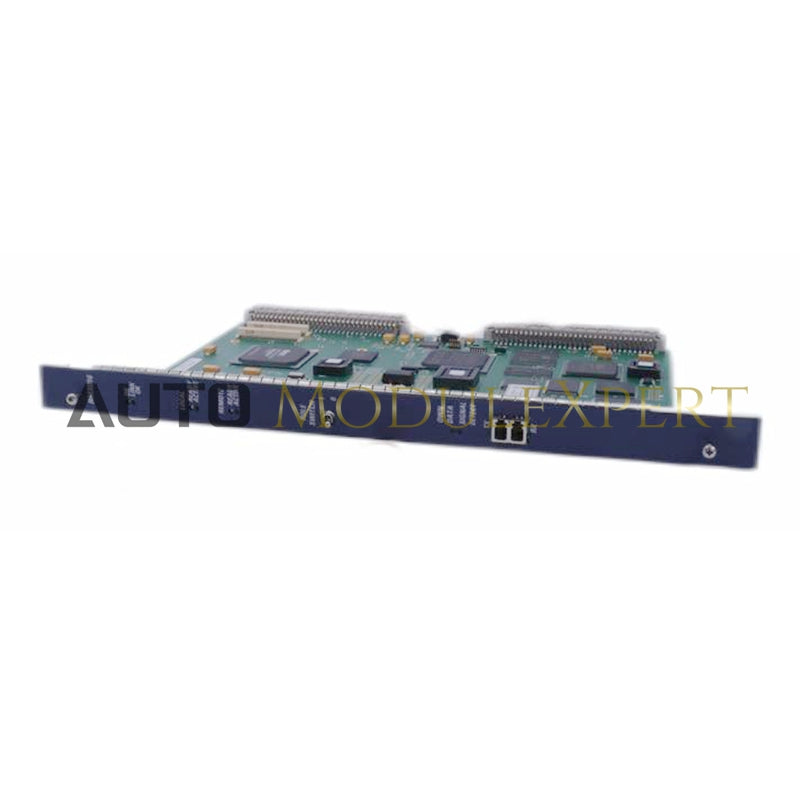

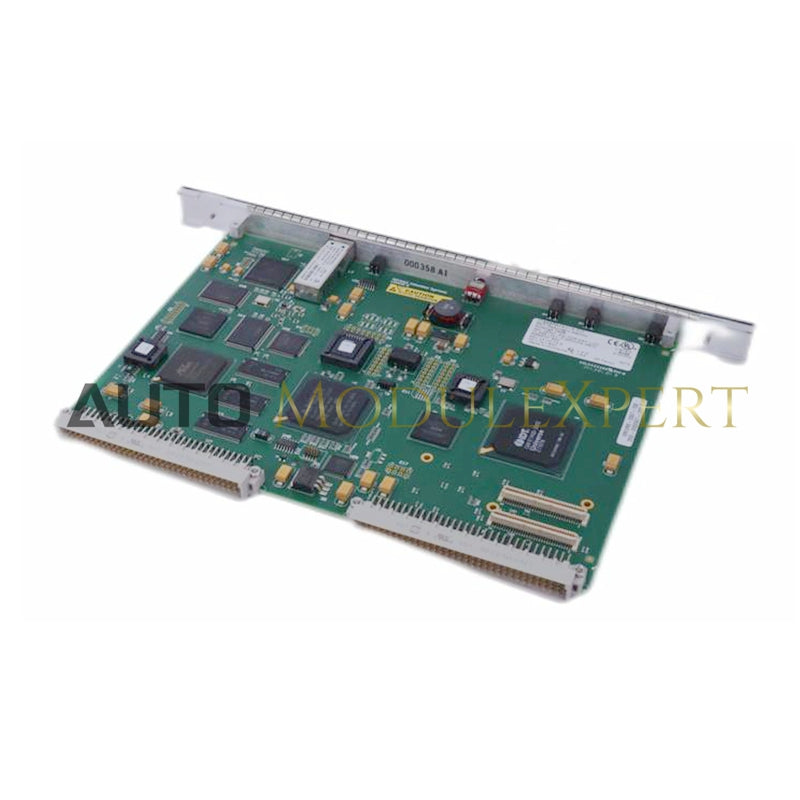

The IC698RMX016 is a 16 MB Redundant Memory Xchange module from GE Fanuc, designed for high-speed data sharing between PACSystems RX7i CPUs via fiber optic networks in reflective memory applications.
Memory & Performance
-
User Memory: 16 MB SDRAM
-
Transfer Type: Reflective memory with optional Redundant Transfer Mode
-
Startup State: Non-configured; requires RX7i CPU configuration to activate
Electrical & Physical
-
Operating Voltage: +5 V DC
-
Current Consumption: 1.8 A
-
Dimensions:
• Width: 6.299 in (160 mm)
• Height: 9.187 in (233.4 mm)
Fiber Optic Interface
-
Connector Type: LC, compliant with IEC 61754-20
-
Ferrule Material: Zirconium ceramic
-
Insertion Loss (Max): 0.35 dB
-
Return Loss: -30 dB
-
Cabling: TX → RX daisy-chained loop among nodes
Environmental Conditions
-
Operating Temperature: -20 °C to +85 °C
-
Installation Note: For EMI compliance with multiple RMX modules, use a conductive metal enclosure
System Requirements
-
CPU Compatibility: RX7i CPU with firmware version ≥ 2.00
-
Software: CIMPLICITY Machine Edition – Logic Developer PLC v4.5+
-
Slot Recommendation: Main Rack (slots 3 and 4 preferred)
-
Power-Off Installation Required
User Configurable Settings
-
Parameters (in non-redundant mode):
• Node ID
• Memory Offset
• Interrupt Enable
• Parity Settings -
Parameters (in redundant mode): Automatically set by CPU
