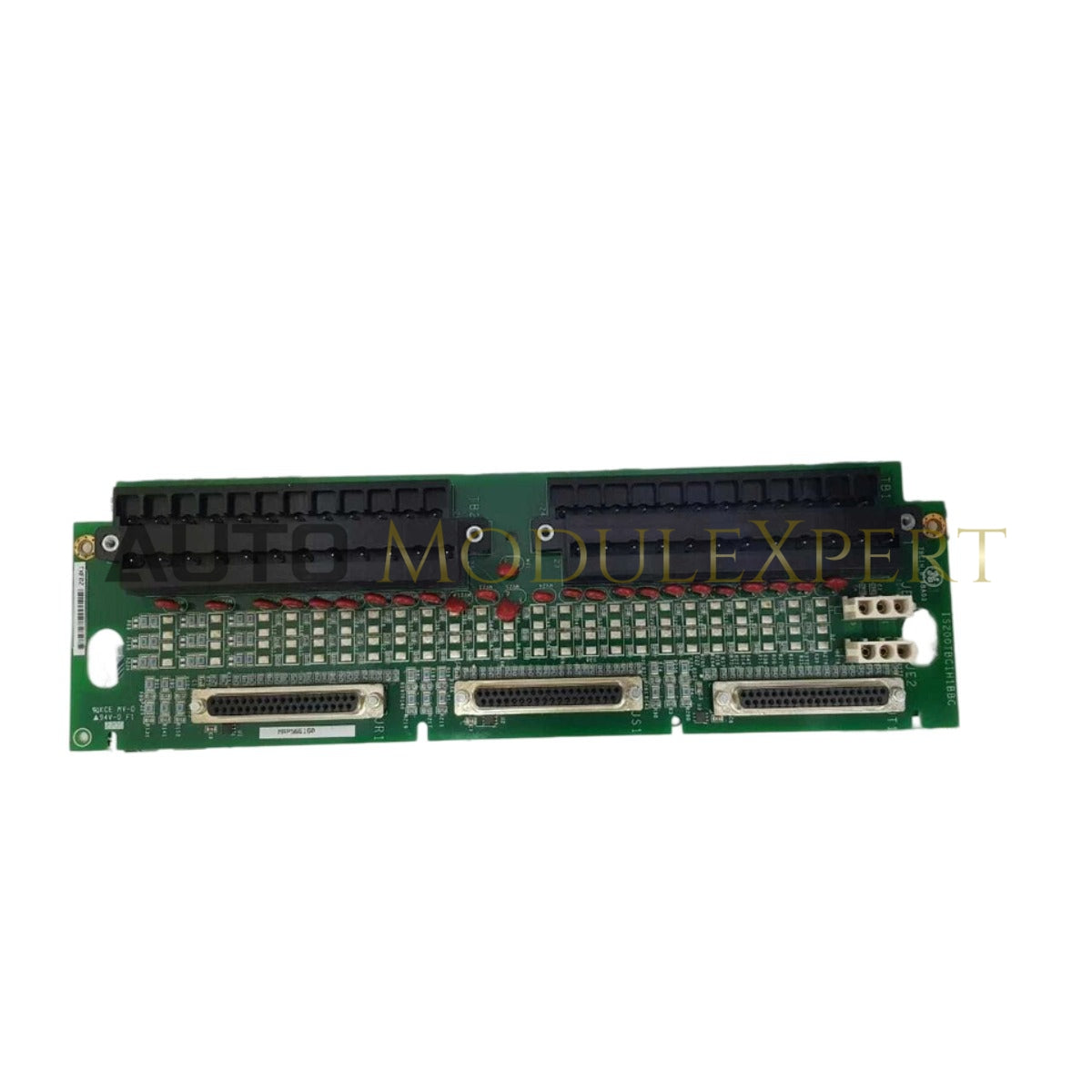

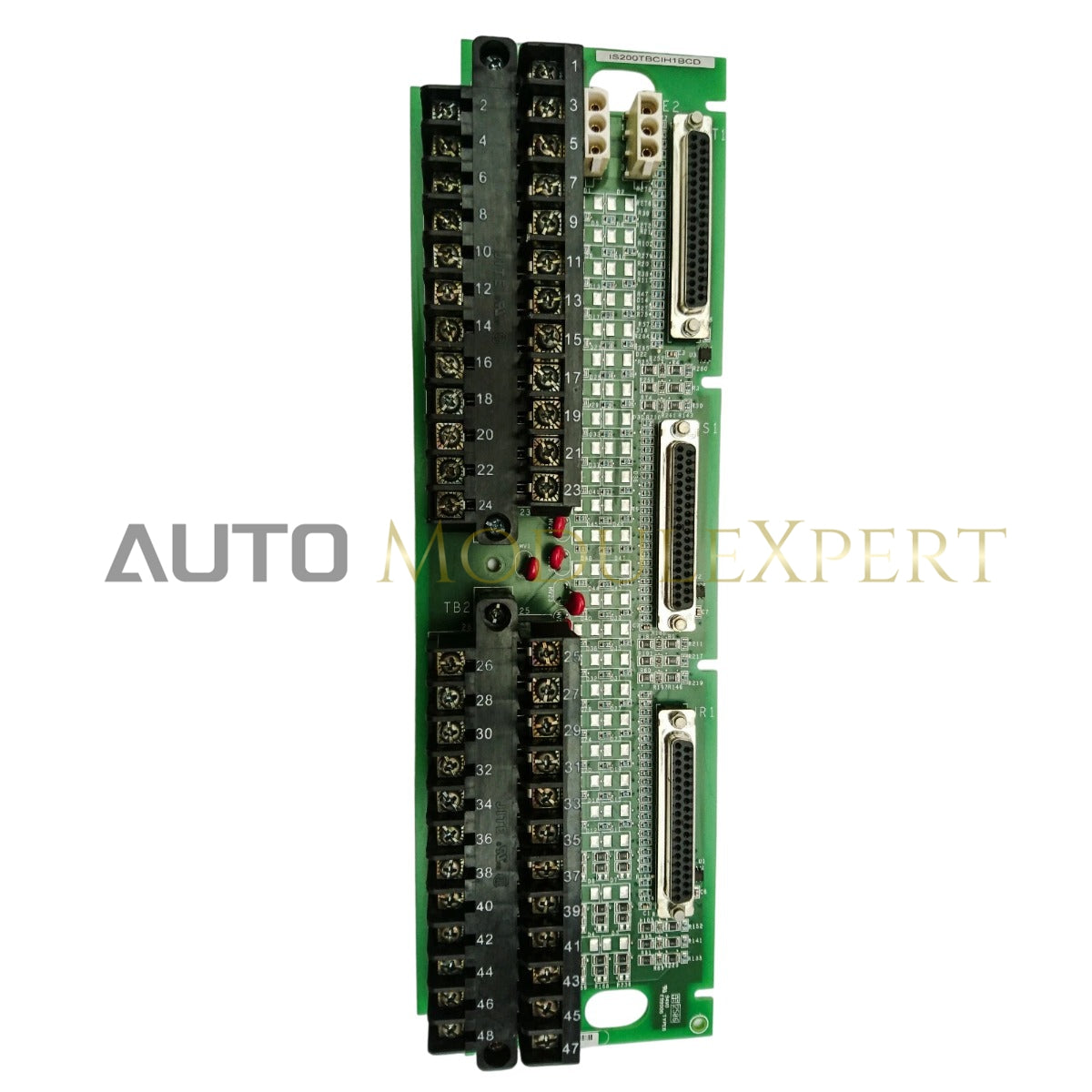

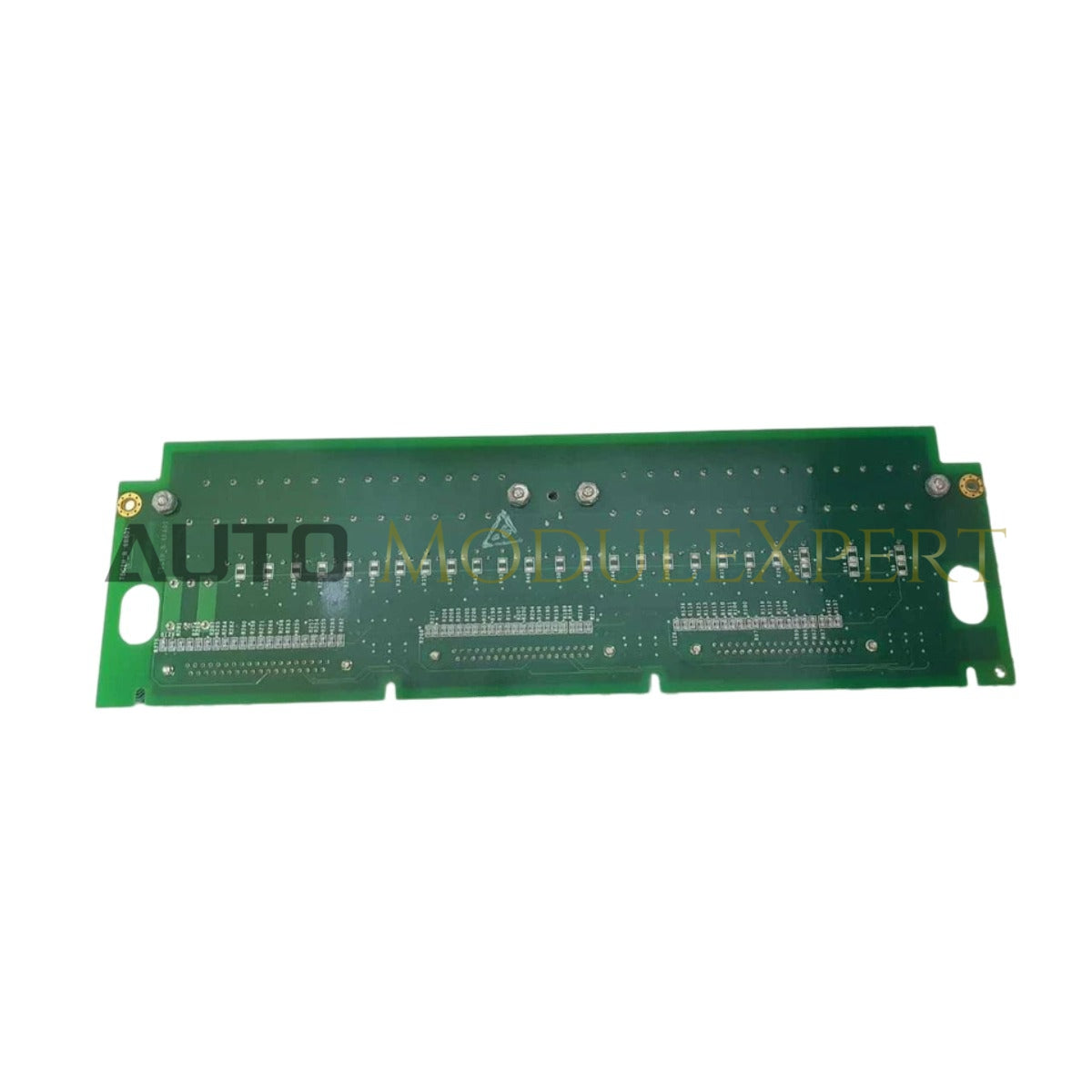

The GE IS200TBCIH1B, also cataloged as the IS200TBCI Terminal Contact Board, operates as a dedicated hardware component for signal termination and interface distribution within Mark VI Speedtronic control system platforms.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The IS200TBCIH1B facilitates stable signal propagation within the Mark VI backplane architecture. As a primary interface board, it ensures deterministic signal transfer by providing low-resistance connectivity between field-side discrete inputs/outputs and the associated I/O packs. The trace layout is engineered to support the signal density required by the Speedtronic platform, ensuring that communication velocity is maintained across the control network without introducing capacitive loading that could degrade high-speed switching performance.

Frequently Asked Questions

Q: Is this terminal board compatible with both simplex and redundant I/O pack configurations?

A: Yes, the IS200TBCIH1B is designed to support the standard Mark VI I/O interface requirements. It functions as the physical entry point for field wiring, regardless of whether the controlling I/O pack is deployed in a simplex or redundant (TMR) architecture.

Q: Does the board require specific shielding considerations for discrete I/O?

A: Proper noise immunity requires that all field cabling shields be terminated at the designated cabinet grounding lug provided on the board or the associated terminal housing. Failure to maintain a low-impedance ground path can lead to induced common-mode noise on the discrete input lines.

Field Installation Guidelines

• Verify that all associated control loops are de-energized and that power is removed from the I/O rack prior to the installation or replacement of the terminal board.
• Ensure the board is firmly seated in the mounting chassis; secure all retaining screws to provide mechanical stability and proper electrical bonding to the system ground.
• Verify wiring integrity by performing a point-to-point continuity check from the field termination block to the I/O pack connector before commissioning.
• Organize incoming field conductors using cable ties to prevent mechanical stress on the terminal connectors, as vibration may lead to intermittent contact issues over time.
• Confirm that no debris, such as wire clippings or insulation remnants, remains on the board surface, as this could lead to localized short circuits in the high-density contact areas.
