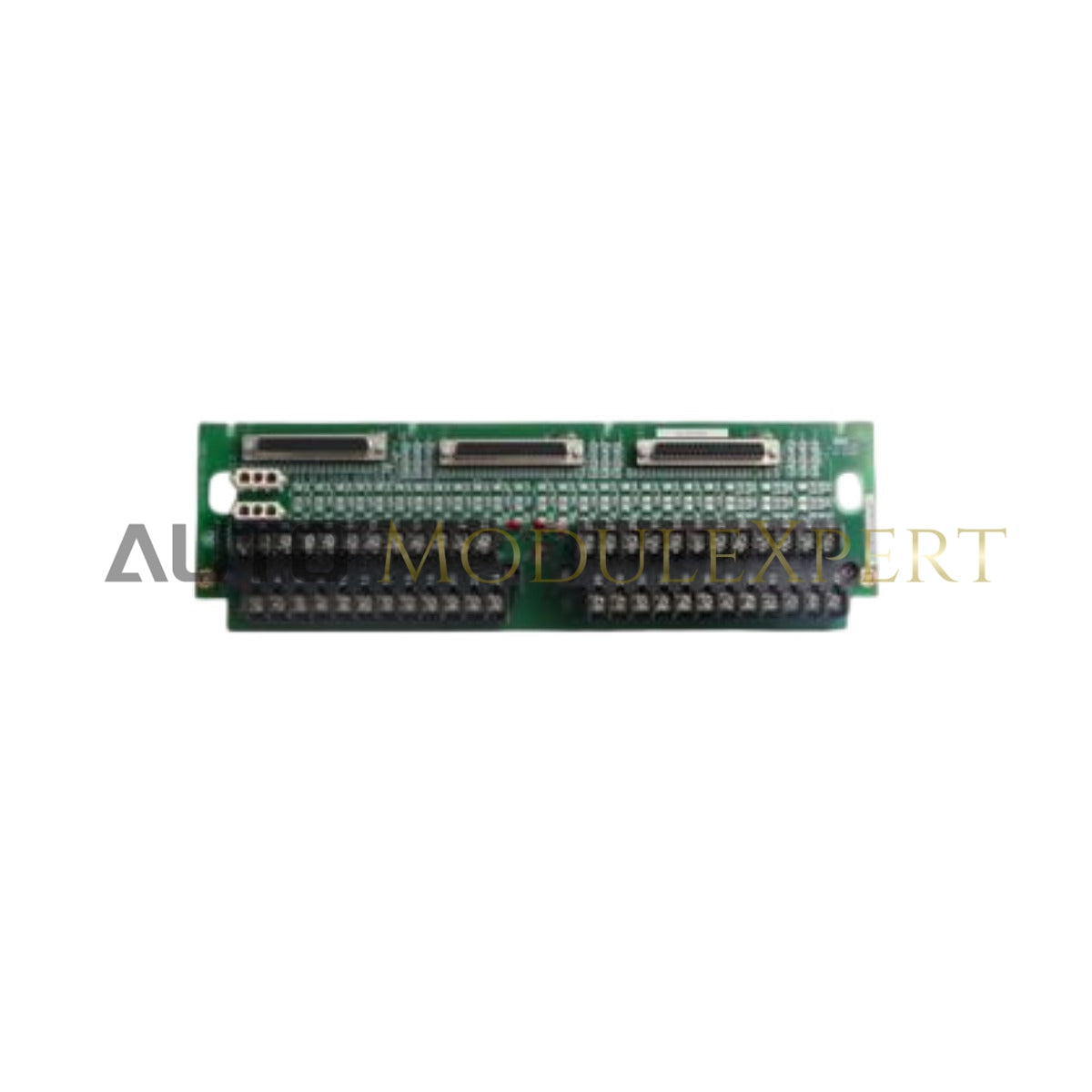

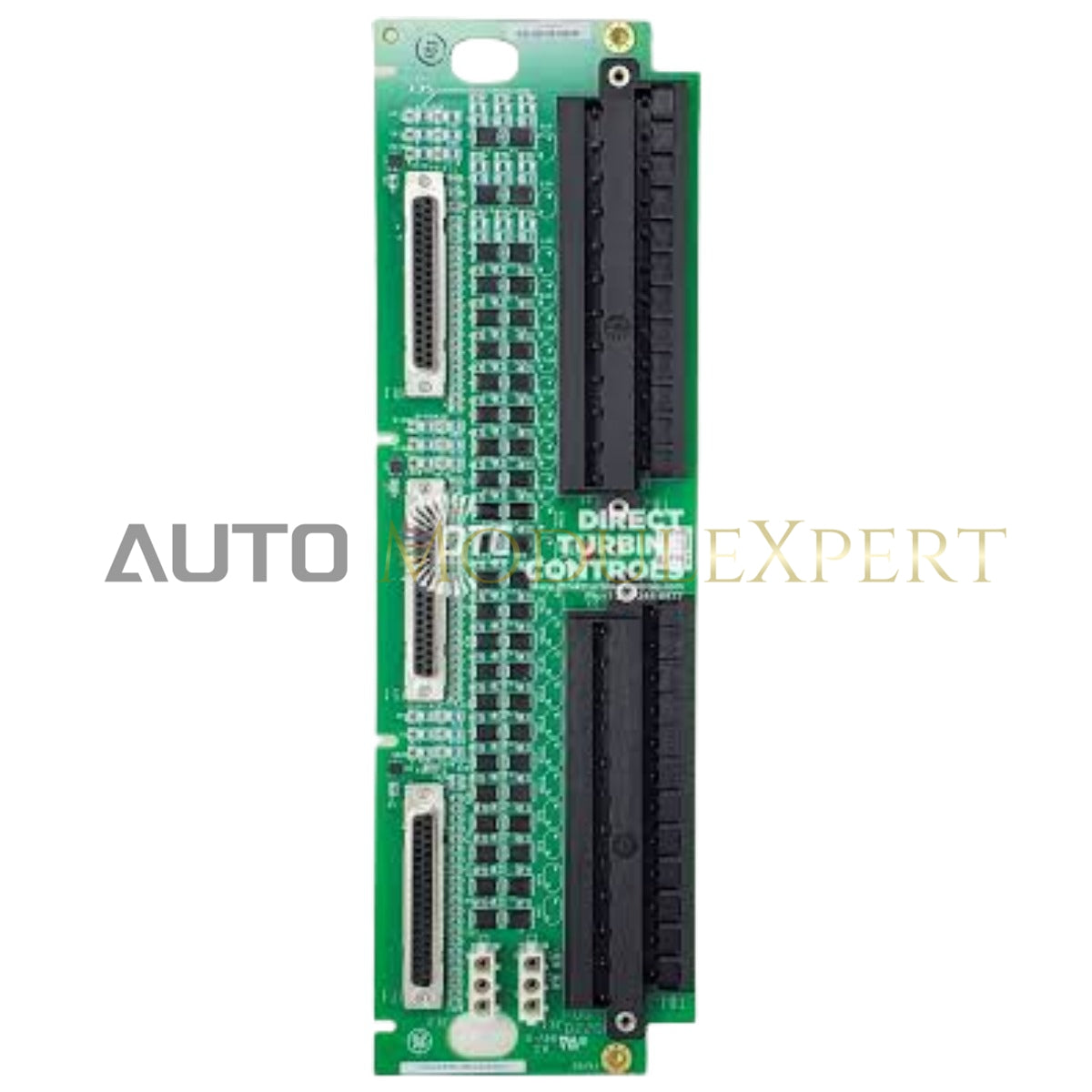

Configured for analog signal termination and field wiring interfacing in Mark VI control systems, the General Electric IS200TBCIH1BBC (IS200TBCIH1B Terminal Board) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
- IS200TBCIH1B: Base terminal board identifier for analog I/O signal routing.
- IS200TBCIH1BBC: Specific assembly iteration featuring modified terminal interface layout and improved connector keying for I/O signal integrity.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200TBCIH1BBC |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.54 kg |
| Dimensions | 33 cm x 10.2 cm x 4.8 cm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Passive (Loop powered) |
| Mounting Type | DIN-rail / Panel mount |
| I/O Density | 24-channel analog termination |
Profinet / EtherNet/IP Deterministic Networks
The IS200TBCIH1BBC functions as a passive interface board, facilitating the transition from field-side wiring to the controller I/O pack. Signal integrity is maintained via high-density terminal blocks that minimize impedance mismatch, ensuring that analog signals (e.g., 4-20 mA, 1-5 VDC) are transmitted to the I/O pack with minimal attenuation. The board supports consistent signal paths required for turbine regulation, ensuring that the backplane-connected controller receives precise voltage references across the deterministic network architecture.
Frequently Asked Questions
Q: Does this terminal board require external power to operate?
A: No. The IS200TBCIH1BBC is a passive termination component. Power for the connected I/O pack and signal loops is supplied directly through the controller backplane or the associated I/O processor.
Q: Is the terminal board pin-compatible with older IS200TBCI versions?
A: Generally, yes. However, verify the revision suffix (e.g., H1B versus H1BBC) against the existing control cabinet wiring diagram, as terminal positioning and physical keying may vary between specific sub-revisions.
Field Installation Guidelines
- Ensure all field wiring is de-energized before connecting wires to the terminal blocks.
- Secure the terminal board to the mounting plate using the provided stand-offs to ensure adequate chassis grounding.
- Strip wire insulation to the length specified by the terminal block gauge to prevent exposed copper.
- Route field cables through the cable management ducts to ensure no mechanical tension is applied to the board connectors.
- Apply shielding drain wires to the designated ground terminals on the board to facilitate common-mode noise suppression.
- Verify continuity from the field termination point to the I/O pack connector before commissioning the control loop.
