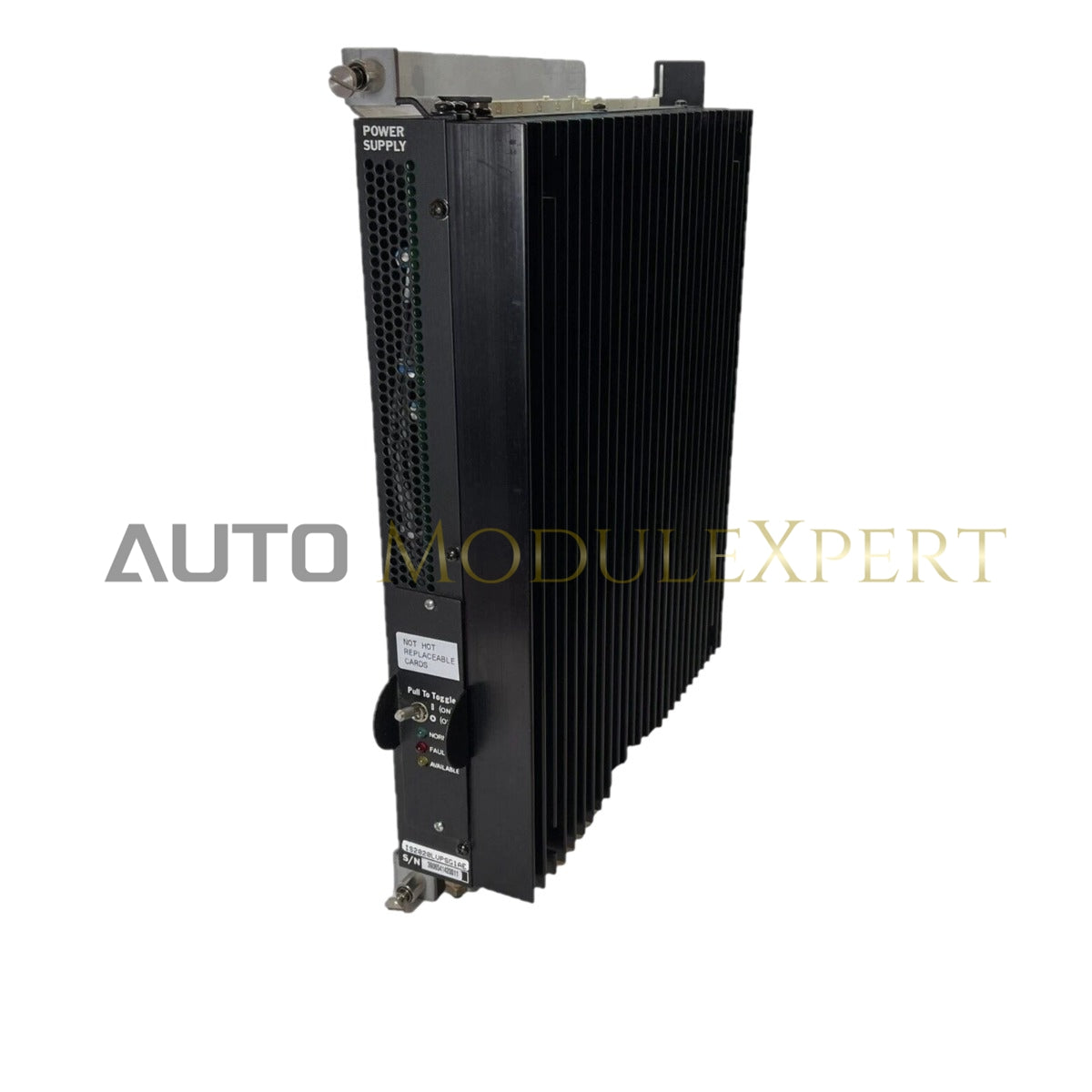

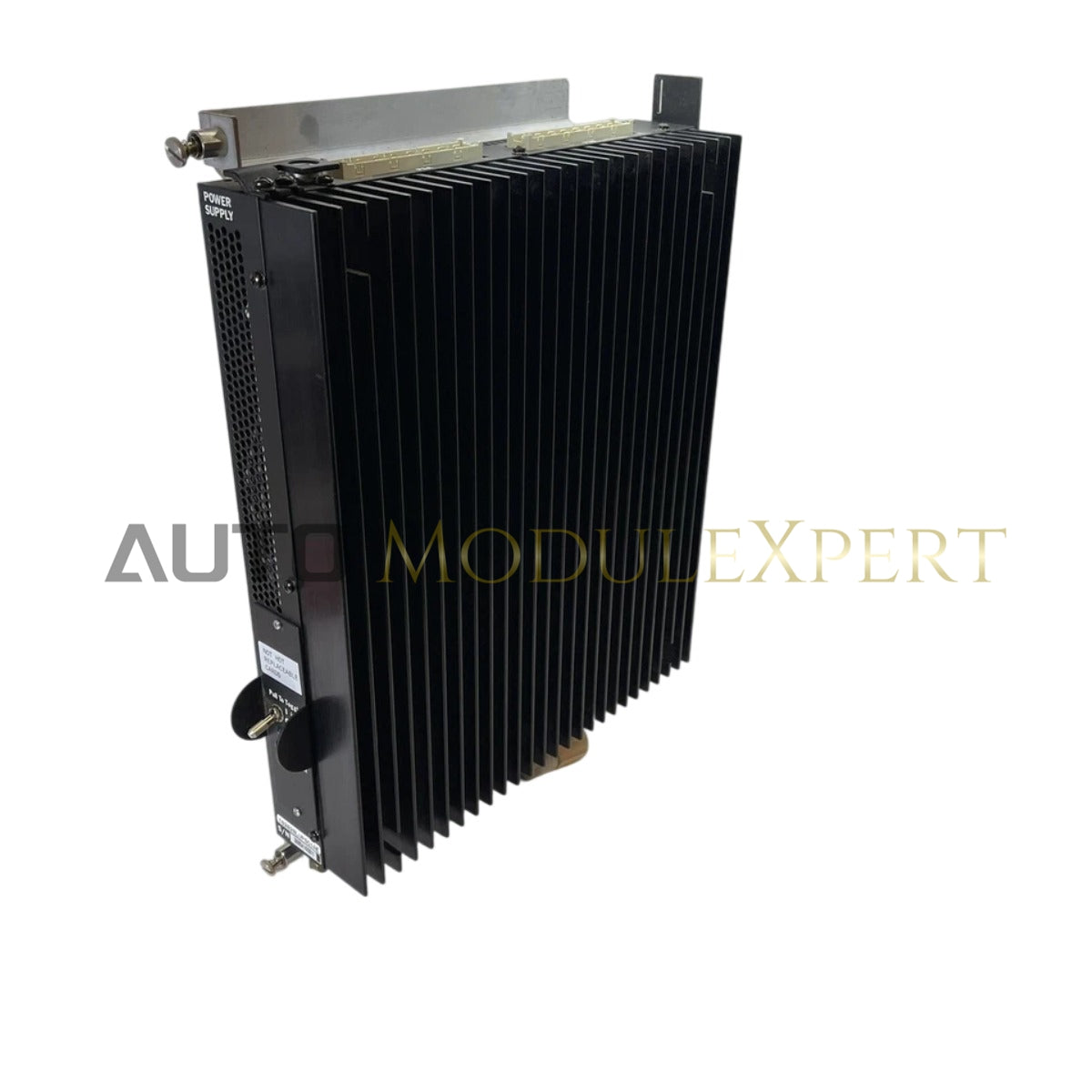

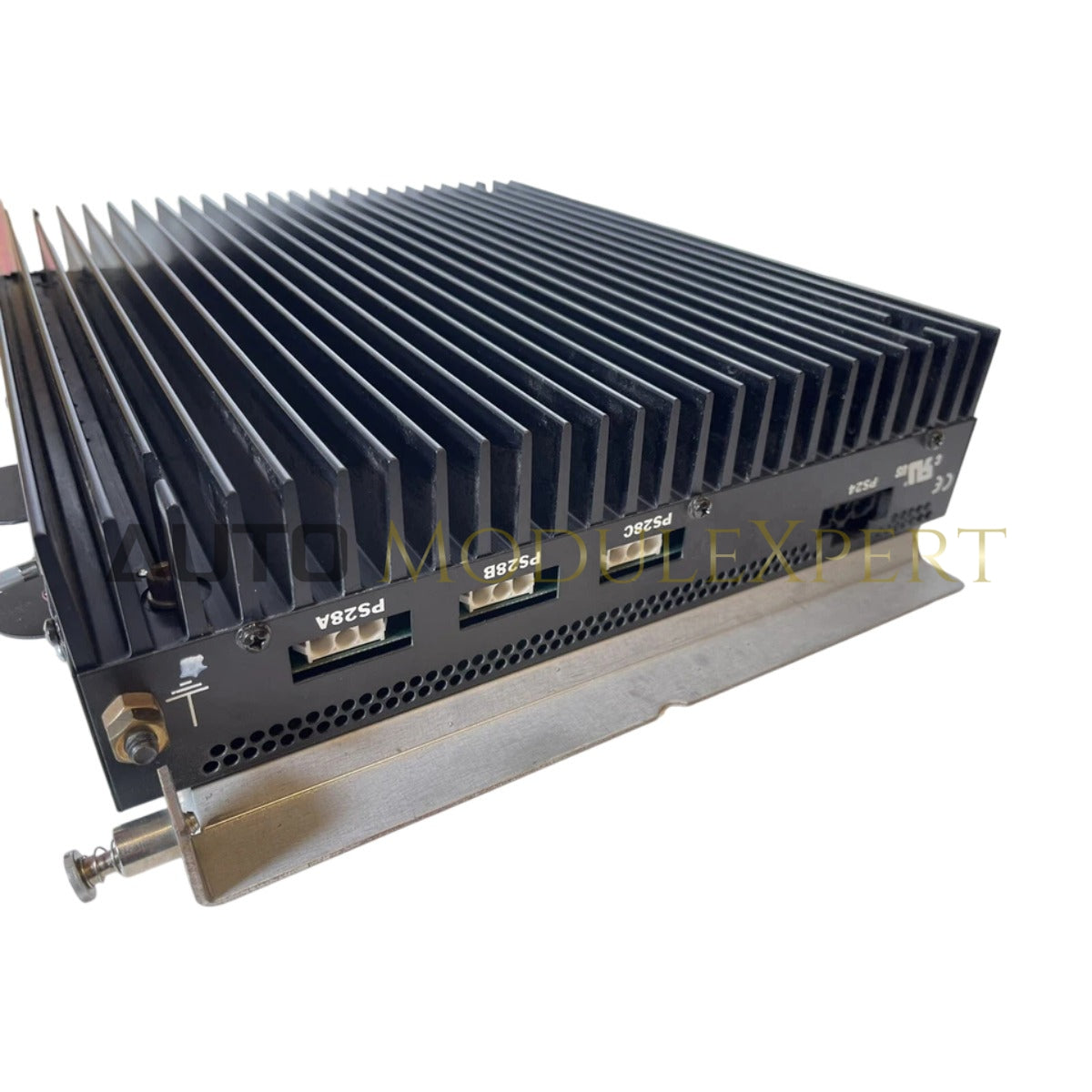

The General Electric IS2020LVPSG1A, also cataloged as the IS2020LVPSG1 Power Supply, operates as a dedicated hardware component for voltage regulation and power distribution within Mark VI turbine control systems.
Suffix Breakdown & Model Matrix
- IS2020: Series identifier for GE Mark VI electronic hardware.
- LVPS: Functional identifier for Low Voltage Power Supply architecture.
- G1: Generation/variant level of the power distribution circuitry.
- A: Primary hardware revision code indicating component sourcing and layout.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS2020LVPSG1A |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.85 kg |
| Dimensions | 15.0 cm x 12.0 cm x 8.0 cm |
| Operating Temp | -20 deg C to +60 deg C |
| Power Input | 100-240 VAC / 125 VDC nominal |
| Efficiency | > 85% at full load |
Firmware Flash Compatibility and Bus Communication
The IS2020LVPSG1A utilizes internal monitoring circuits to report health status to the rack controller via the backplane bus. Firmware flash compatibility is governed by the specific requirements of the Mark VI turbine controller; users must verify that the installed power supply version aligns with the controller's diagnostic firmware to prevent false trip signals. The unit is designed to maintain output stability even under high-load transients common in large-scale power generation environments.
Frequently Asked Questions
Q: Does this power supply support redundant configurations?
A: Yes. The IS2020LVPSG1A is designed for parallel operation within a redundant power supply rack. Ensure that both units are connected to separate power sources to maximize availability during a supply failure.
Q: How can I monitor the health of this power supply?
A: The module provides status signals to the ControlST software environment. Monitor the primary and secondary voltage feedback registers; deviation from nominal setpoints will trigger an alarm in the diagnostic interface.
Field Installation Guidelines
- Safety Clearance: Ensure the input power source is isolated via a lockout/tagout procedure before initiating the installation.
- Mounting: Secure the module into the designated power supply slot within the Mark VI rack. Ensure the locking tabs are engaged to prevent vibration-induced loosening.
- Input Wiring: Connect the input power leads to the specified terminal blocks. Use shielded cabling where necessary to reduce electromagnetic interference (EMI) ingress.
- Load Balancing: When configuring for redundancy, verify that the load sharing bus is correctly terminated between the two modules to ensure balanced power distribution.
- Testing: Upon re-energizing, verify the DC output voltage at the test points using a calibrated multimeter to confirm that it falls within the required tolerance range before connecting the load.
