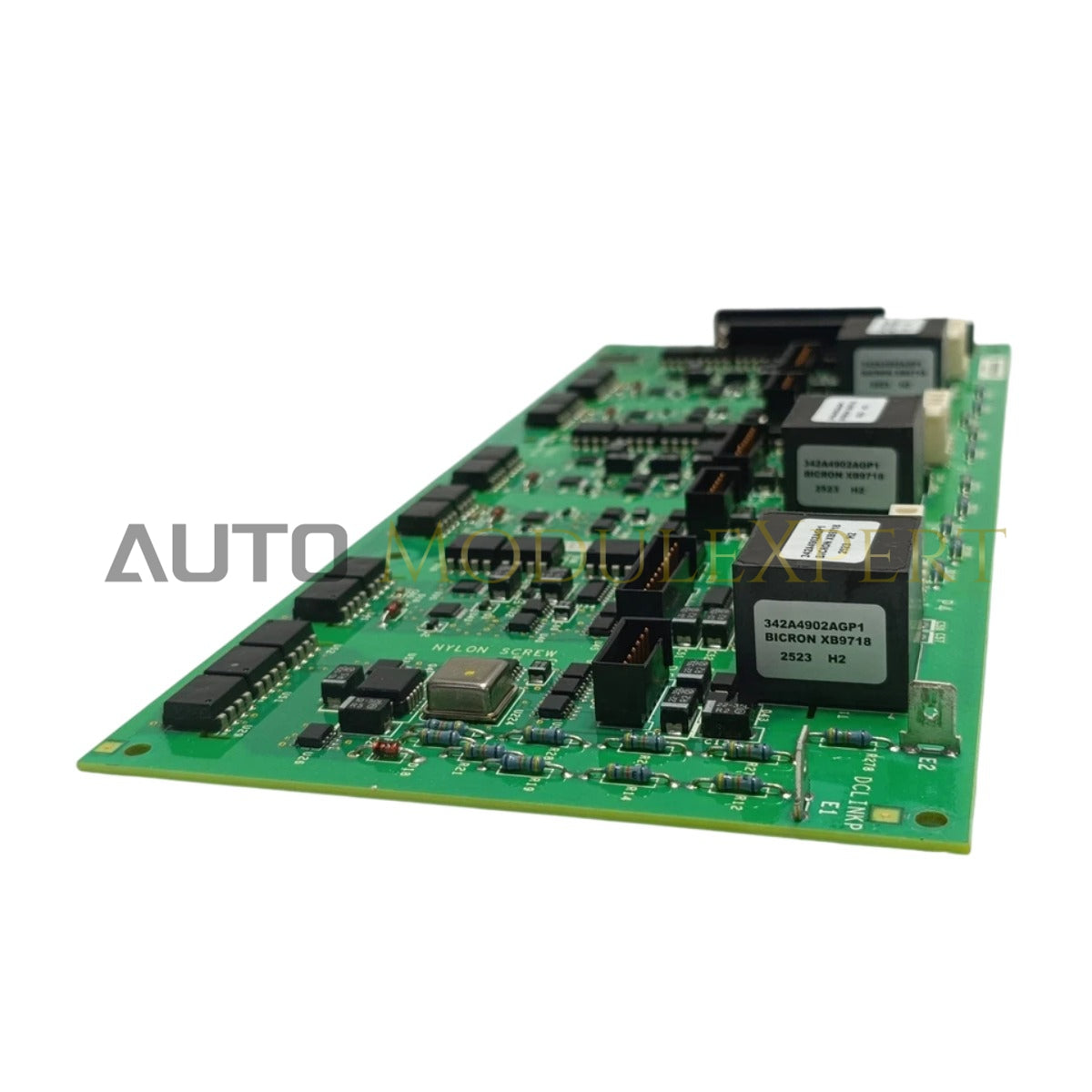

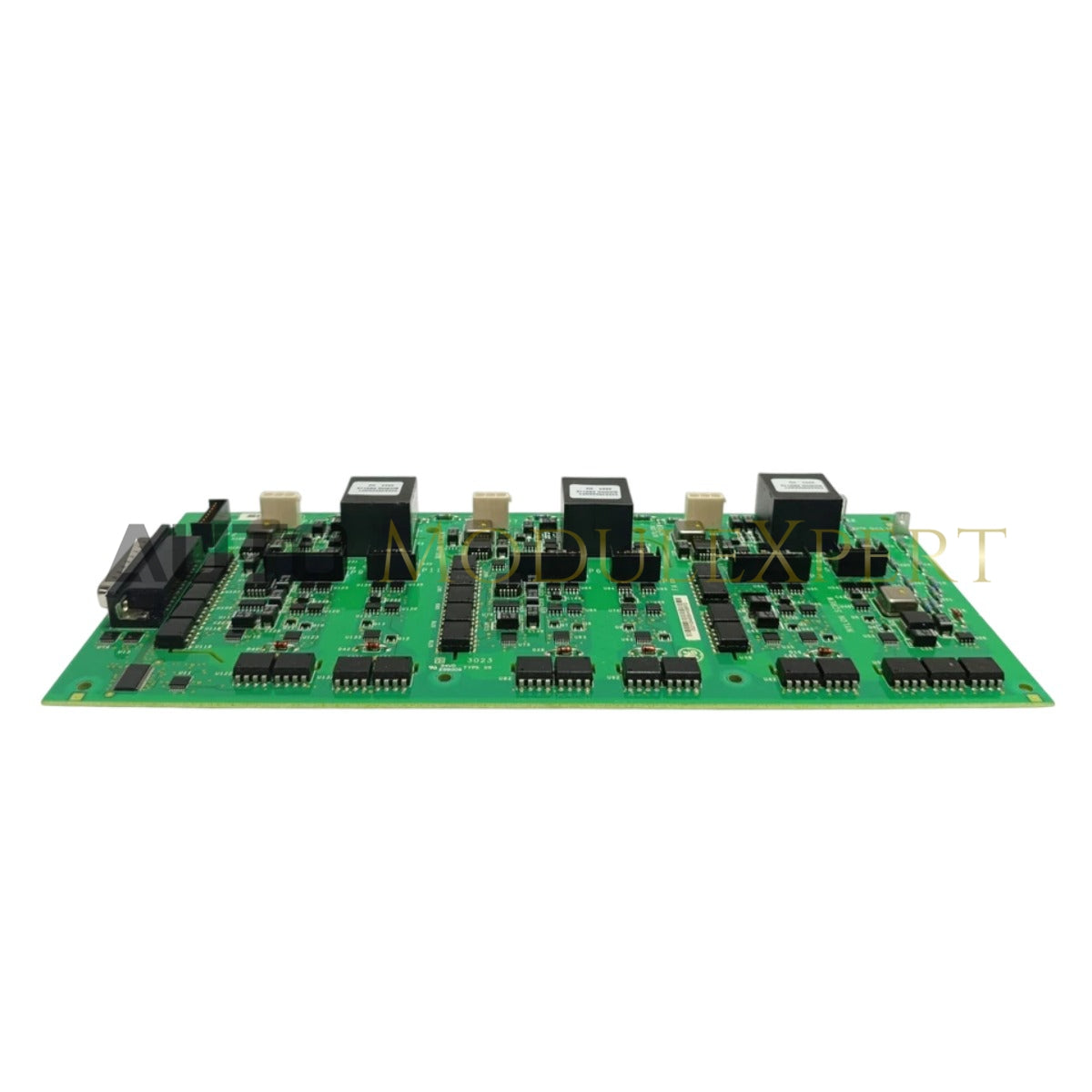

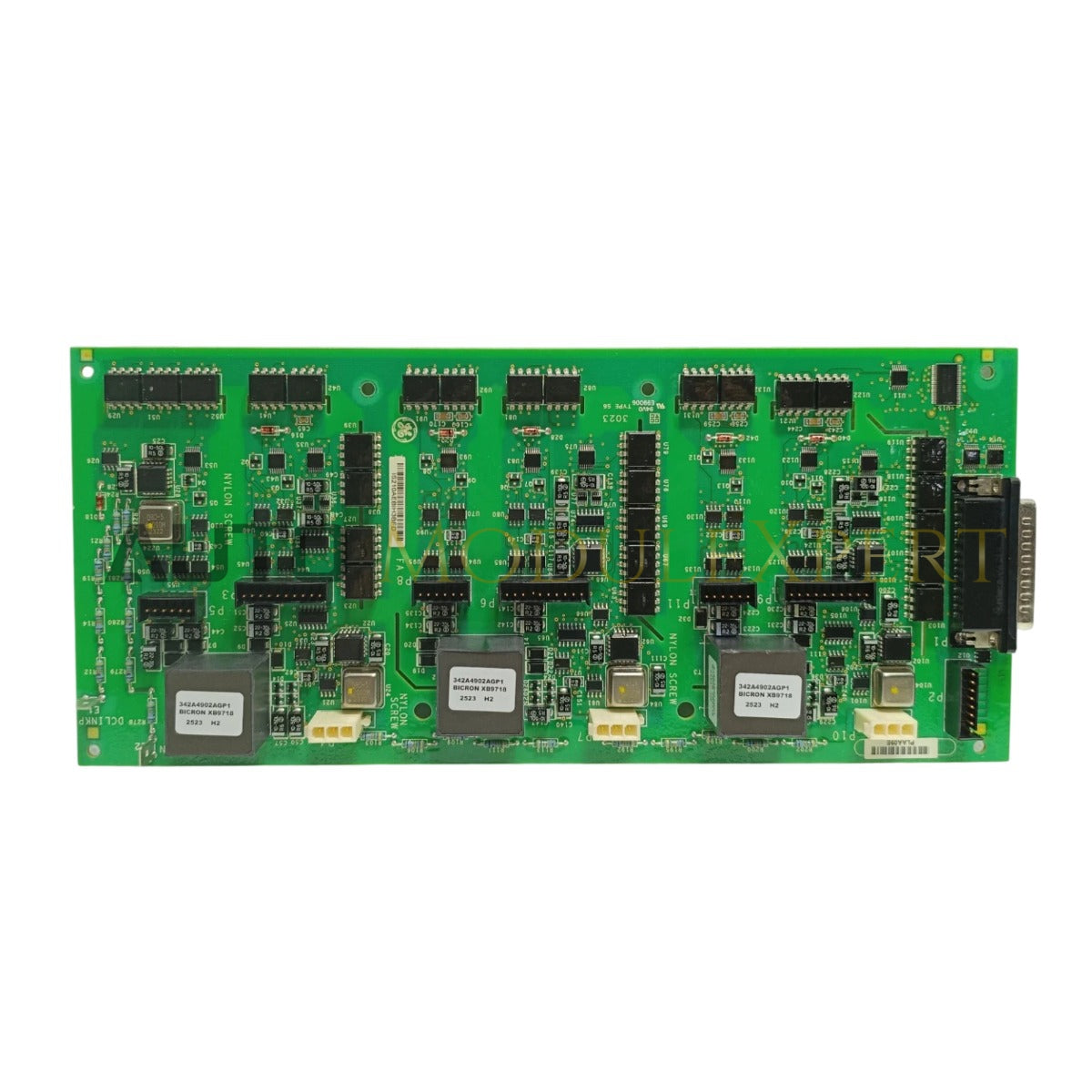

The General Electric IS210AEBIH3B, also cataloged as the IS210AEBIH3B Bridge Interface Board, operates as a dedicated hardware component for communication bridging and signal routing within Mark VIe control system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS210AEBIH3B |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.5 kg |
| Dimensions | 17.8 cm x 5.1 cm x 30.5 cm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 8 W typical |
| Function | Bridge Interface Logic |
| System Platform | Mark VIe |
Profinet / EtherNet/IP Deterministic Networks
The IS210AEBIH3B facilitates deterministic signal exchange by acting as a bridge between internal control buses and external I/O communication ports. This board supports high-speed data throughput, maintaining strictly timed transmission cycles required for stable control loop execution. Firmware flash compatibility is built into the architecture, enabling the module to receive software updates that align with the latest system configurations and operational protocols within the Mark VIe ecosystem.
Frequently Asked Questions
Q: Can the IS210AEBIH3B be replaced while the control system is active?
A: No, this module does not support hot-swapping. The host rack must be powered down and the system safely isolated before the board is removed or installed to prevent electrical damage to the backplane or signal corruption.
Q: How does the bridge interface handle communication timing discrepancies between different bus segments?
A: The module employs a synchronized buffering mechanism to align data packets from disparate bus segments. It ensures that inputs are time-stamped and passed through to the central controller within defined deterministic windows.
Field Installation Guidelines
- Verify that all power to the Mark VIe cabinet is turned off and locked out.
- Carefully align the module edges with the chassis slot guides, maintaining a perpendicular orientation to the backplane.
- Slide the board into the slot, applying steady pressure until the connector is fully seated into the backplane bus.
- Tighten the faceplate screws to the chassis to ensure effective grounding and mechanical stability.
- Confirm that all external interface cables are securely connected and strain-relieved to prevent tension on the board's surface-mounted components.
