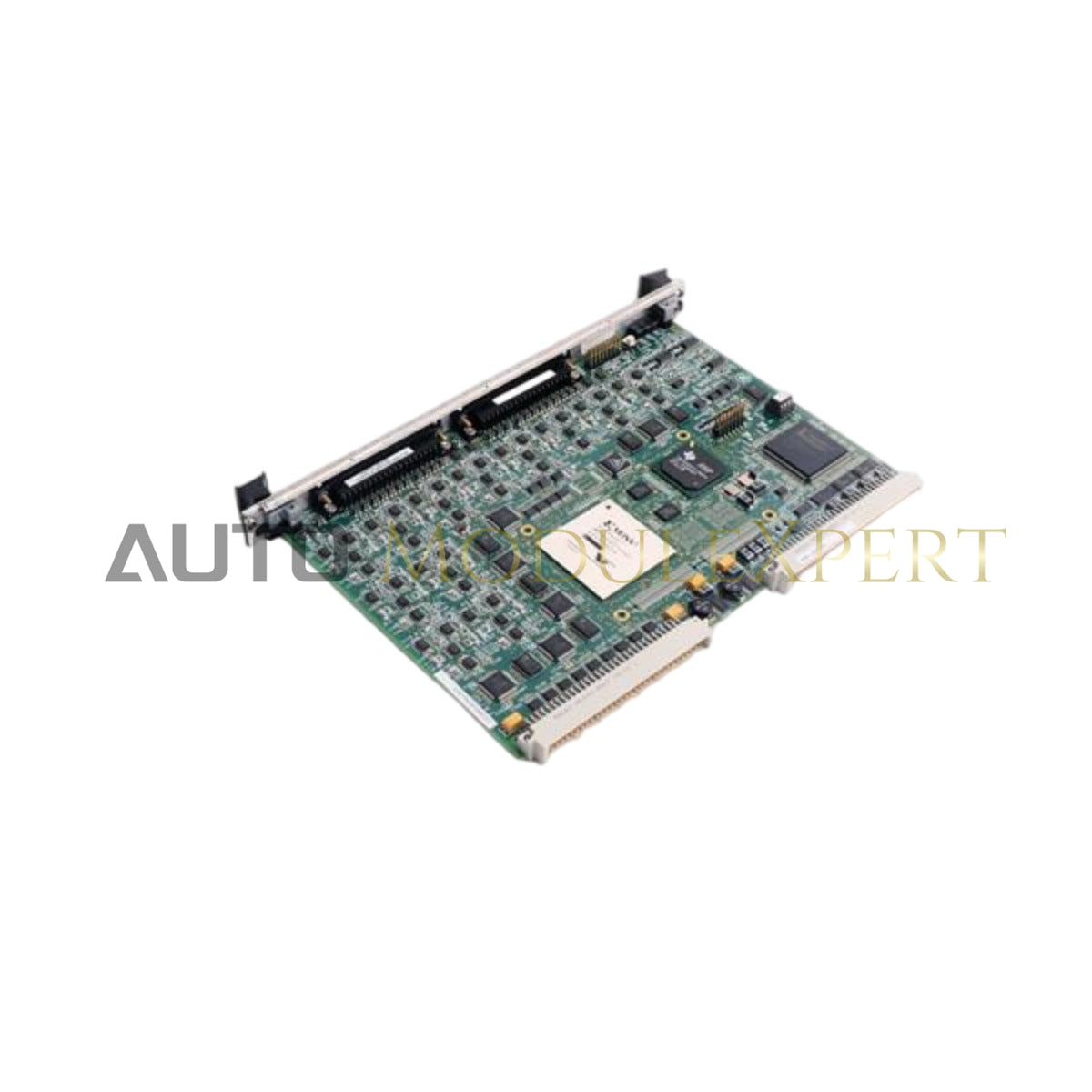

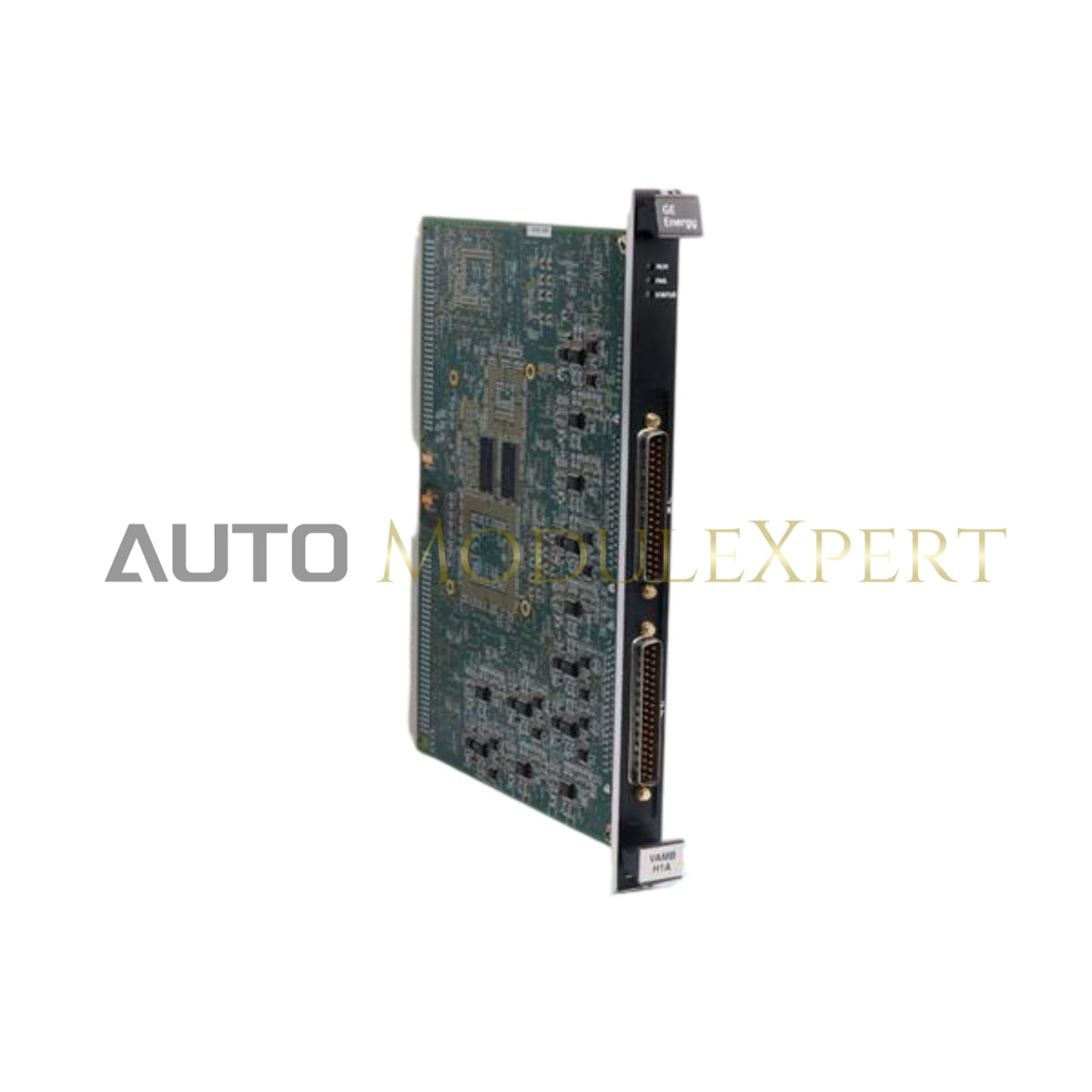

The General Electric IS215VAMBH1A, also cataloged as the IS200VSPAH1ACC Acoustic Monitoring Card Assembly, operates as a dedicated hardware component for high-frequency signal acquisition and acoustic data processing within turbine vibration monitoring systems.

Suffix Breakdown & Model Matrix

• IS215VAMBH1A: Primary assembly identifier for the acoustic monitoring module.
• IS200VSPAH1ACC: Associated component board code, representing the integrated signal processing architecture for acoustic input channels.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The IS215VAMBH1A integrates into the control network to facilitate deterministic data transmission of acoustic signature profiles. Utilizing specialized backplane communication protocols, the module ensures that high-bandwidth acoustic data is synchronized with the primary turbine control loop. The board supports precise sampling rates required to capture mechanical noise signatures, enabling real-time transient analysis without introducing latency into the deterministic network architecture.

Frequently Asked Questions

Q: Is this module compatible with standard vibration monitoring racks?

A: Yes, the module is designed for the standard VME-based turbine control rack. Ensure the backplane firmware is updated to support the VAMB/VSPA processing architecture before integration.

Q: Can the acoustic input sensitivity be calibrated via software?

A: Yes. Gain control and input range scaling are managed through the system configuration software, which communicates with the module via the backplane bus to adjust signal conditioning parameters for specific sensor inputs.

Field Installation Guidelines

1. Verify that the system rack power is isolated before initiating installation of the module.
2. Insert the card into the designated VME slot, ensuring that the connector pins align with the backplane bus interface.
3. Tighten the faceplate screws to the chassis to ensure a low-impedance electrical path for electromagnetic shielding.
4. Connect acoustic sensor cables to the front-end terminal blocks. Maintain twisted-pair shielding and terminate the drain wires at the ground stud provided on the rack chassis to mitigate common-mode noise.
5. Perform a signal loop check by applying a known test frequency to the sensor inputs to verify that the monitoring software registers the expected input levels.
