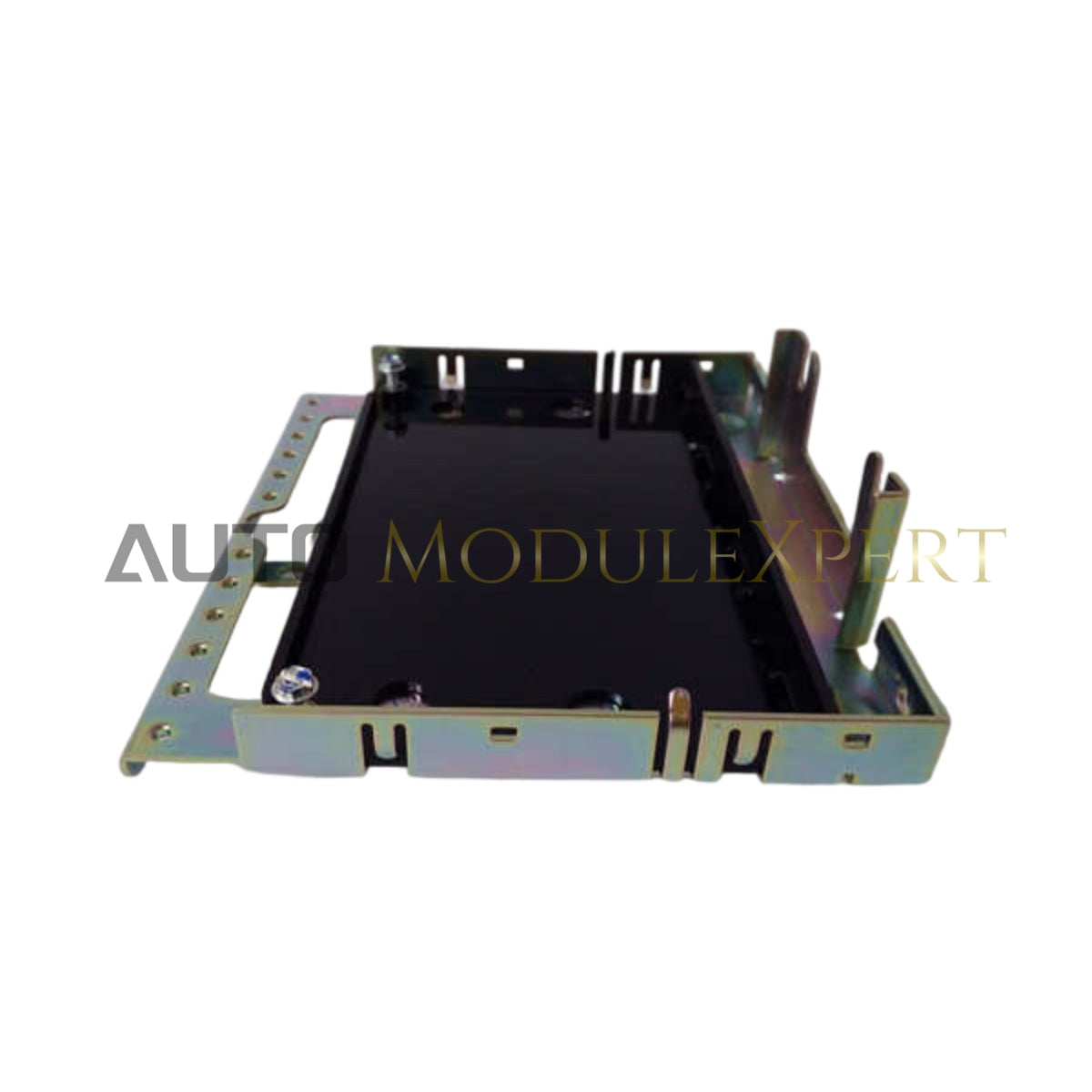

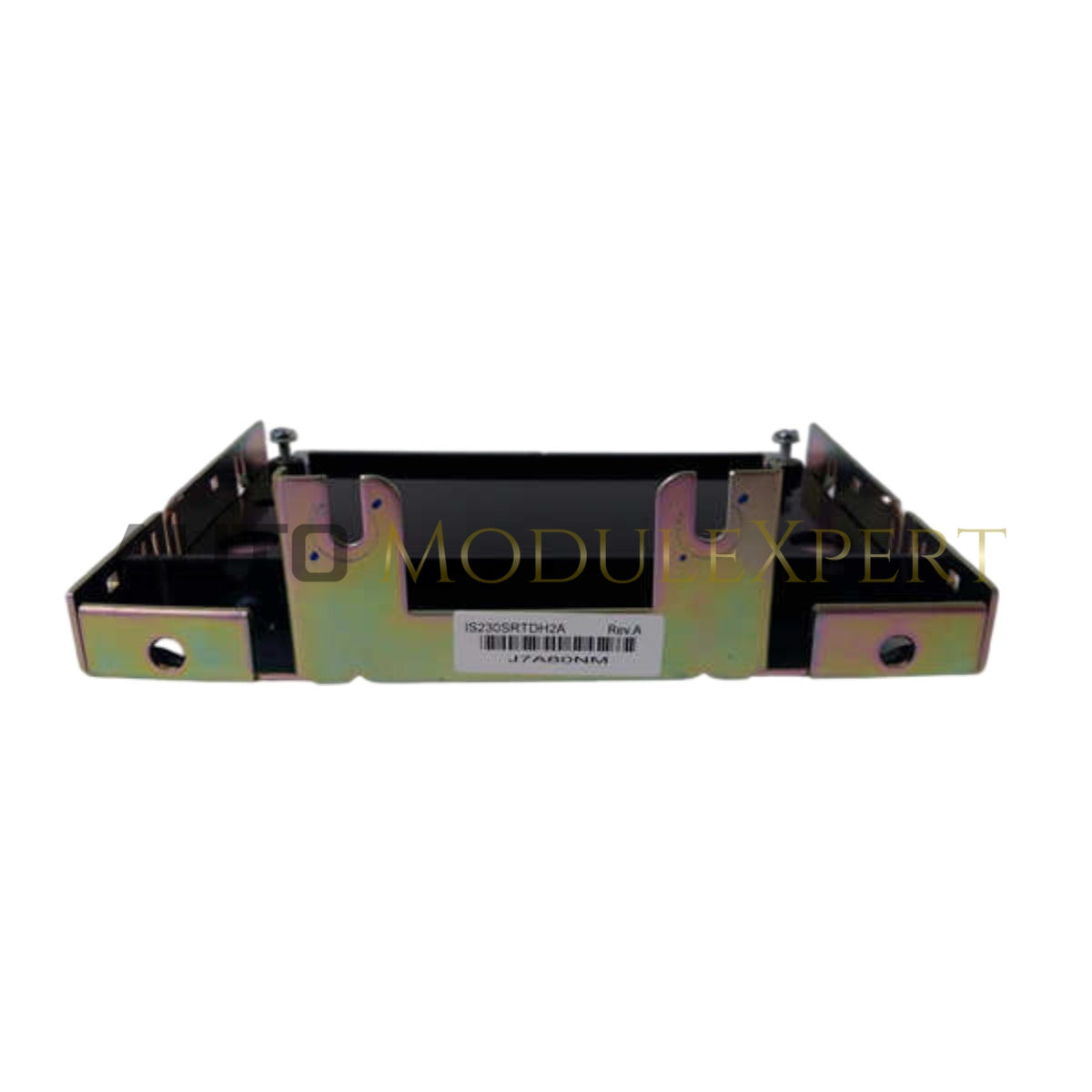

The General Electric IS230SRTDH2A, also cataloged as the IS230SRTDH2 RTD SMX DIN-RAIL Module, operates as a dedicated hardware component for temperature signal conditioning and field interface distribution within Mark VIe control platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS230SRTDH2A |
| Brand | General Electric |
| Origin | USA |
| Weight | 1.2 kg |
| Dimensions | 10 cm x 13.2 cm x 5.7 cm |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | Dependent on sensor excitation load |
| Component Type | RTD Input Module |
Profinet / EtherNet/IP Deterministic Networks
The IS230SRTDH2A functions as a high-precision interface for Resistance Temperature Detector (RTD) sensors, facilitating deterministic data acquisition across the control network. It manages sensor excitation and signal linearization, converting resistive variations into processed digital values for the control system. The module is engineered for integration within Profinet or similar deterministic I/O networks, ensuring synchronized sampling rates required for turbine or process temperature monitoring. High-speed backplane communication is maintained to support the timing requirements of distributed control logic, ensuring that temperature feedback remains accurate during transient states.
Frequently Asked Questions
Q: Is this module capable of performing local lead-wire compensation for RTD sensors?
A: Yes. The IS230SRTDH2A is designed to perform 3-wire lead-wire compensation to mitigate errors caused by cable resistance, provided the lead lengths are balanced and the module is configured correctly in the system software.
Q: Can this DIN-rail module be installed in high-vibration environments?
A: The module is designed for standard industrial DIN-rail mounting; however, ensure the rail is securely fastened to the chassis and that all signal wiring is properly strain-relieved to prevent mechanical stress on the terminals.
Field Installation Guidelines
- Ensure the system power is de-energized before mounting the module to the DIN rail to avoid accidental shorts on the signal terminals.
- Verify that the module is snapped firmly onto the DIN rail and that the locking mechanism is engaged to maintain mechanical stability.
- Use high-quality shielded cabling for RTD connections, ensuring that the shields are grounded at the designated common ground bus to minimize electromagnetic noise pickup.
- Confirm that the wiring configuration (2-wire, 3-wire, or 4-wire) matches the software configuration settings to prevent inaccurate temperature readings.
