Overview

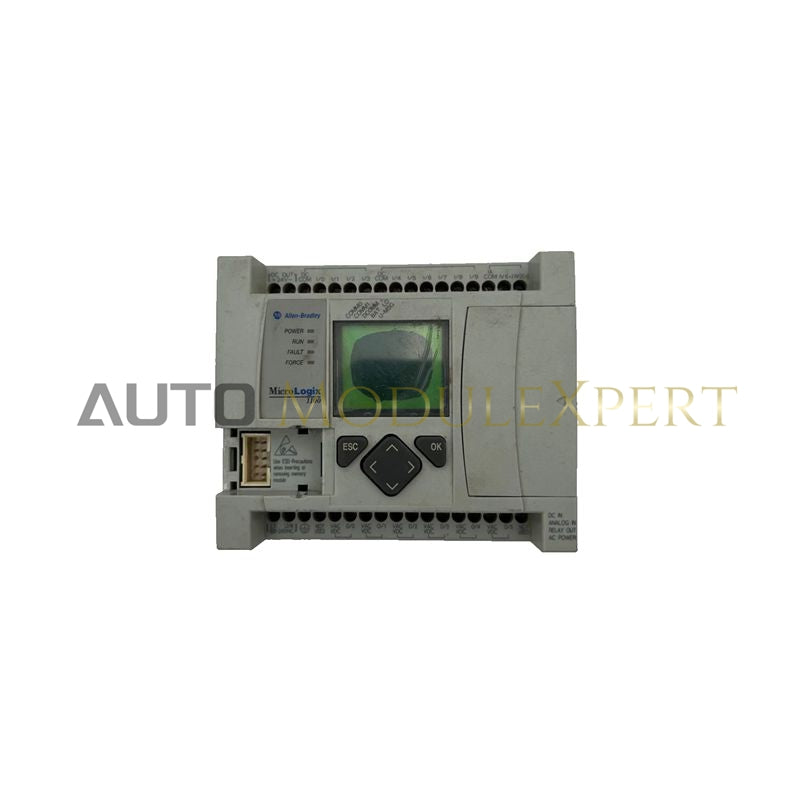

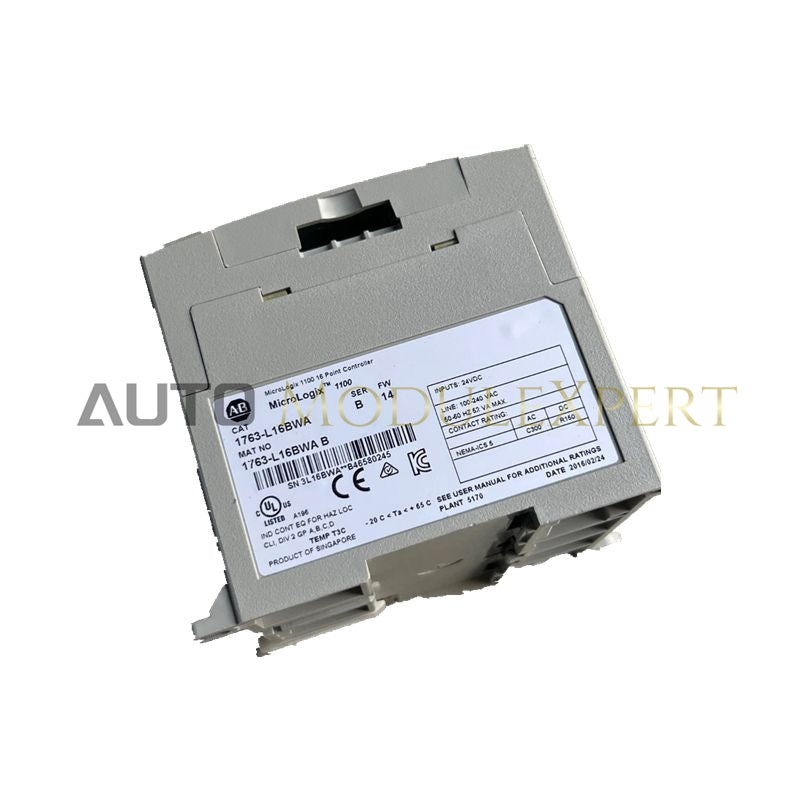

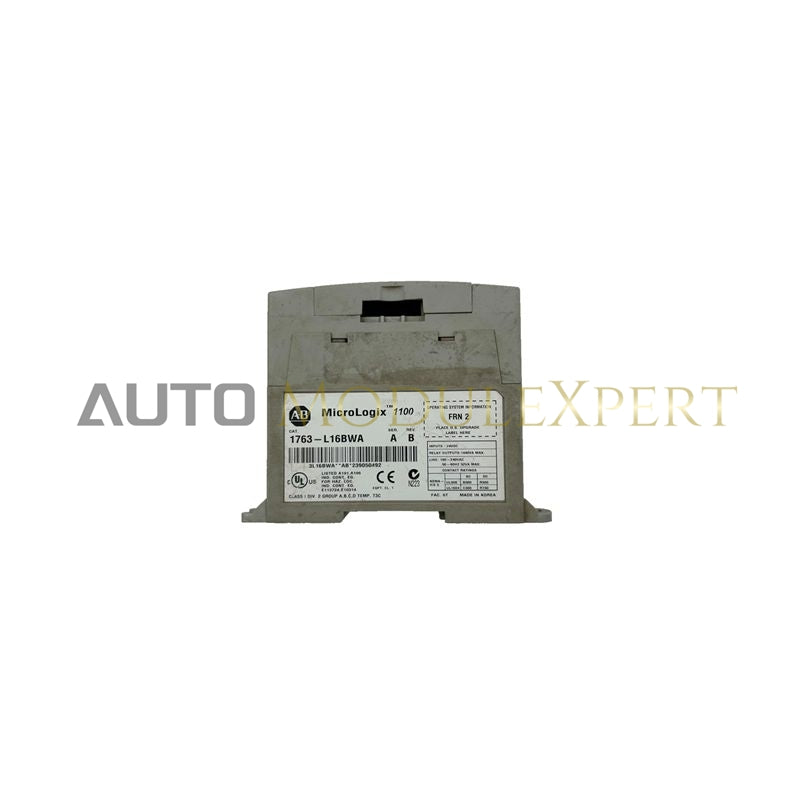

The 1763‑L16BWA is part of Rockwell Automation’s MicroLogix 1100 family, engineered to deliver cost-effective control with modern communication features.
It provides built-in Ethernet/IP and RS‑232/RS‑485 ports, allowing integration with SCADA and supervisory systems. The controller supports online editing, data logging, and advanced instruction sets, making it suitable for diverse industrial automation tasks. Its compact DIN-rail design simplifies installation while maintaining robust performance.
This controller is widely trusted in manufacturing, utilities, OEM machinery, and infrastructure automation, reflecting Rockwell Automation’s expertise in dependable PLC solutions.
Technical Data
| Parameter | Specification |
|---|---|
| Model Number | 1763‑L16BWA |
| Dimensions | 90 × 110 × 120 mm |
| Weight | 1.2 kg |
| Operating Temperature | 0°C to +55°C |
Typical Applications
Machine Control
Packaging, assembly, and material handling equipment.
Process Control
Small-scale chemical, food, and beverage processes.
Utilities and Infrastructure
Water treatment, HVAC, and building automation.
OEM Equipment
Cost-effective control for custom machinery.
Remote Monitoring
Ethernet/IP connectivity enables SCADA integration.
Example:
In a water treatment facility, the 1763‑L16BWA manages pumps, valves, and sensors while transmitting operational data to supervisory systems. Its relay outputs allow direct control of motor starters and solenoids.
FAQ
Q1: What is the primary function of the 1763‑L16BWA?
A1: It is a MicroLogix 1100 PLC that provides control, monitoring, and communication for automation systems.
Q2: How many I/O points does it support?
A2: It has 10 digital inputs and 6 relay outputs, expandable with up to 4 I/O modules.
Q3: What communication options are available?
A3: It supports Ethernet/IP, RS‑232, and RS‑485 for flexible integration.
Q4: Which software is used for programming?
A4: It can be programmed using RSLogix 500 or Studio 5000 Micro.
Q5: What industries typically use this controller?
A5: It is widely applied in manufacturing, utilities, OEM machinery, and infrastructure automation.
