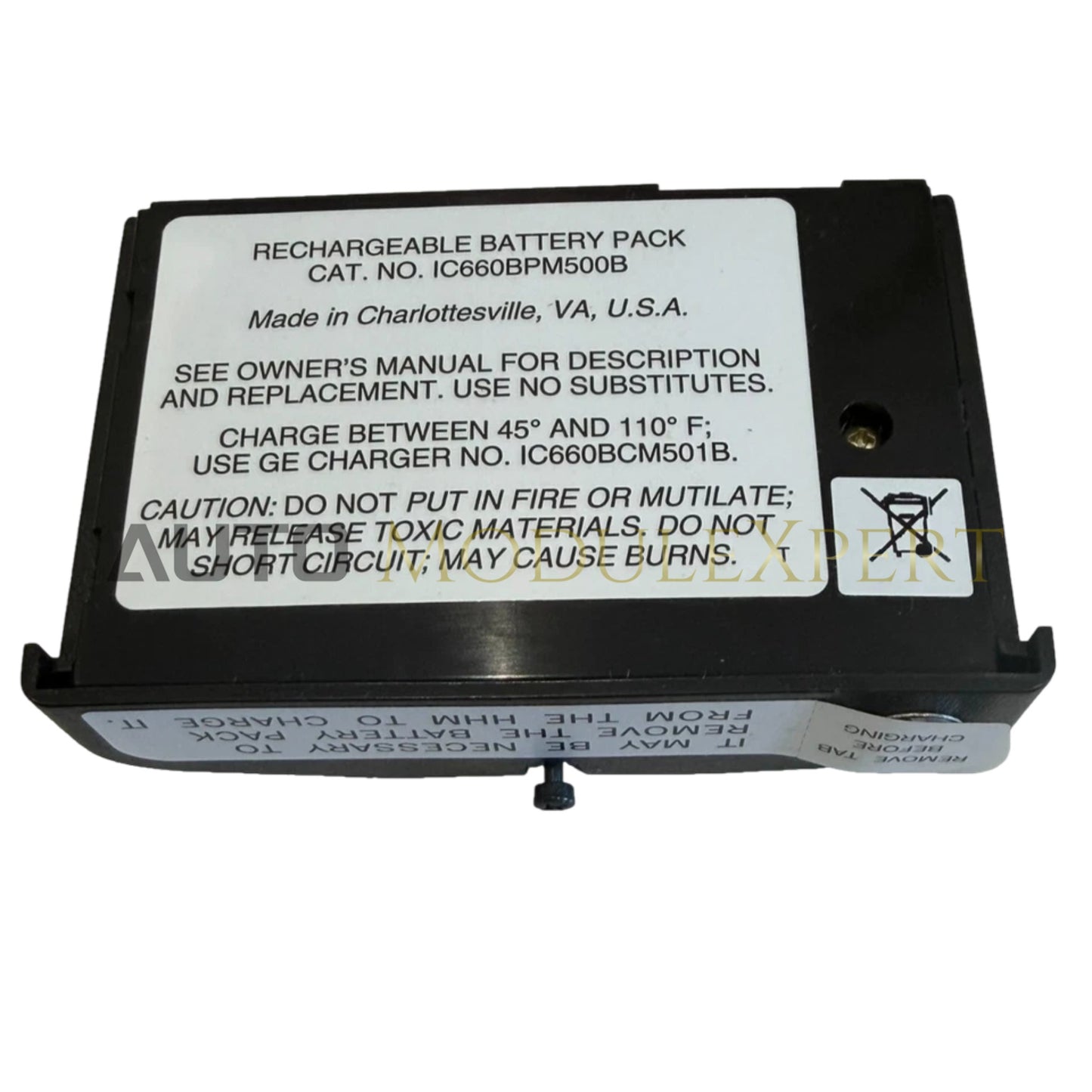

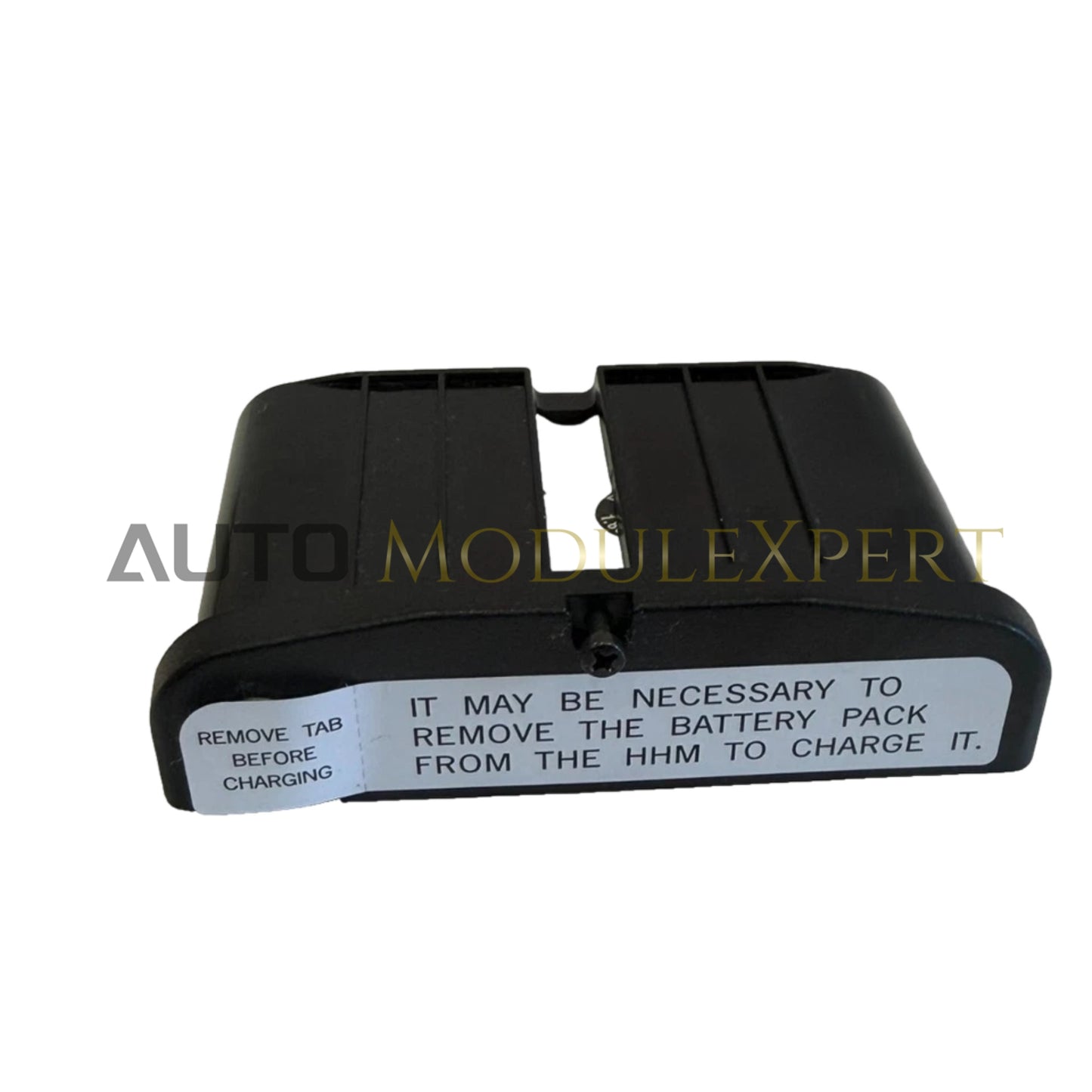

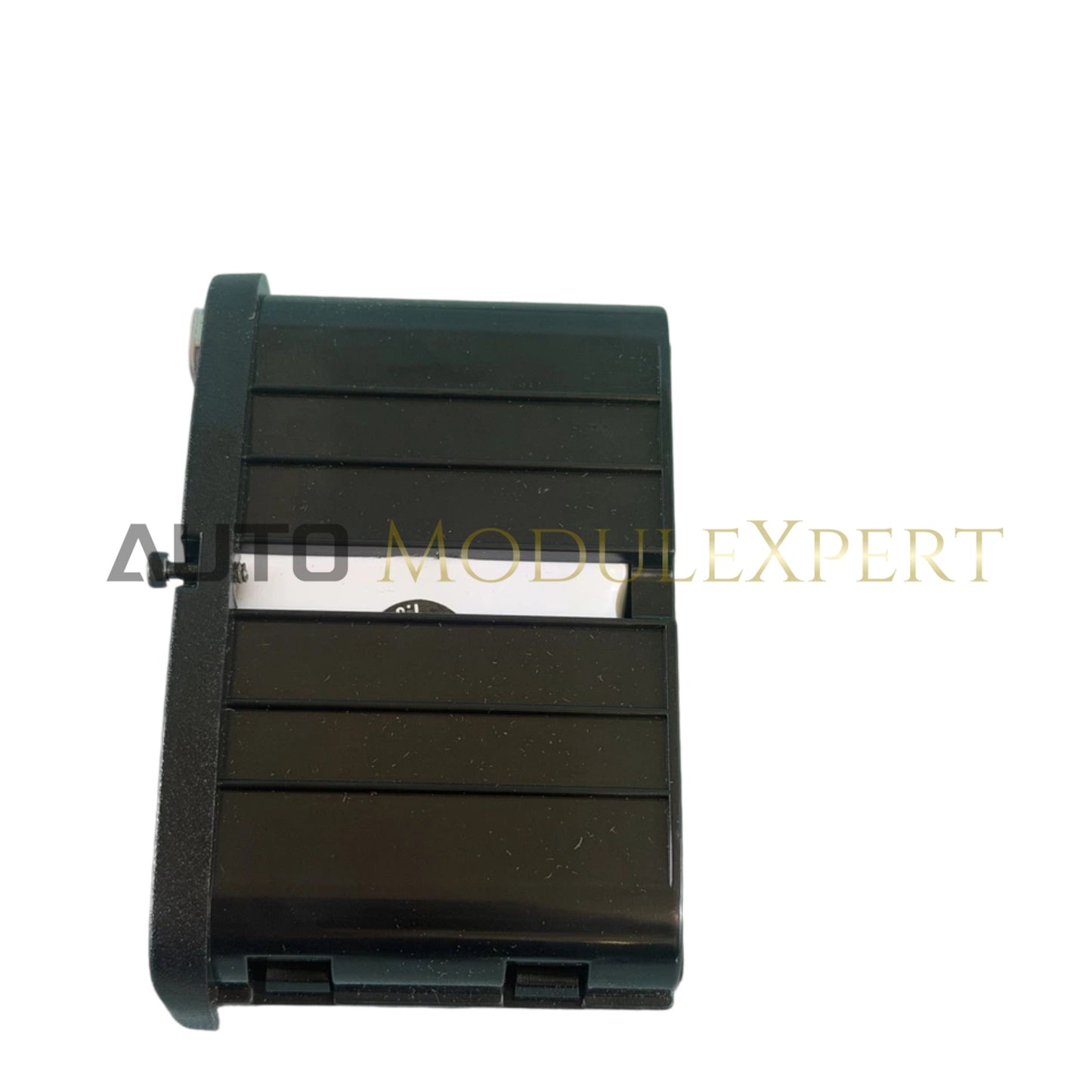

The GE FANUC IC660BPM500, also cataloged as the IC660BPM500 Monitor Battery Pack, operates as a dedicated hardware component for providing auxiliary power to volatile memory components within Genius I/O and controller platforms.

Hardware Specifications

Memory Retention and System Integrity

The IC660BPM500 is engineered to maintain the integrity of volatile data within Genius I/O configurations and associated control hardware during power cycles or primary supply failure. In industrial control architectures, the battery pack ensures that critical parameters, station addresses, and diagnostic logs remain stored in RAM. The discharge profile of the battery must be monitored periodically to prevent memory loss, which could otherwise necessitate a complete system re-initialization and restoration from non-volatile backup storage. Proper installation is critical to ensure that the backup circuitry detects the battery presence and correctly shifts the load during primary power loss.

Frequently Asked Questions

Q: How often should the IC660BPM500 battery pack be replaced?

A: Replacement frequency depends on the operational temperature and the duration of power-off periods. It is recommended to follow the preventative maintenance schedule specified in the controller or I/O system manual, typically every 1 to 3 years.

Q: What happens if the battery voltage drops below the threshold?

A: If the battery voltage is insufficient, the system may flag a low-battery diagnostic alarm. Continued operation without replacement risks the loss of configuration parameters, registers, and volatile memory contents upon power cycle.

Q: Can the battery pack be replaced while the system is powered?

A: Yes, in many GE FANUC platforms, the battery backup circuit allows for hot-replacement to prevent the loss of memory data during the exchange process. Refer to the specific system manual to verify the support for hot-swap procedures.

Field Installation Guidelines

• Mounting: Secure the battery pack in the designated battery compartment or mounting bracket. Ensure the connector is fully seated to maintain electrical continuity with the backup power bus.
• Polarity Check: Verify the orientation of the connector. Incorrect polarity or an unseated connector will result in the backup circuitry failing to engage, leaving memory unprotected.
• Storage and Handling: Store in a cool, dry environment. Avoid extreme temperatures or high-humidity conditions, as these can significantly reduce the service life and capacity of the battery cells.
• Disposal: Dispose of the depleted battery pack according to local environmental regulations for hazardous materials and lithium/alkaline cell disposal.
