Product Overview

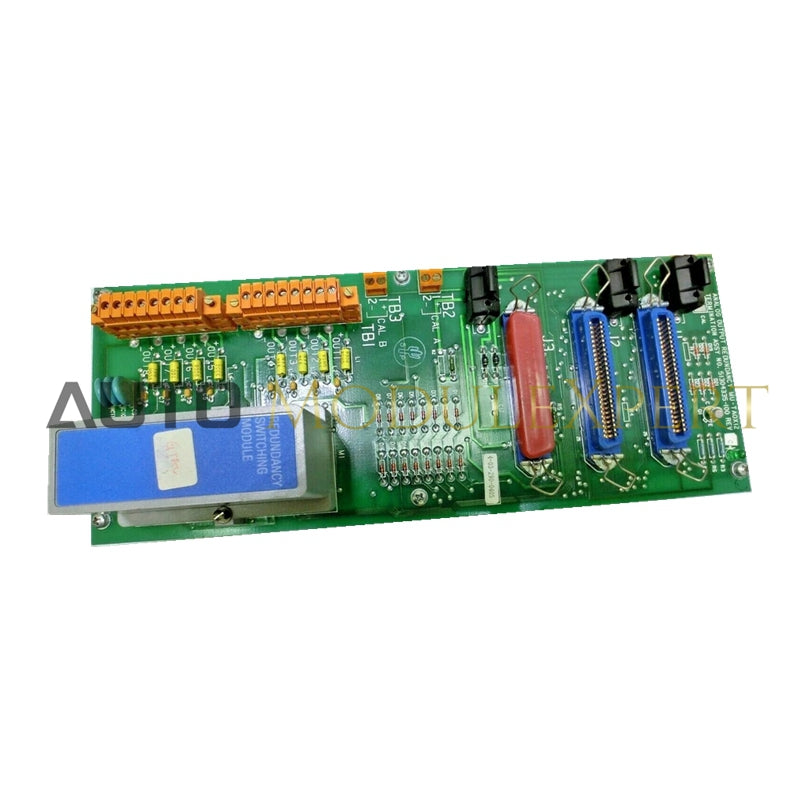

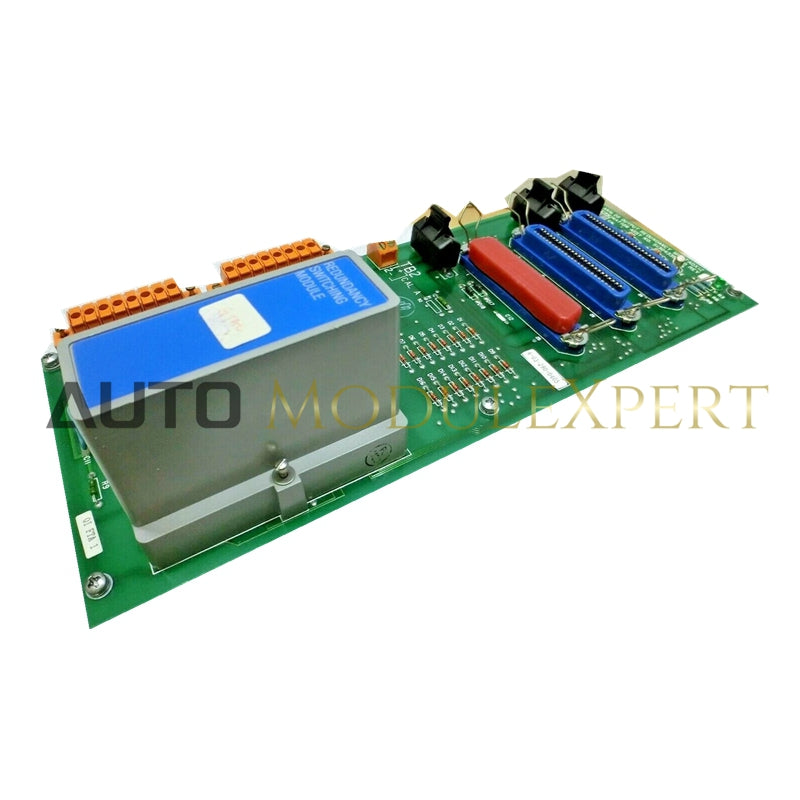

The Honeywell MU-TAOX12 51304335-100 is a redundant analog output module designed for distributed control systems. It delivers stable 4–20 mA signals across eight independent output channels. Engineers use it to control actuators and transmit analog data to field devices. Redundant circuits ensure continuous operation during hardware failure. Its robust design supports high-precision output in demanding industrial environments. The MU-TAOX12 51304335-100 integrates easily into Honeywell DCS architectures.
Technical Specifications
| Attribute | Details |
|---|---|
| Model Number | MU-TAOX12 51304335-100 |
| Type | Analog Output FTA Module |
| Output Channels | 8 |
| Output Range | 4–20 mA |
| Redundancy | Dual independent output circuits |
| Output Accuracy | ±0.1% of full scale |
| Ripple | 100 mV peak-to-peak across 250 Ω load |
| Temperature Stability | 0.02% full scale per °C |
| Max Current Output | 26 mA |
| Power Supply Voltage | 24 VDC |
| Power Consumption | 10 W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 0% to 95% non-condensing |
| Vibration Resistance | 0.05 g rms, 5–500 Hz |
| Shock Resistance | 15 g, 20 ms half-sine pulse |
| Dimensions | 305 mm × 152 mm × 76 mm |
| Weight | 1.6 kg |
| Warranty | 12 months |
| Country of Origin | United States |
| Quick Quotes | Receive price & availability FAST from our dedicated customer service team. |
|---|---|
| Delivery | Expedited, Freight, And International Shipping Available. |
| Condition | 100% New with Original Package |
| Payment | We accept American Express, Discover, MasterCard, PayPal, and Visa. Our site is secured by RapidSSL. |
| Shipping Port | ShangHai, Xiamen |
| Warranty | 12 Months |
| Q: Is Our Pricing Competitive? |
| A: Yes, we collaborate with over 50 countries worldwide. As a top supplier in China, we offer significant discounts based on market trends. |
| Q: What Is the Warranty Period? |
| A: All our new and original products come with a standard one-year warranty. |
| Q: What Payment Methods Do We Accept? |
| A: We require 100% T/T (Telegraphic Transfer) payment before shipping. For items with a lead time, a 30% deposit is needed upfront, and the remaining 70% is due before shipping. If you have a representative in China, you can arrange an RMB transfer through them. |
| Q: What Shipping Methods Do We Use? |
| A: We primarily use FedEx, DHL, UPS, and BRE for shipping. If you have an account with any of these carriers, you can handle shipping directly. We also offer free shipping to China-based freight forwarders. |
| Q: What Is Our Delivery Time? |
| A: Delivery usually takes 1-3 days after receiving the initial payment. For items with a lead time, shipping will occur according to the specified schedule. |
| Q: How Do We Package the Goods? |
| A: We ensure safe packaging with multiple layers of protection. Products are first placed in their original boxes and sealed with labels. A layer of bubble wrap is then added for collision protection during transit. Finally, the items are packed securely in durable boxes. |
| Q: How Can Customers Contact Us and Request a Quote? |
| A: You can reach out to us via email, WhatsApp, WeChat, Skype, or your preferred communication platform. Contact us with your needs, and we'll provide a prompt, customized quote. |
