Product Overview

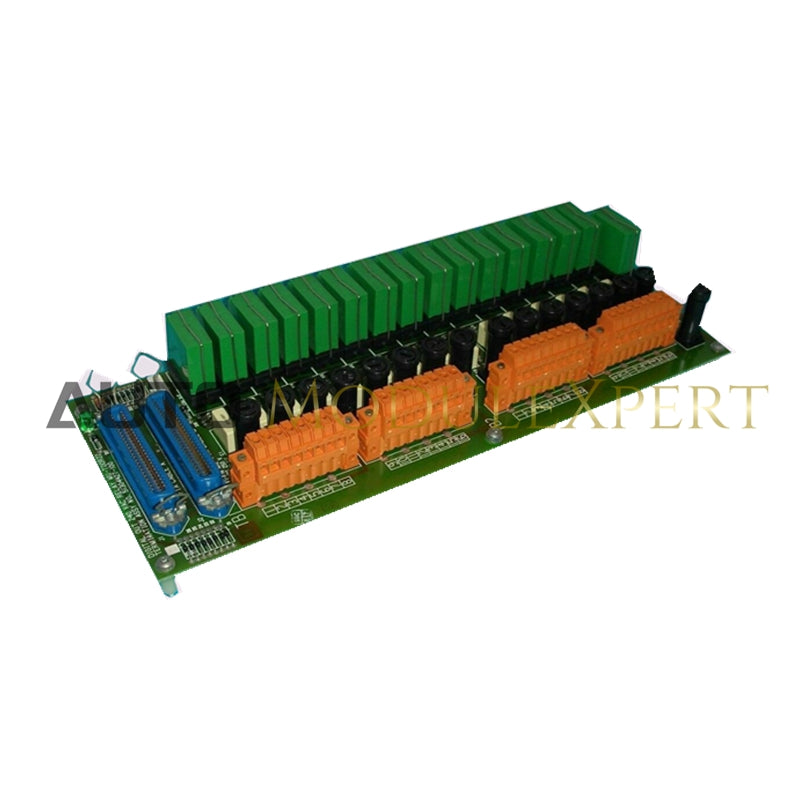

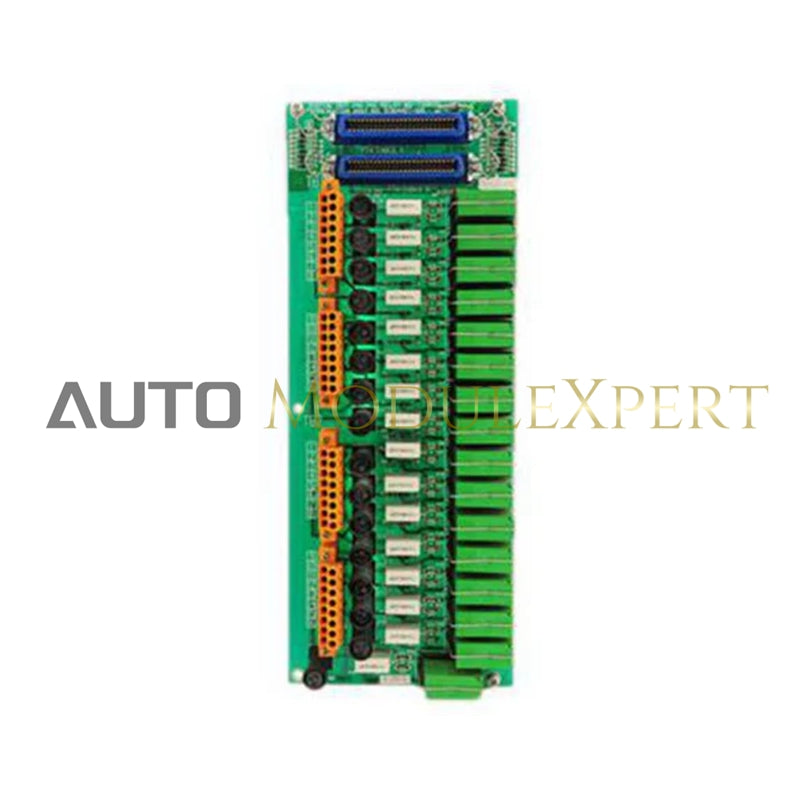

The Honeywell MU-TDOR22 51304427-100 is a digital output relay module for industrial automation systems. It delivers reliable control signals to field devices such as motors, valves, and relays. Each output channel supports high-voltage switching for demanding industrial environments. The module integrates with Honeywell’s Fault Tolerant Architecture for enhanced system reliability. Its compact design simplifies installation and maintenance in control cabinets. The MU-TDOR22 51304427-100 ensures consistent performance in high-load applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | MU-TDOR22 51304427-100 |
| Type | Digital Output Relay FTA Module |
| Output Channels | 16 isolated relay outputs |
| Contact Type | Form A (SPST/NO) or Form B (SPST/NC), jumper selectable |
| Contact Material | Silver alloy |
| Isolation Voltage | 1500 Vac rms or ±1500 Vdc |
| Max Load Voltage | 265 Vac or 140 Vdc |
| Max Load Current | 2.5 A @ 240 Vac, 2 A @ 30 Vdc |
| Min Load Current | 100 mA |
| Surge Current | Rated per UL 508 endurance standards |
| Turn-on Time | 10 ms typical, 15 ms maximum |
| Turn-off Time | 10 ms typical, 15 ms maximum |
| Repetition Rate | 360 cycles per hour |
| Mechanical Life | 20 million operations |
| Contact Suppression | 51 Ω / 0.022 µF snubber per contact |
| Fusing | 3 A 250 V slow-blow fuse per output |
| Surge Protection | Meets ANSI/IEEE C37.90.1-1978 standards |
| Mounting | DIN rail or panel mount |
| Dimensions | 2.1 × 2.1 × 0.7 inches |
| Weight | 0.3 pounds |
| Certifications | CE, RoHS |
| Warranty | 1 year |
| Country of Origin | United States |
