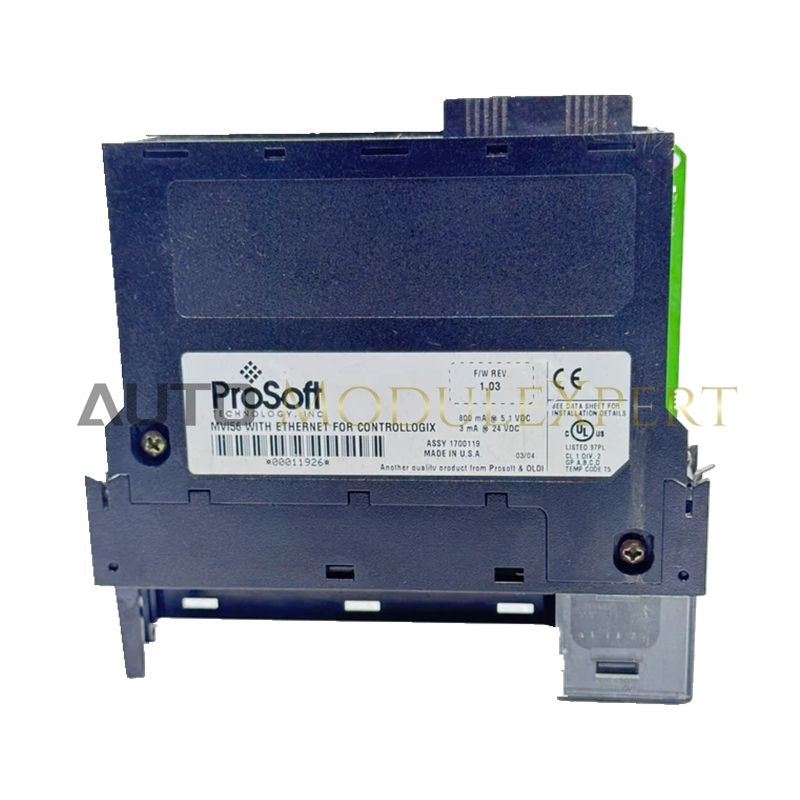

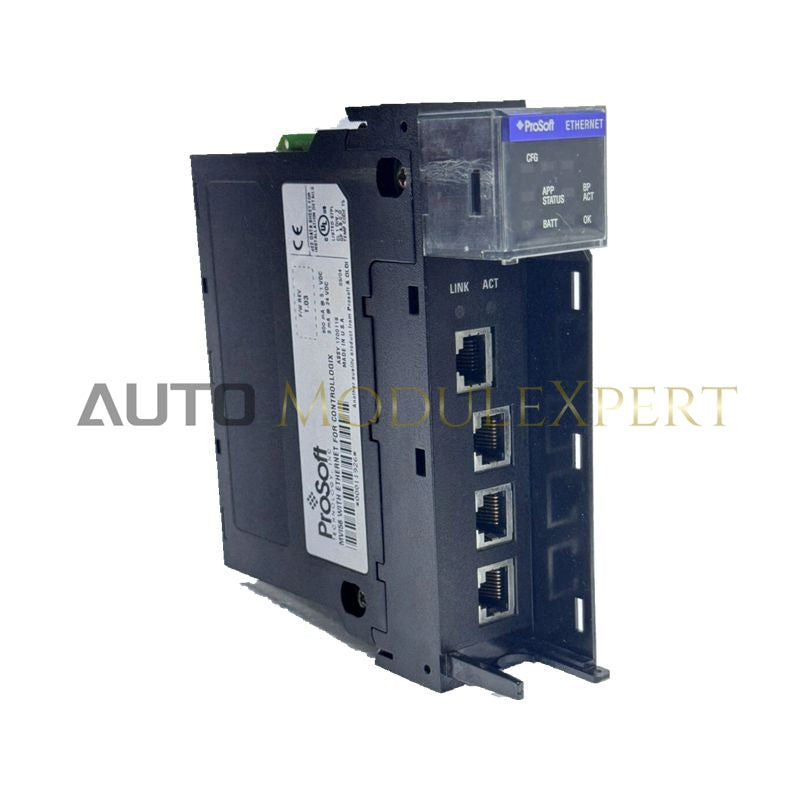

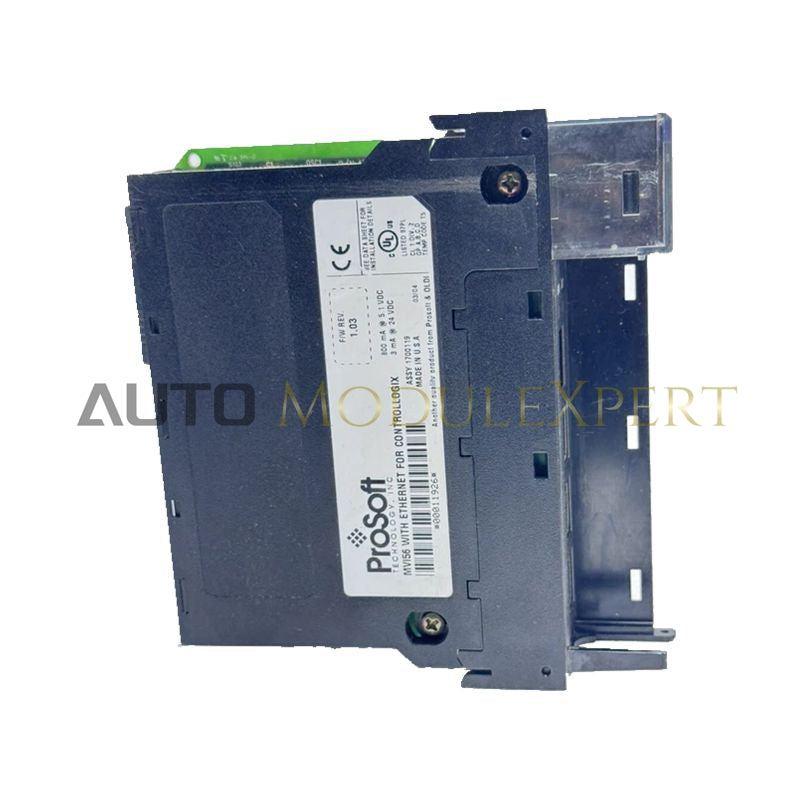

Product Overview
The ProSoft MVI56-GEC is a Generic ASCII Ethernet Interface module designed to enable Rockwell Automation ControlLogix processors to communicate with external devices over TCP/IP Ethernet networks using ASCII protocols. This module is ideal for integrating devices such as barcode scanners, printers, weigh scales, and other ASCII-based devices into ControlLogix systems.
The module supports up to five simultaneous clients and five servers, allowing both data reception and transmission. It installs directly into the ControlLogix chassis as a single-slot module, and communicates with the processor via the backplane.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MVI56-GEC |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 2 × 19 × 12.9 cm |
| Weight | 1.8 kg |
Key Features
-
Enables ASCII-based Ethernet communication for ControlLogix processors.
-
Supports up to 5 clients and 5 servers simultaneously for both data reception and transmission.
-
Flexible IP configuration options via DHCP or static IP addressing.
-
Compact single-slot design for easy integration into ControlLogix systems.
Applications
The MVI56-GEC is ideal for:
-
Integrating ASCII Ethernet devices into ControlLogix systems.
-
Connecting barcode readers, printers, and weigh scales in industrial settings.
-
Custom TCP/IP communication requirements in industrial automation systems.
-
SCADA and MES platforms needing ASCII data exchange across networks.
FAQ
Q: Is this module brand new and original?
A: Yes, we supply only 100% original and brand-new ProSoft modules.
Q: Do you have this item in stock?
A: Yes, we typically ship within 3 to 14 days depending on order size.
Q: What software is used for configuration?
A: It uses ProSoft Configuration Builder (PCB) for module setup and configuration
