Product Description

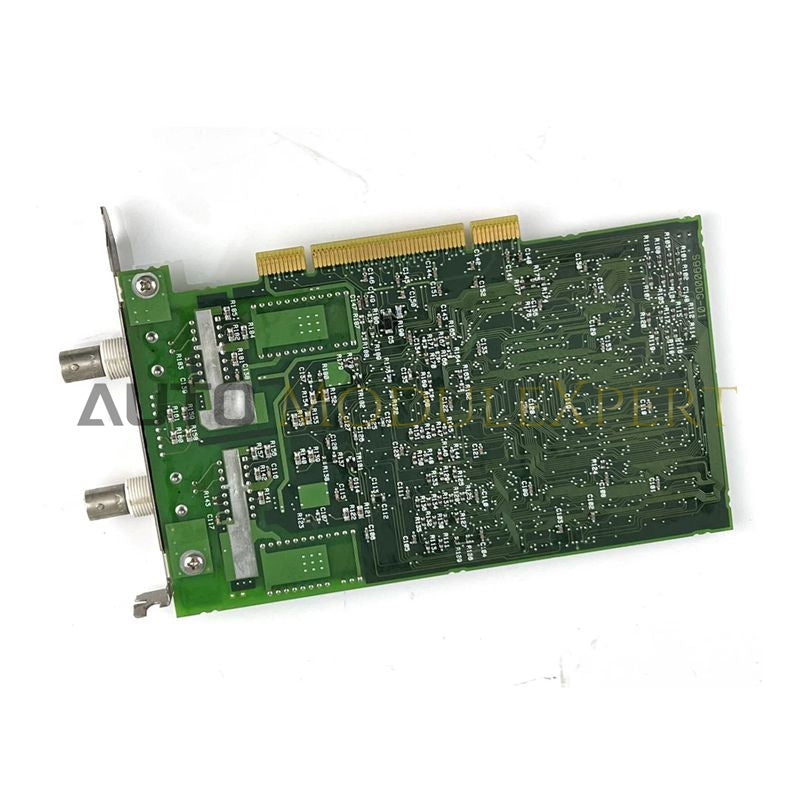

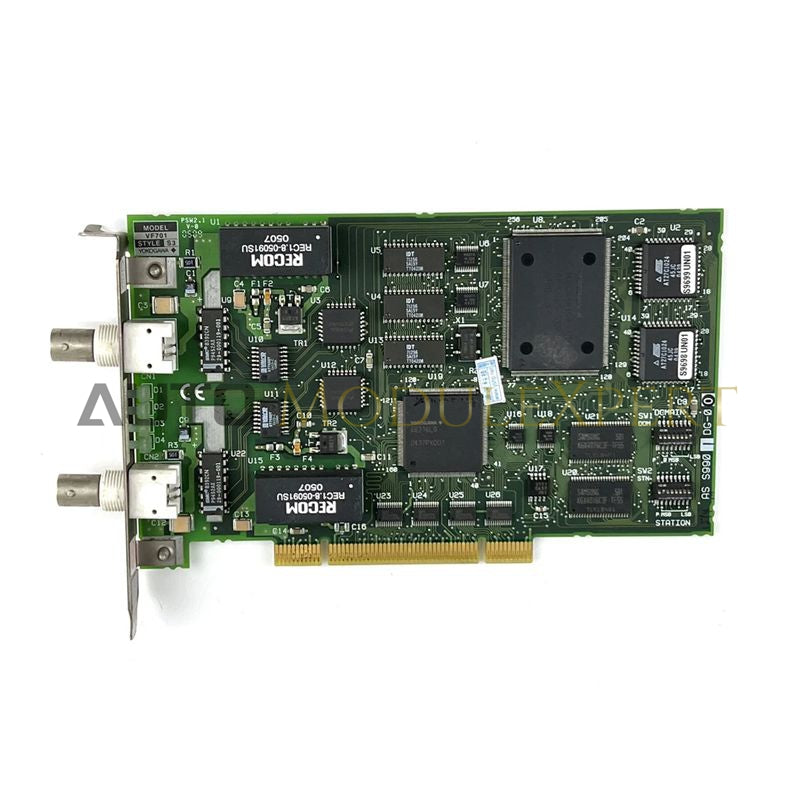

The VF701 S3 is a high-stability Vnet/IP interface card for PCI Express (PCIe) workstations. It connects Human Interface Stations (HIS) and Engineering Stations (ENG) to Yokogawa CENTUM VP and ProSafe-RS networks, providing 1 Gbps deterministic data communication for real-time process control.
The S3 hardware revision introduces improved thermal dissipation, upgraded components, and enhanced long-term reliability. With dual-port RJ45 connectivity, the VF701 S3 supports fully redundant network paths, ensuring continuous operation even if one link fails.
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | VF701 S3 (Part No. VF701-S3) |
| Module Type | Vnet/IP Network Interface Card |
| Interface Bus | PCI Express (PCIe) x1 (Compatible with x1, x4, x8, x16 slots) |
| Network Protocol | Vnet/IP (1 Gbps Full Duplex) |
| Connectivity | Dual RJ45 ports (CAT5e/CAT6 STP) |
| Redundancy | Dual-bus architecture (Bus 1 and Bus 2) |
| System Integration | CENTUM VP, ProSafe-RS |
| Hardware Revision | S3 (Enhanced reliability and signal integrity) |
| Power Supply | PCIe slot powered |
| Maximum Cable Length | 100 m (station to L2 switch) |
| Physical Dimensions | 12.6 cm (H) x 2.2 cm (W) x 12.4 cm (D) |
| Weight | 0.15 kg |
Application Scenarios
-
DCS Operator Stations: Real-time HMI faceplate, alarm, and trend updates.
-
Redundant Network Backbone: Fault-tolerant links to Field Control Stations via dual L2 switches.
-
Safety System Monitoring: High-speed data for ProSafe-RS SOE (Sequence of Events) monitoring.
Product FAQ
Q: Can the VF701 S3 be used in legacy PCI slots?
A: No. The VF701 S3 requires a PCI Express (PCIe) slot and is not compatible with 32-bit or 64-bit legacy PCI slots.
Q: What is the advantage of the S3 revision over S1 or S2?
A: The S3 revision offers improved component reliability, better thermal dissipation, and enhanced long-term stability for high-throughput, continuous data operations.
