Product Description

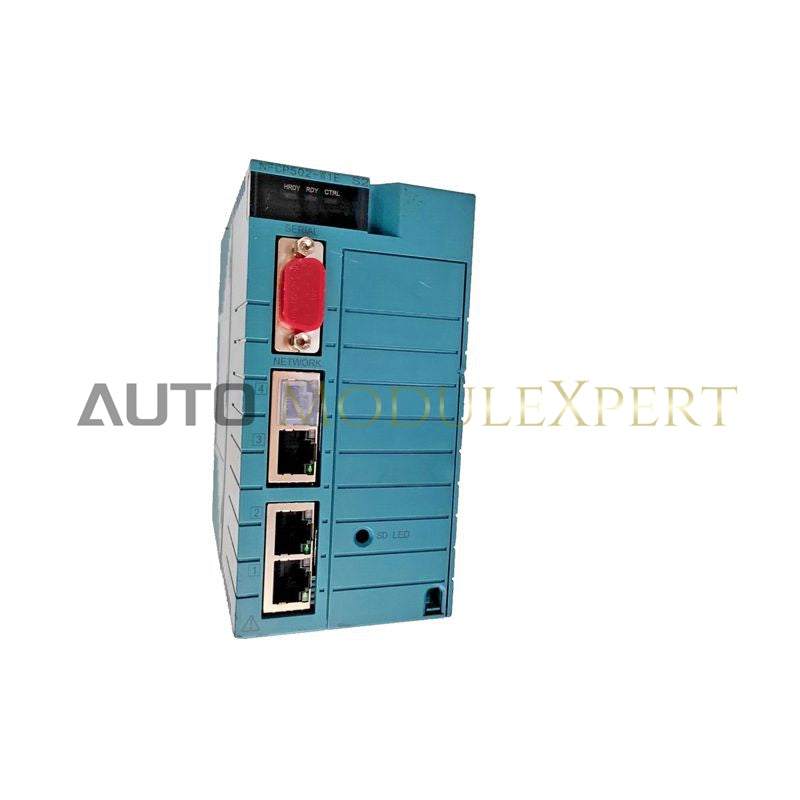

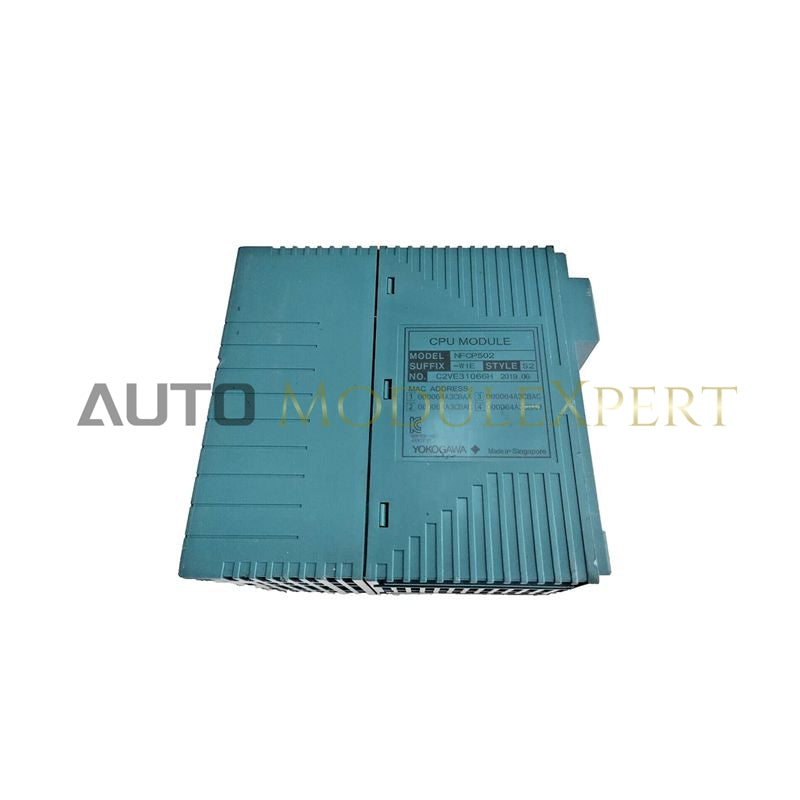

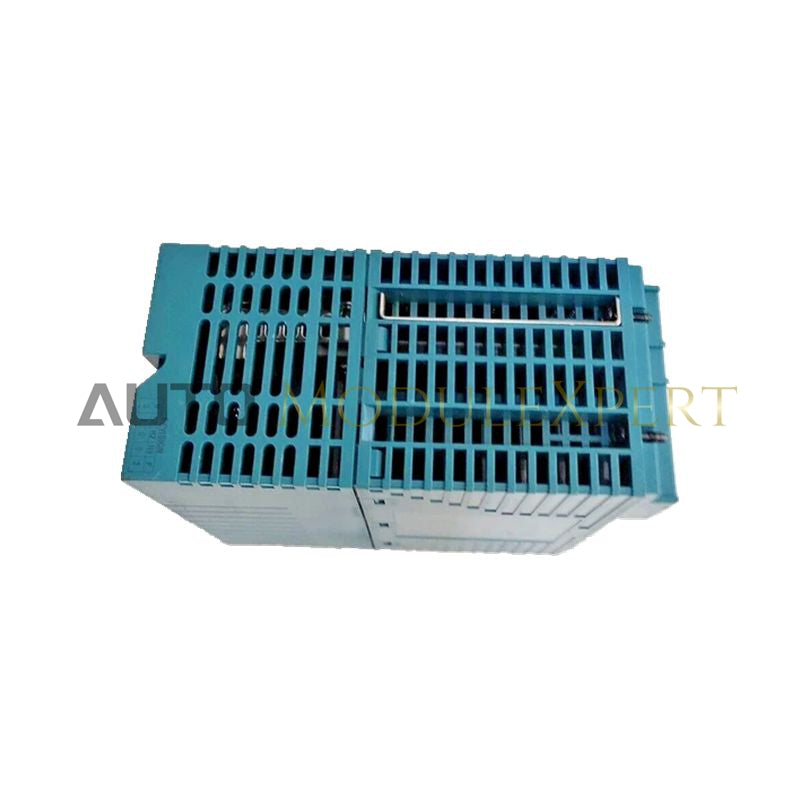

The NFCP501-W05/M01 is a high-availability processing unit engineered for the Yokogawa STARDOM FCN (Field Control Node) architecture. It serves as the intelligent core of the autonomous controller, executing complex logic control, regulatory algorithms, sequence management, and data logging tasks.
Unlike conventional PLCs, this module combines industrial-grade controller reliability with PC-class networking capability. It supports dual-redundant Ethernet configurations, ensuring continuous operation and zero process interruption in critical control loops.
The “W05” designation represents a specific software license or hardware revision within the NFCP501 series, while the “M01” suffix typically identifies the memory card or sub-module configuration. The unit mounts directly onto an FCN base module and provides high-speed backplane communication with connected I/O modules.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| CPU Type | Autonomous Controller Processor |
| Model Number | NFCP501-W05/M01 |
| System Memory | 128 MB SDRAM (ECC supported) |
| Non-volatile Memory | 128 MB Flash |
| Network Interfaces | Dual 100BASE-TX / 10BASE-T Ethernet (RJ45) |
| Local Bus Interface | STARDOM FCN Backplane |
| Diagnostic Indicators | HRDY, RUN, ALRM, ERR LEDs |
| Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
| Dimensions | 22 mm (W) × 124 mm (H) × 126 mm (D) |
| Weight | 0.3 kg |
Typical Application Scenarios
Remote Terminal Units (RTUs)
Well-suited for oil & gas wellhead automation, pipeline monitoring, and remote infrastructure exposed to wide ambient temperature variations.
Redundant Control Systems
Installed in dual configuration within FCN-RTU architectures to deliver CPU-level redundancy for critical infrastructure and continuous process operations.
Distributed Process Control
Manages localized control loops in water treatment plants, renewable energy facilities, chemical processing units, and industrial automation systems.
Frequently Asked Questions
Does the NFCP501-W05/M01 support hot-swapping?
In a redundant FCN configuration, the standby NFCP501-W05/M01 can be replaced without interrupting the active controller’s operation.
What is the difference between NFCP501 and NFCP550?
The NFCP501-W05/M01 is the standard-performance CPU for FCN nodes, while the NFCP550 series typically offers enhanced processing performance or compatibility with later-generation FCN-500 hardware.
Is there a built-in serial port?
Primary communication is handled via the dual Ethernet ports. Serial communication can be implemented using dedicated FCN communication modules.
