Product Overview

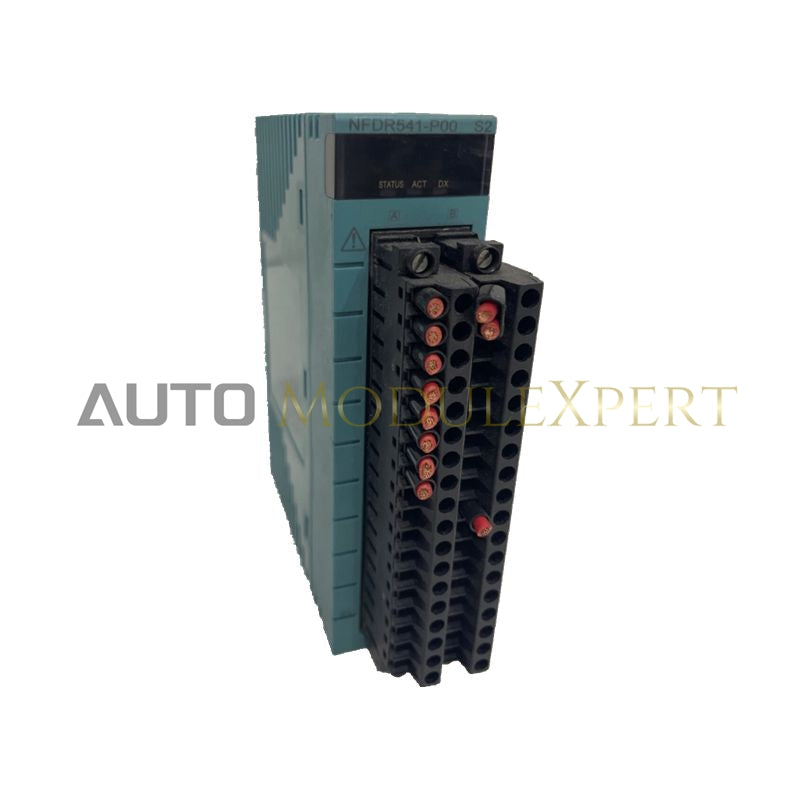

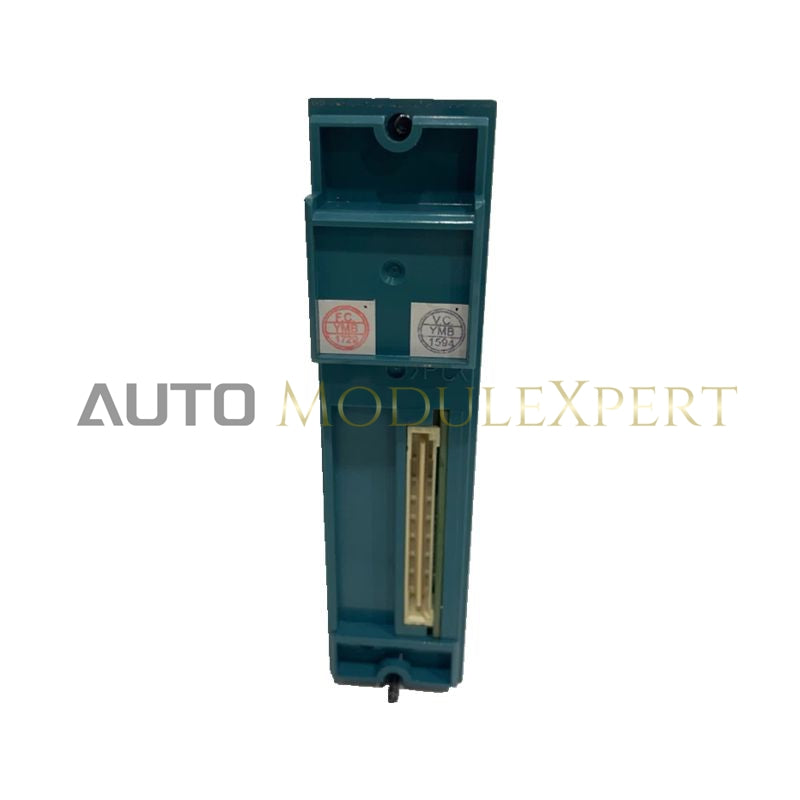

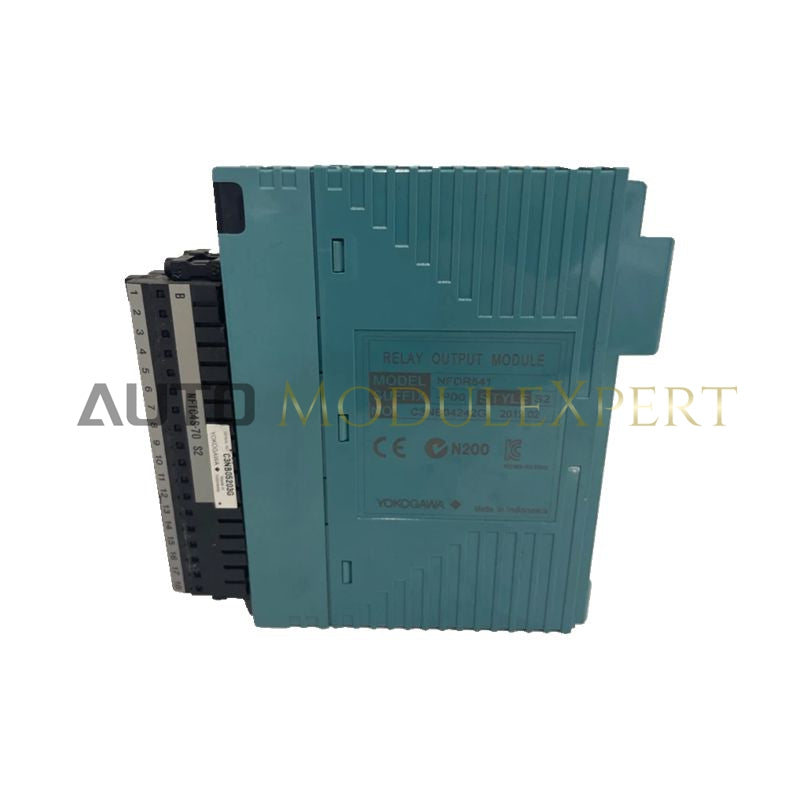

The YOKOGAWA NFDR541-P00 module functions as a Relay Output Module, providing isolated switching control for a variety of field devices. It allows the low-voltage control logic to interface with higher-voltage or AC/DC loads such as solenoids, motor starters, and lights. The use of mechanical relays ensures excellent electrical isolation between the control system and external circuits, enhancing system safety and noise immunity. The module is designed for high-density output and integrates seamlessly into the YOKOGAWA control architecture, making it a versatile switching solution for a wide range of applications.
Detailed Technical Specifications of the NFDR541−P00
| Parameter | Specification |
|---|---|
| Model Number | NFDR541−P00 |
| Category | Relay Output Module |
| Dimensions | 130 mm × 100 mm × 42 mm (H × W × D) |
| Weight | 0.35 kg |
| Operating Temperature | 0 to 55 °C |
Isolation and Switching Capacity
The YOKOGAWA NFDR541-P00 provides excellent electrical isolation through its relay contacts, ensuring safe switching between low-voltage control and higher-voltage or AC/DC loads. This isolation protects the control system and reduces the risk of damage from electrical faults. The switching voltage and switching current capacities vary depending on the specific configuration, so it's important to match these values with the field devices being controlled. Field wiring is managed through high-density connectors, ensuring a stable and reliable interface despite the high number of output channels.
Frequently Asked Questions (FAQ)
Q1: What is the benefit of using a Relay Output Module like the NFDR541−P00?
A1: The main benefit is the electrical isolation provided by the relay contacts, allowing the low-voltage control system to safely switch much higher or different AC/DC voltages and currents in the field.
Q2: How many output points does the NFDR541−P00 module have?
A2: The YOKOGAWA NFDR541-P00 module provides 16 isolated relay output channels.
Q3: What types of devices can the NFDR541−P00 switch?
A3: The module can switch a wide range of discrete loads, including solenoids, pilot lights, small contactors, and motor starter coils.
Q4: What is your policy if the module has a quality issue upon arrival?
A4: We support a 30-day return window if there are any quality issues with the YOKOGAWA NFDR541-P00 module.
