Product Overview

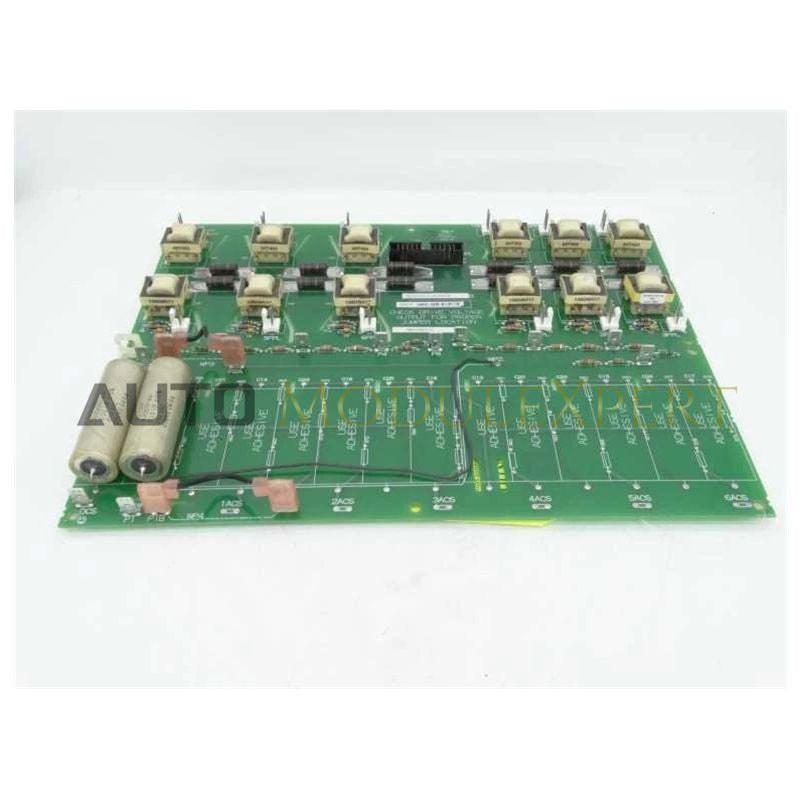

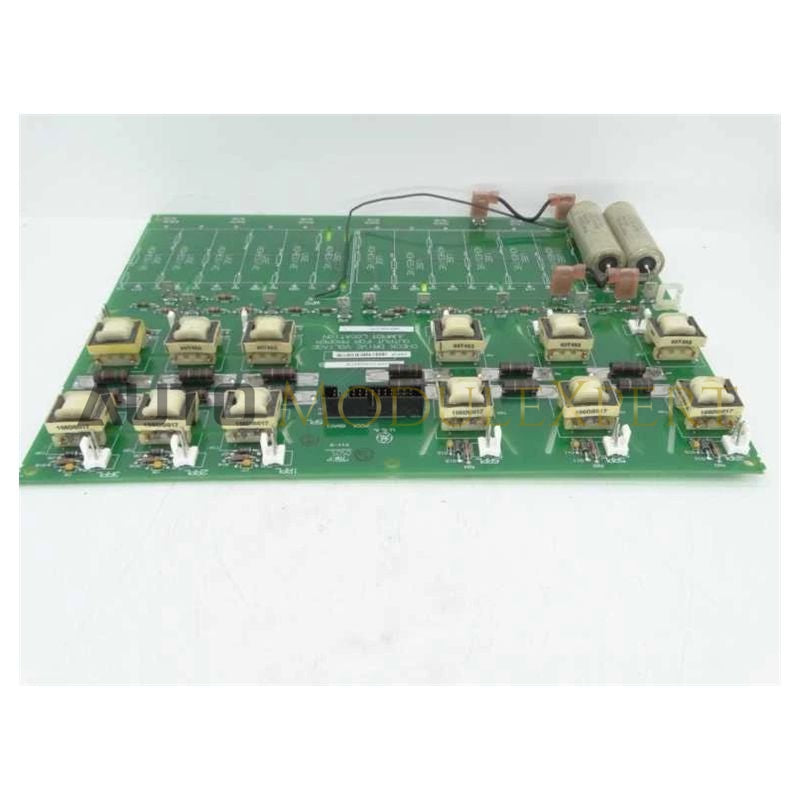

The DS200PCCAG9ACB is a Power Connect Card Assembly developed by General Electric for the Mark V drive control series. This board serves as the primary interface between the drive and the SCR (Silicon Controlled Rectifier) power bridge, facilitating efficient transmission of gate pulses and voltage feedback signals.
Equipped with gate pulse transformers, snubber circuits, and regenerative scaling group G9 components, it ensures stable power regulation, accurate signal transmission, and fault isolation. Designed for high-reliability industrial applications, it is suitable for motor control, turbine drives, and heavy manufacturing.
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS200PCCAG9ACB |
| Series | Mark V DS200 |
| Product Type | Power Connect PCB Circuit Board |
| Dimensions | 16 in × 10 in × 10 in |
| Weight | 0.58kg |
Key Benefits
-
Interfaces SCR bridge with GE Mark V drive systems
-
Includes gate pulse transformers for reliable signal integrity
-
Provides voltage feedback for precise control
-
Supports regenerative drive configurations
-
Built for rugged industrial environments
