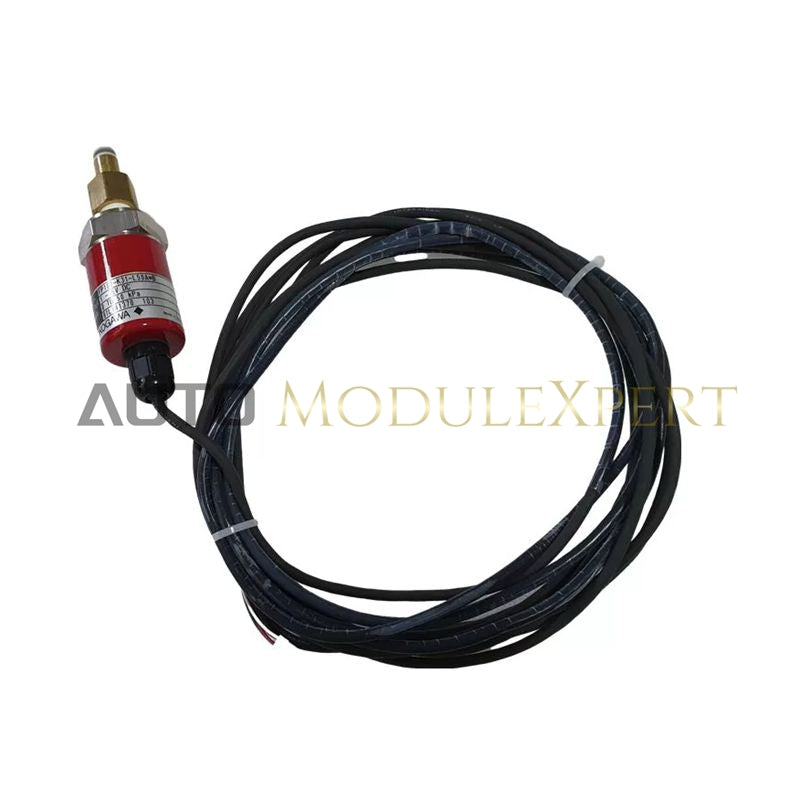

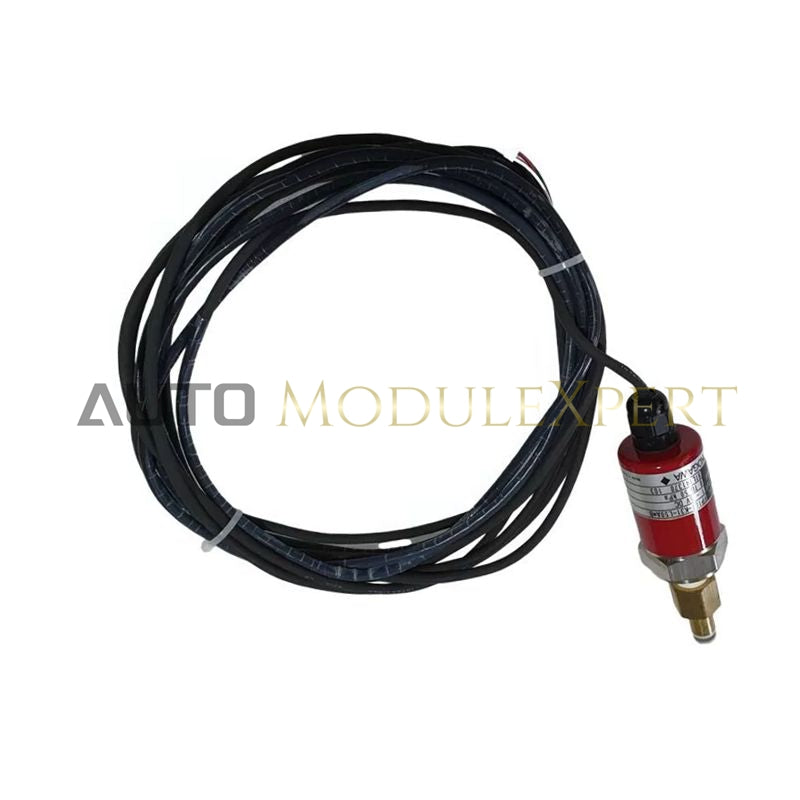

Product Description
The FP101-M31-CN0AB is a high-performance, compact pressure sensor utilizing Yokogawa’s proven silicon micromachining technology. Built upon a legacy of piezo-resistive gauge expertise dating back to 1988, this sensor is engineered for Factory Automation (FA) and precision pneumatic control. Unlike larger field transmitters, the FP101-M31-CN0AB offers a specialized form factor suitable for printed wiring board integration and electro-pneumatic converters, delivering laboratory-grade stability within an industrial-grade housing.
Technical Specifications
| Specification | Details |
|---|---|
| Model Identifier | FP101-M31-CN0A*B |
| Sensing Technology | Silicon micromachined piezo-resistive gauge |
| Calibrated Pressure Range | 0 to 10 kPa |
| Reference Accuracy | ±0.25% of Full Scale (FS) |
| Signal Output | 4 to 20 mA DC analog loop |
| Operating Temperature | -40°C to +85°C (Extended industrial range) |
| Power Supply | Loop-powered via standard 24V DC excitation |
| Package Type | TO-8 style can package or ruggedized module (variant dependent) |
| Long-term Stability | High-reliability crystal silicon structure for minimal zero-point drift |
| Application Compatibility | Air conditioning, medical appliances, and semiconductor manufacturing |
Operational Excellence and Design
The FP101-M31-CN0A*B bridges the gap between delicate board-level sensors and bulky process transmitters. Its rugged construction ensures durability against mechanical vibration and thermal cycling, making it a preferred choice for cleanroom environments and precision air-handling units. By leveraging the same foundational technology found in Yokogawa’s high-end DPharp series, this sensor provides exceptional linearity even at very low pressure scales (under 10 kPa).
Application Scenarios
This sensor is primarily deployed in high-tech manufacturing sectors where precise air pressure or gas flow monitoring is vital. Common installations include:
-
Electro-pneumatic signal converters (I/P units)
-
Cleanroom differential pressure monitoring
-
Medical ventilator pressure regulation
-
Specialized semiconductor gas delivery systems
FAQ
Q: Can the FP101-M31-CN0A*B handle corrosive gases?
A: The standard FP101-M31-CN0A*B is designed for non-corrosive air and dry gases. For aggressive chemical media, please verify the wetted material compatibility or use an isolation diaphragm.
Q: Is this sensor compatible with DPharp resonant technology?
A: No, the FP101-M31-CN0A*B uses piezo-resistive technology, which is optimized for small-footprint applications, whereas the DPharp series utilizes single-crystal silicon resonance for higher-tier plant instrumentation.
