Product Description

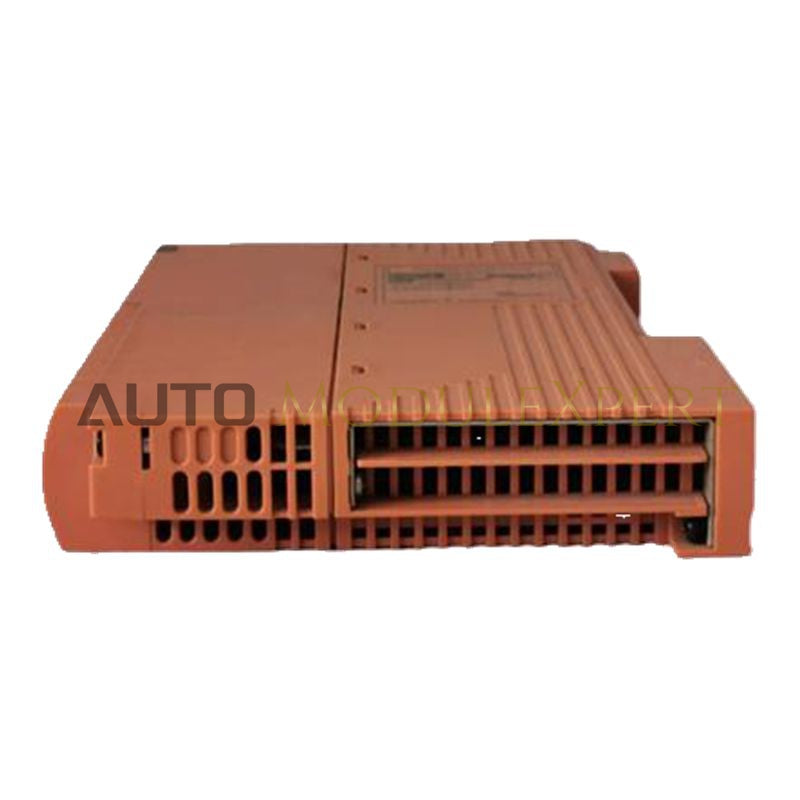

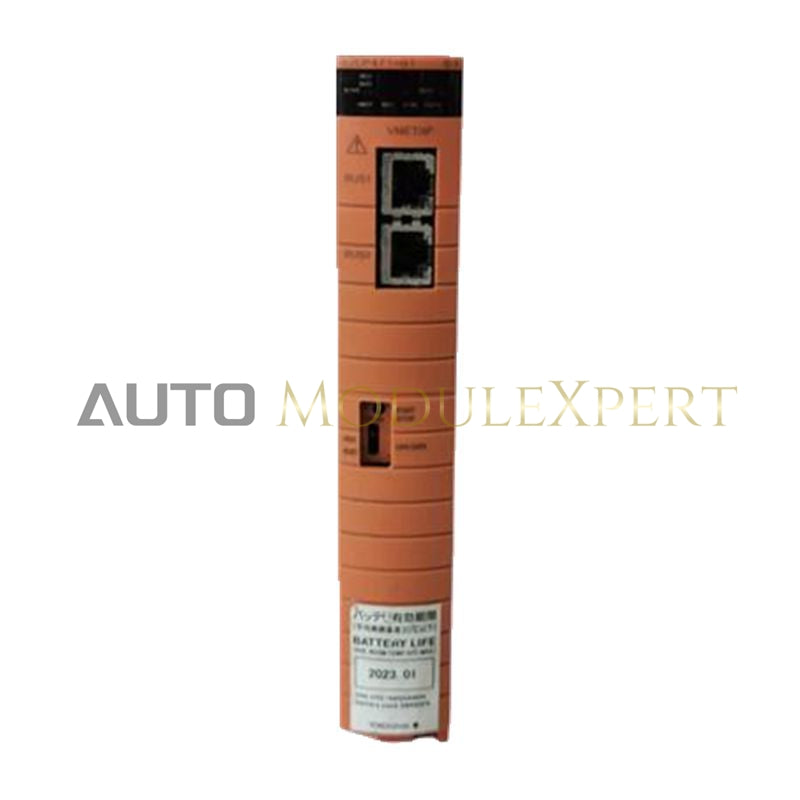

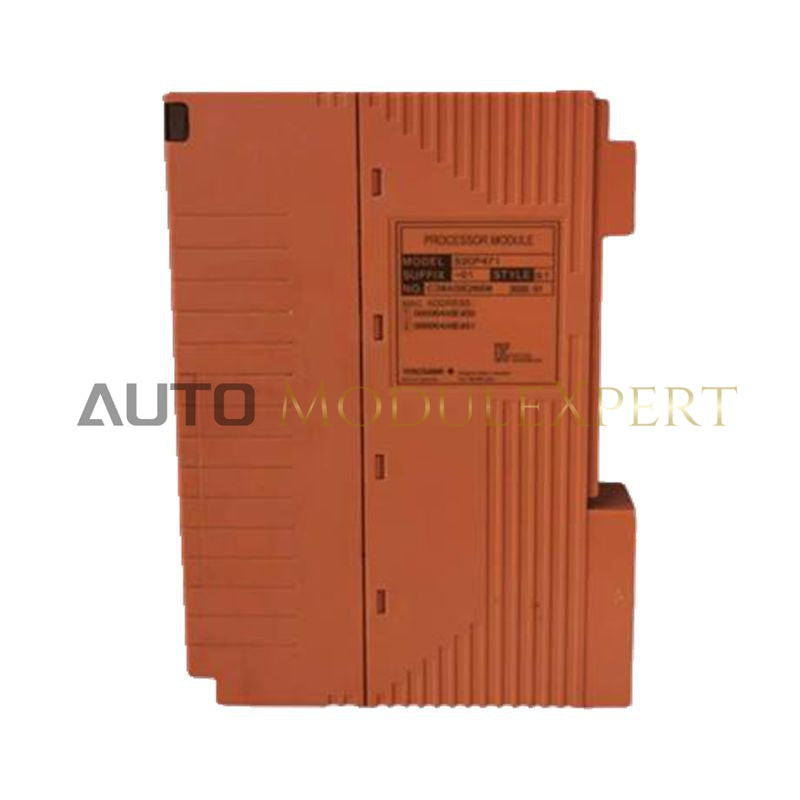

The S2CP471-01 is a high-integrity central processor designed for Yokogawa ProSafe-RS Safety Instrumented System (SIS). It is engineered for Safety Integrity Level 3 (SIL3) applications, providing the rigorous logic execution required for emergency shutdown (ESD), fire & gas (F&G) systems, and burner management.
Optimized for SSC60 and S2SC70 safety control units, the module features a dual-microprocessor architecture with continuous internal cross-checking. It supports dual-redundant bumpless failover and integrates seamlessly with CENTUM VP DCS networks via Vnet/IP. This variant includes ISA G3 conformal coating for reliable operation in corrosive industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Primary Processor | Dual-redundant safety execution engine (1 GHz typical) |
| Safety Certification | SIL3 (IEC 61508) |
| System RAM | 2 GB SDRAM |
| Non-Volatile Storage | 512 MB Flash for safety logic and configuration |
| Hardware Suffix | -01 (Standard type with ISA G3 conformal coating) |
| Redundancy Modes | Duplexed (hot backup) and Single configuration |
| Network Communication | Vnet/IP (dual-redundant interface) |
| Field Communication | Modbus RTU, HART, Profibus |
| Battery Backup | S9450FE (3-year replacement recommended) |
| Power Supply | 24 VDC (±20%) |
| Power Consumption | 15 W typical |
| Operating Temperature | -20°C to 60°C |
| Ingress Protection | IP20 (Indoor/Cabinet mounting) |
| Dimensions (W × H × D) | 150 mm × 100 mm × 180 mm |
| Net Weight | 1.2 kg |
Installation & Maintenance Notes
-
Compatibility: Requires ProSafe-RS R3.01 or later (R4.01+ for S2SC70 mounting).
-
Migration Support: Can replace legacy SCP461 modules; replacement must be performed by Yokogawa-authorized personnel to maintain safety integrity.
-
Firmware: Ensure the latest software patches are applied for CENTUM VP / ProSafe-RS co-existence.
Frequently Asked Questions
Q: Can S2CP471-01 coexist with SCP461 in the same redundant pair?
A: No. In duplexed configurations, both modules must be identical. Mixing S2CP471-01 and SCP461 is not supported.
Q: What is the significance of the ISA G3 rating?
A: The G3 rating means the PCB is treated with conformal coating to resist corrosion from sulfur, chlorine, or other reactive gases.
Q: Is the battery replaceable while the system is online?
A: Yes. The S9450FE battery can be replaced while powered, provided the system is redundant to prevent data loss.
