Overview

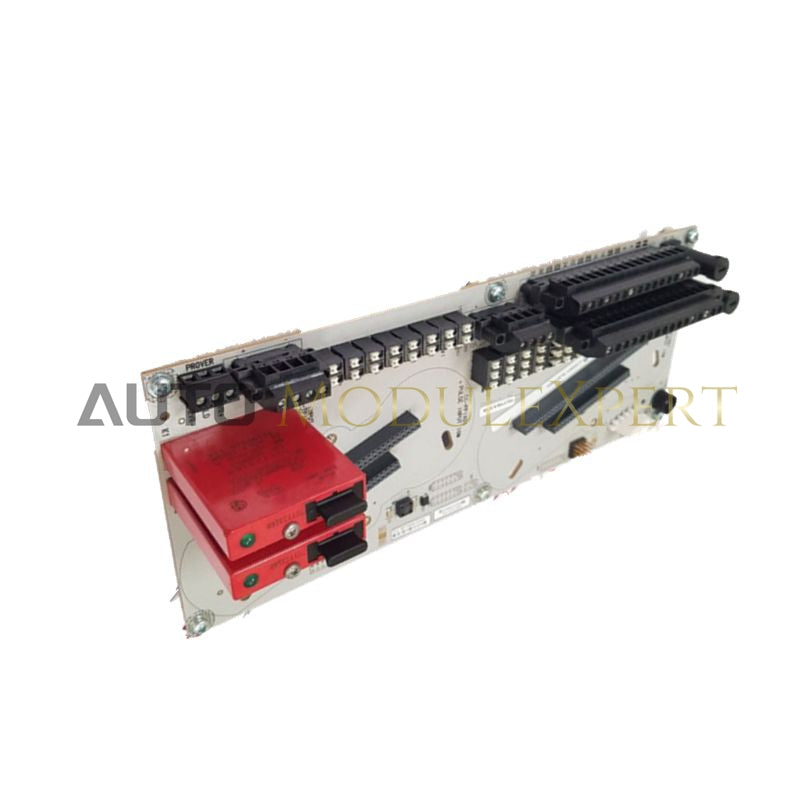

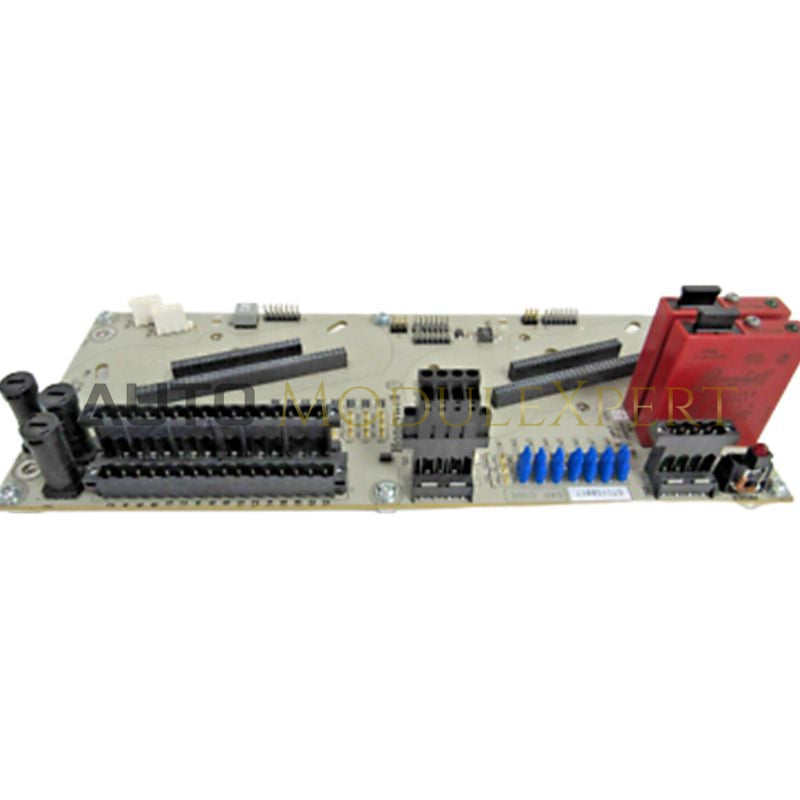

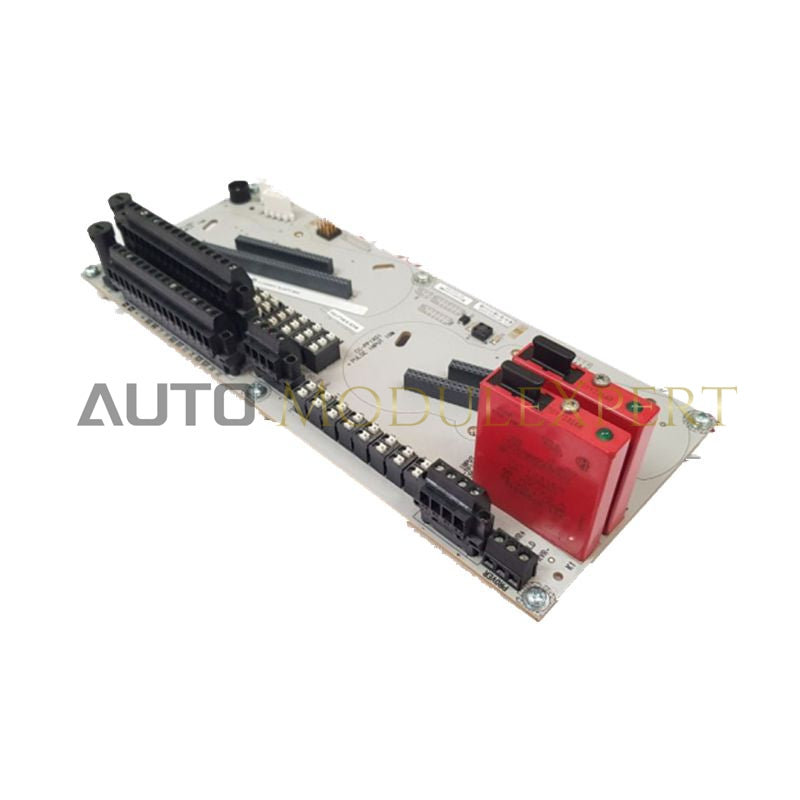

The Honeywell CC-TPIX11 is a redundant pulse input module designed for the Experion Series C Distributed Control System (DCS). It captures and processes high-speed pulse signals from field devices such as flow meters, gas meters, and turbine generators, providing precise and reliable measurement in industrial applications.
Moreover, the module supports dual-channel pulse inputs compliant with ISO 6551 / API 5.5 standards, enabling accurate detection of frequency, period, and pulse width. It includes channel-to-channel and channel-to-power galvanic isolation, comprehensive self-diagnostics, and optional redundancy to maintain system reliability and uptime in critical environments.
Its compact and robust design allows deployment in harsh industrial conditions, including oil & gas, chemical processing, and power generation facilities, where accuracy, durability, and compliance are essential.
Technical Data
| Specification | Details |
|---|---|
| Part Number | CC-TPIX11 |
| Product Type | Redundant Pulse Input Module |
| Dimensions | 63.5 × 124.5 × 307.3 mm |
| Weight | 0.5 kg |
Typical Applications
-
Flow Measurement Systems: Captures pulse signals from flow meters for accurate fluid volume tracking.
-
Turbine Monitoring: Measures high-speed pulses from turbine generators to monitor rotational speed and performance.
-
Custody Transfer: Provides high-accuracy metering for oil & gas transactions, ensuring compliance with regulatory standards.
-
Utility Metering: Collects pulse data from water, gas, and electricity meters for billing and analysis.
-
Industrial Speed Monitoring: Interfaces with tachometers and encoders to track machine speed and detect anomalies.
For example, in a natural gas distribution station, the CC-TPIX11 accurately captures pulses from turbine meters, enabling precise billing, regulatory reporting, and operational efficiency. Therefore, it is critical for both measurement accuracy and compliance.
FAQ
Q: How many input channels does the CC-TPIX11 support?
A: It supports 8 single-ended or 4 differential pulse input channels.
Q: Is this module suitable for custody transfer applications?
A: Yes, it complies with ISO 6551 / API 5.5 standards, providing high-accuracy pulse measurement.
Q: Can it operate in redundant configurations?
A: Yes, redundancy is supported to enhance system reliability.
Q: What types of signals can it process?
A: It can measure frequency, period, and pulse width from digital pulse sources.
Q: Is it compatible with Honeywell’s Experion Series C?
A: Yes, it is specifically designed for integration with Experion Series C DCS.
