Product Description

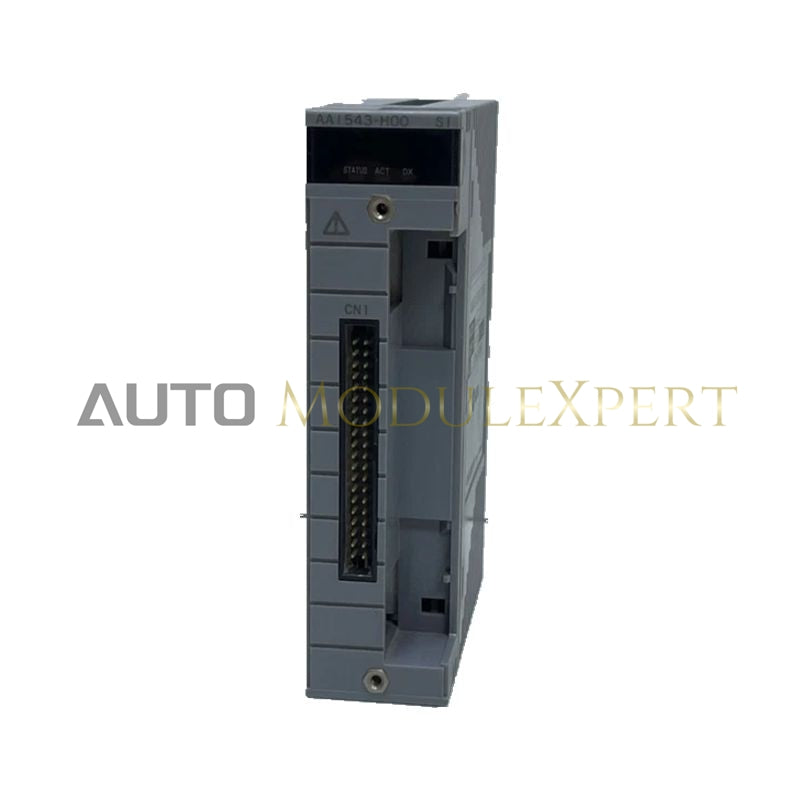

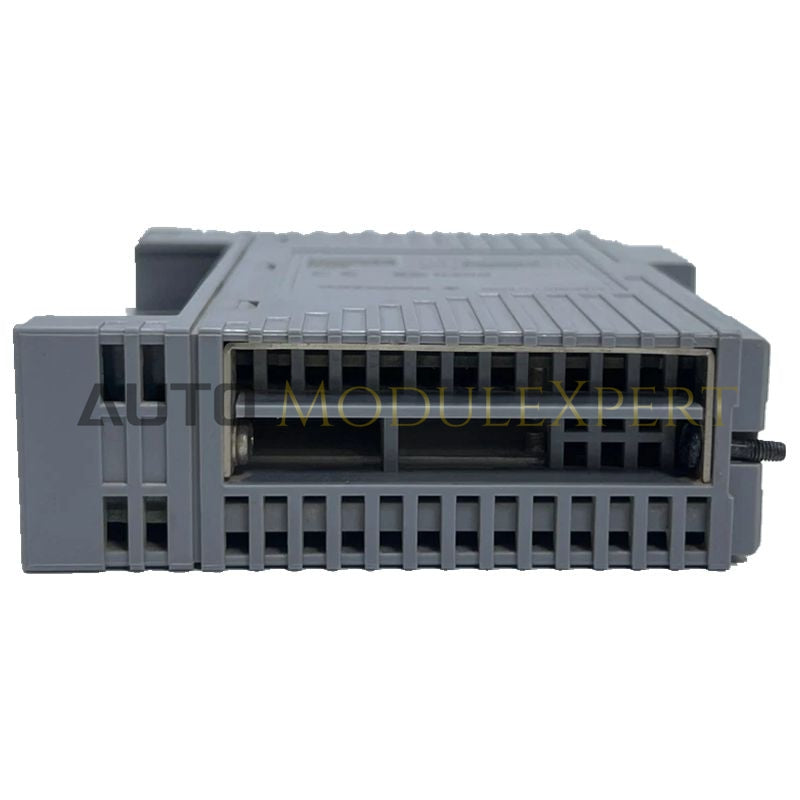

The AAI543 (P/N: AAI543-H60) is a high-density analog output module for the Yokogawa CENTUM VP integrated production control system. It provides 16 fully isolated current output channels (4–20 mA) for driving critical final control elements such as valve positioners and actuators.
The H-suffix indicates full HART digital communication, enabling remote access to secondary variables, diagnostics, and device configuration. The 60 suffix designates dual-redundant capability, allowing the module to operate in redundant I/O nests for uninterrupted process control, even in case of hardware failure.
Each channel is galvanically isolated, protecting the system from electrical surges and ground loops, while ensuring high-precision control signals for demanding industrial applications.
Technical Specifications
| Item | Specification |
|---|---|
| Output Configuration | 16 × analog current output, fully isolated |
| Signal Output | 4 to 20 mA DC |
| Redundancy | Dual-redundant operation (H60) |
| Communication Protocol | HART (bidirectional) |
| Isolation Voltage | 500 V AC (channel-to-system) |
| Output Accuracy | ±48 µA |
| Load Resistance | Optimized for standard industrial actuators |
| Interface | Pressure clamp terminal blocks or KS cable adapters |
| Safety Type | Basic type, non-explosion protected |
| Update Interval | High-speed, real-time signal processing |
Application Use Cases
The AAI543-H60 is ideal for mission-critical control loops in oil & gas, pharmaceutical, and power generation industries.
Its 16-channel density combined with redundant operation makes it well suited for complex valve manifolds, where uninterrupted control is essential to prevent process downtime or safety incidents.
FAQ
What does the "60" suffix indicate compared to the "50" suffix?
The 60 suffix supports dual-redundant operation, whereas the 50 suffix is a single-module configuration. Redundant modules ensure seamless takeover if one unit fails.
Is this module compatible with HART 7 field devices?
Yes. Yokogawa HART-enabled modules like the AAI543-H60 are fully compatible with HART 7 and earlier protocols, enabling integration with modern smart positioners and digital valve controllers.
