Product Overview

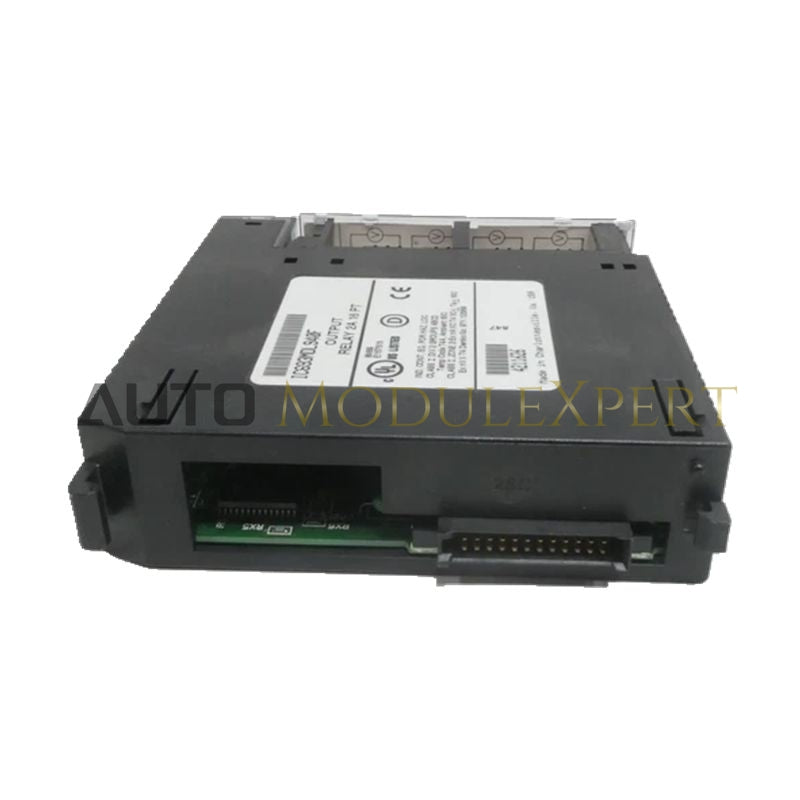

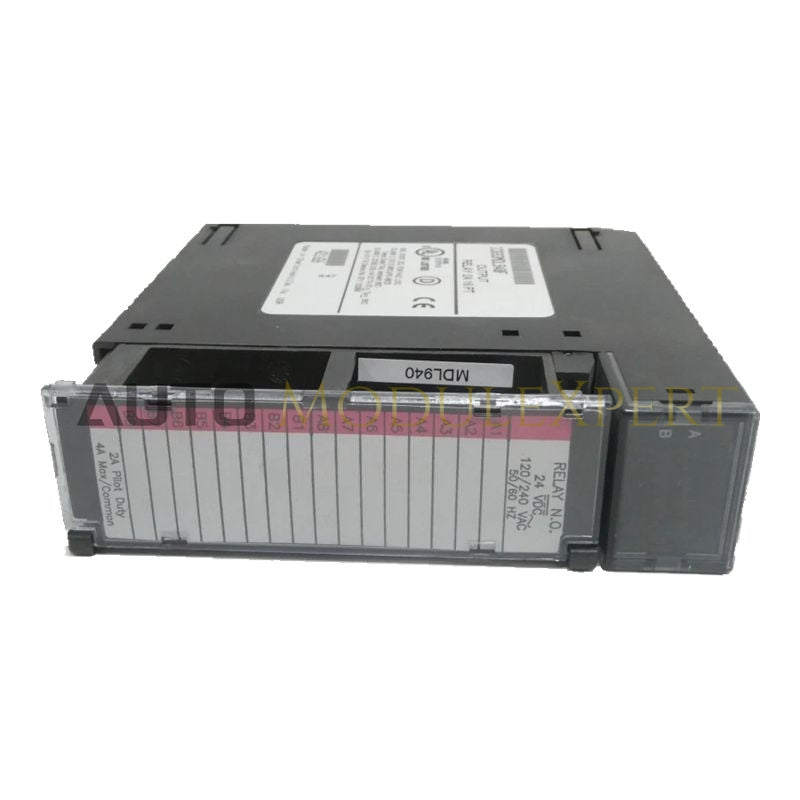

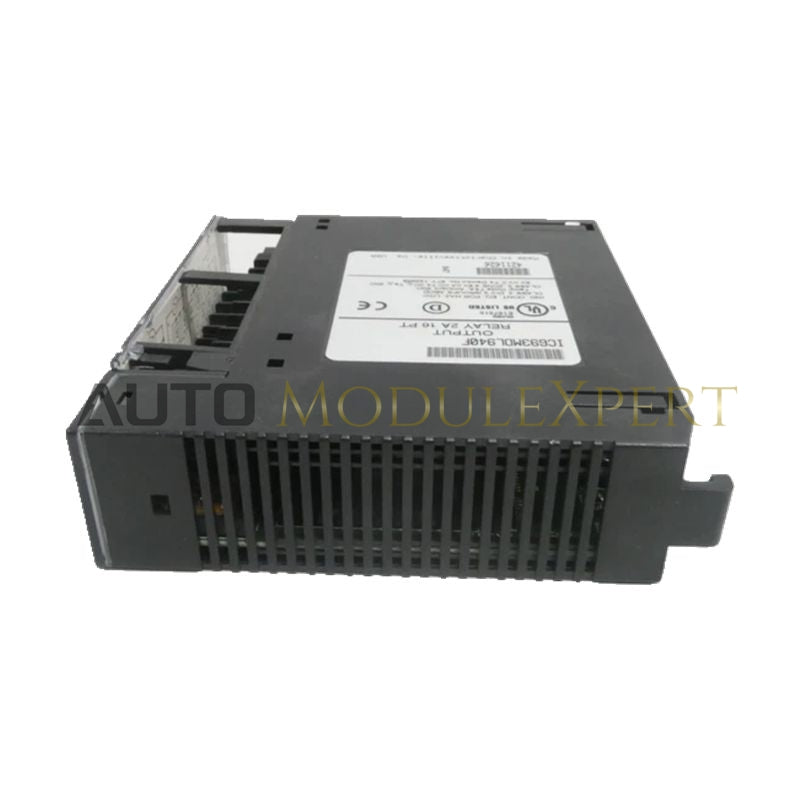

The IC693MDL940 is a high-reliability relay output module for the GE Fanuc Series 90-30 PLC platform. It provides 16 discrete Form A relay outputs, organized into two isolated groups of eight. This module enables direct switching of field devices such as motor starters, solenoid valves, and indicator lamps via physical contact closure. Supplied as 100% brand new and original equipment to ensure long-term operational reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Relay Output (Form A) |
| Output Points | 16 (2 groups of 8) |
| Rated Voltage | 24V DC, 120/240V AC |
| Operating Voltage Range | 5–30V DC / 5–250V AC |
| Max Load Current | 2A per point (4A per common) |
| Minimum Load | 10 mA |
| Response Time | 15 ms (max) |
| Isolation | 1500V (field to logic) |
| Power Consumption | 7 mA @ 5V (backplane) |
Engineering Advantages
-
Flexible Load Switching: Supports both AC and DC loads via dry relay contacts.
-
Dual Isolated Groups: Enables control of two independent voltage sources.
-
Service-Friendly Design: Removable terminal block reduces wiring downtime.
-
Extended Relay Life: Compatible with external arc suppression for inductive loads.
-
High Output Density: 16 outputs in a single slot optimize panel space.
FAQs
Can it handle AC and DC loads at the same time?
Yes, each isolated group can operate with different voltage types (AC/DC).
Are the relays replaceable individually?
No, relays are board-mounted; the entire module must be replaced if one fails.
How does it compare to a Triac module?
Relay outputs provide true dry contacts and support both AC/DC, while Triac modules are AC-only with leakage current.
Is this unit new or surplus?
It is supplied as 100% brand new in original factory packaging.
