Overview

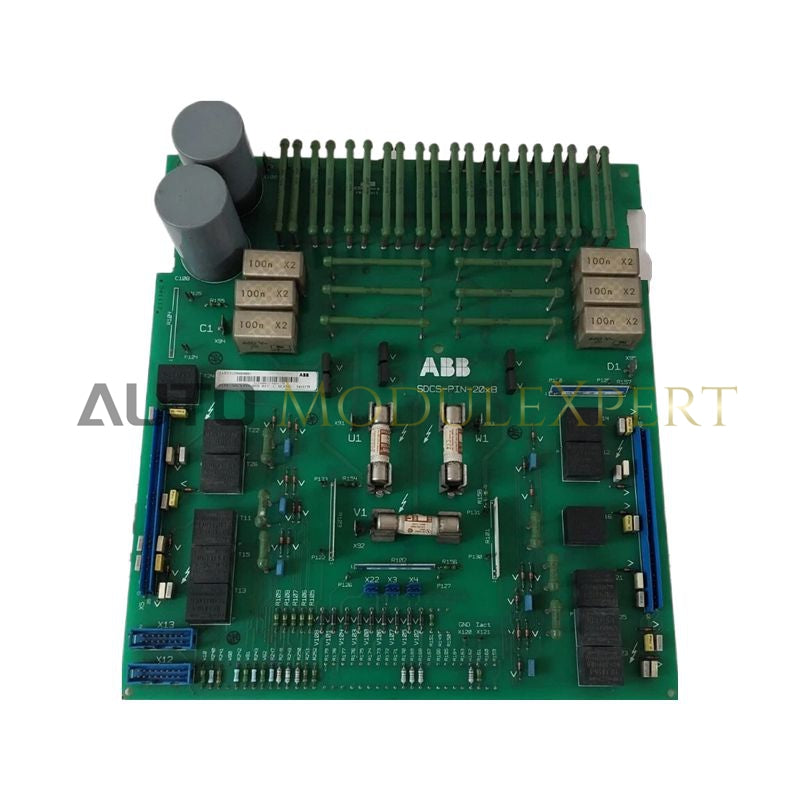

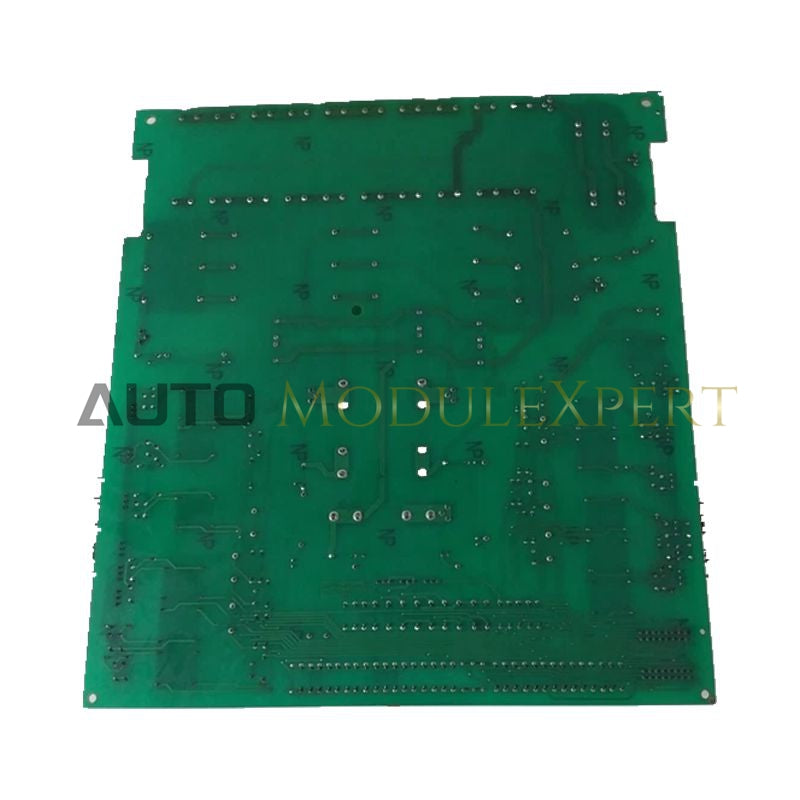

The ABB SDCS-PIN-205B is a robust power interface board designed for ABB’s DCS500 and DCS600 DC drive systems. It plays a critical role in linking the control electronics with the power section, ensuring reliable signal transmission and electrical isolation. This board is engineered for high-current industrial applications, offering dependable performance in harsh environments.
With its compact footprint and durable construction, the SDCS-PIN-205B is ideal for both new installations and retrofit projects. It simplifies system integration by managing control logic, power distribution, and protection functions within the drive. Moreover, its compatibility with ABB’s legacy drive platforms makes it a trusted choice for long-term maintenance and system upgrades.
In addition, the board’s design supports efficient thermal management and electromagnetic noise immunity, which are essential in demanding industrial settings such as steel mills, paper plants, and mining operations.
Technical Data
| Parameter | Specification |
|---|---|
| Model | SDCS-PIN-205B |
| Function | Power interface board for DC drives |
| Dimensions (L × W × H) | 220 mm × 130 mm × 45 mm |
| Weight | 0.7 kg |
| Operating Temperature | –10°C to +55°C |
Typical Applications
-
DC Motor Control: Used in heavy-duty industrial environments such as steel and paper production lines.
-
Power Interface: Functions as a power interface for 3-phase field supply converters in electrochemical and metallurgical plants.
-
Retrofit and Maintenance: Ideal for the retrofit and maintenance of legacy ABB DCS500/DCS600 drive systems.
-
Signal Routing: Provides signal routing and logic processing in high-current converter cabinets.
-
Custom Automation Panels: Integrated into custom-built automation panels requiring robust DC drive control.
For instance, in a rolling mill, the SDCS-PIN-205B ensures stable communication between the control unit and power electronics, maintaining precise torque and speed regulation under fluctuating loads.
FAQ
Q: What drives are compatible with the SDCS-PIN-205B?
A: It is designed for ABB’s DCS500 and DCS600 DC drive systems.
Q: What is the board’s primary function?
A: It serves as a power interface, linking control logic with the drive’s power section.
Q: Can it be used in retrofit applications?
A: Yes, it’s ideal for replacing or upgrading components in existing ABB DC drive systems.
Q: Is the board suitable for high-current environments?
A: Absolutely. It supports converters rated from 100 A to 1000 A at 500 V.
Q: What protection features are included?
A: It offers electrical isolation and is designed for thermal and EMI stability.
| Quick Quotes | Receive price & availability FAST from our dedicated customer service team. |
|---|---|
| Delivery | Expedited, Freight, And International Shipping Available. |
| Condition | 100% New with Original Package |
| Payment | We accept American Express, Discover, MasterCard, PayPal, and Visa. Our site is secured by RapidSSL. |
| Shipping Port | ShangHai, Xiamen |
| Warranty | 12 Months |
