Product Description

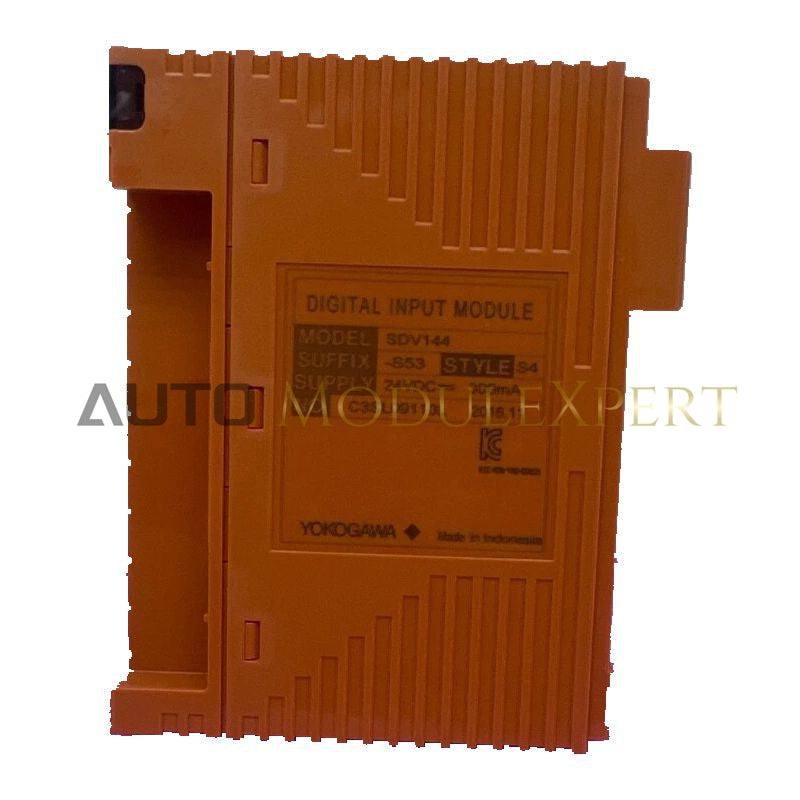

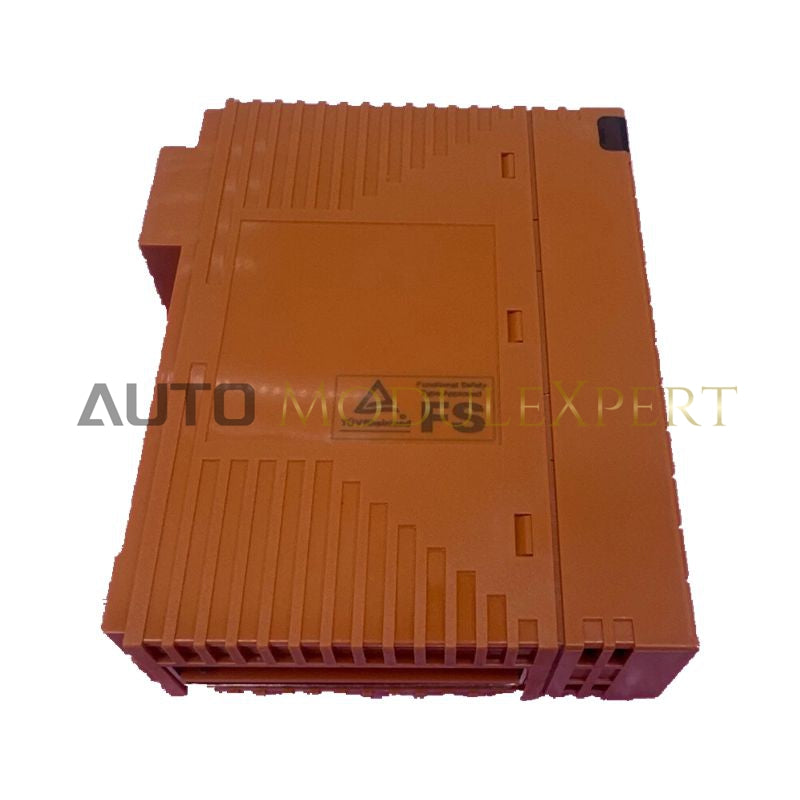

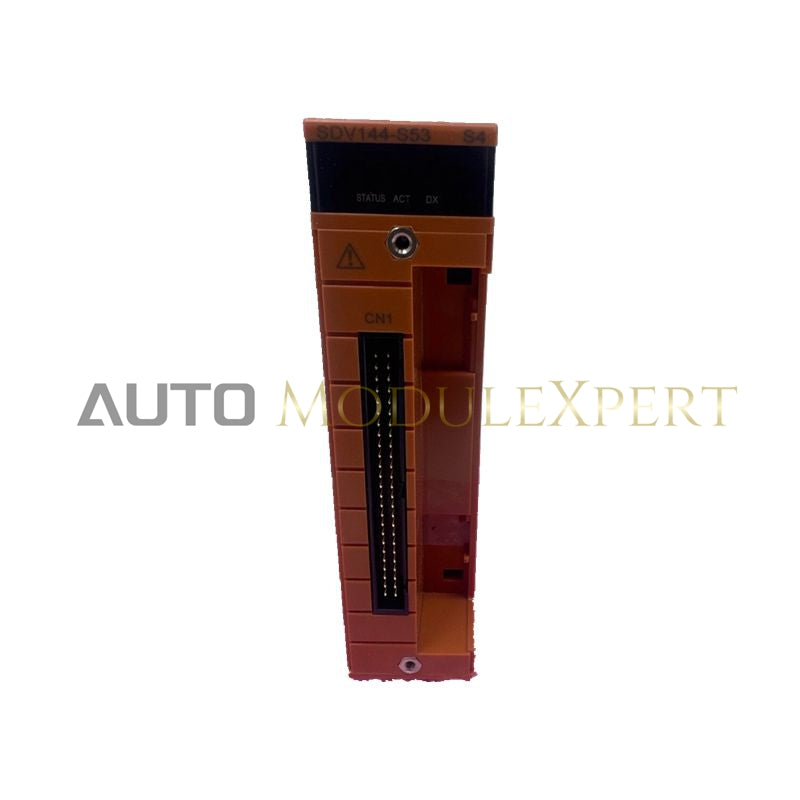

The Yokogawa SDV144-S53/B4S00 is a high-reliability, safety-certified 16-channel digital input module engineered for the ProSafe-RS Safety Instrumented System (SIS). Designed as a SIL 3-certified safety module, it monitors critical field signals such as emergency stops (ESD), flame detectors, and safety switches, ensuring reliable detection and rapid safety response.
The S53 configuration provides enhanced durability, featuring ISA Standard G3 corrosive gas resistance and an extended operating temperature range of -20 to 70°C. The /B4S00 option equips the module with a pressure clamp terminal block, allowing for direct field wiring and simplifying installation in compact safety cabinets. Continuous internal self-diagnostics ensure any internal or field-side fault is immediately detected, maintaining maximum safety integrity.
Technical Specifications
| Feature | Specification |
|---|---|
| Module Type | Safety Digital Input (ProSafe-RS) |
| Number of Channels | 16 channels, individually isolated |
| Input Signal Type | No-voltage contact (Dry contact) |
| Logic Thresholds | ON ≤ 1 kΩ, OFF ≥ 100 kΩ |
| Connectivity | Pressure Clamp Terminal Block (/B4S00) |
| Environmental Protection | ISA Standard G3 Corrosive Gas Resistance |
| Operating Temperature | -20 to 70°C |
| Safety Integrity | SIL 3 certified |
| Response Time | ≤ 40 ms |
| Isolation | 2 kV AC (Signal to System) |
| Power Consumption | Max 290 mA at 5 V DC, Max 140 mA at 24 V DC |
| Weight | 0.4 kg |
Application Scenarios
The SDV144-S53/B4S00 is ideal for refineries, chemical plants, and offshore platforms, particularly in harsh environments with corrosive gases such as $H_{2}S$ or $Cl_{2}$. Its integrated pressure clamp terminal allows direct wiring, reducing installation complexity and improving reliability in compact safety cabinets.
Technical FAQ
Can this module be used in a standard CENTUM VP DCS?
No. The SDV144 must be hosted in a ProSafe-RS safety node. While the CENTUM VP system can monitor status, the safety logic and internal diagnostics operate solely within ProSafe-RS.
What is the benefit of the S53 configuration?
The S53 variant offers extended temperature tolerance (-20 to 70°C) and G3 conformal coating, making it suitable for coastal or unconditioned enclosures, unlike standard versions rated 0–60°C without G3 protection.
