Product Description

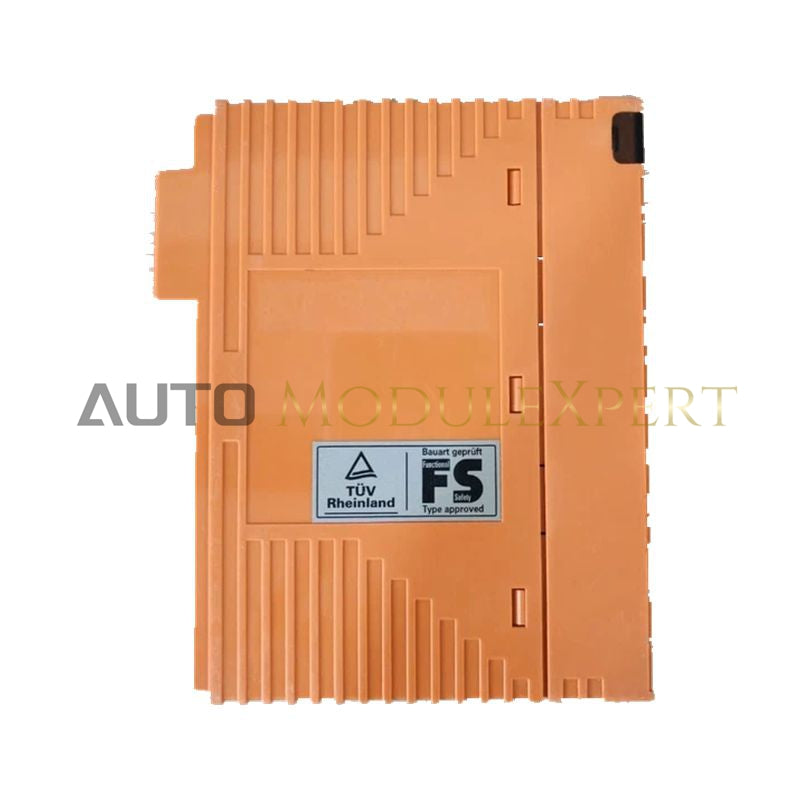

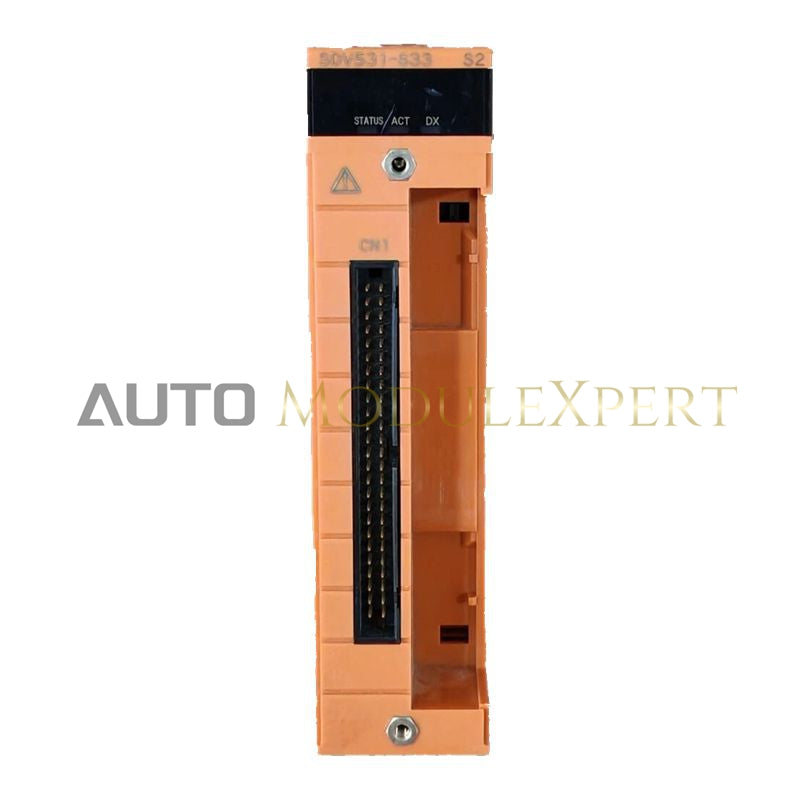

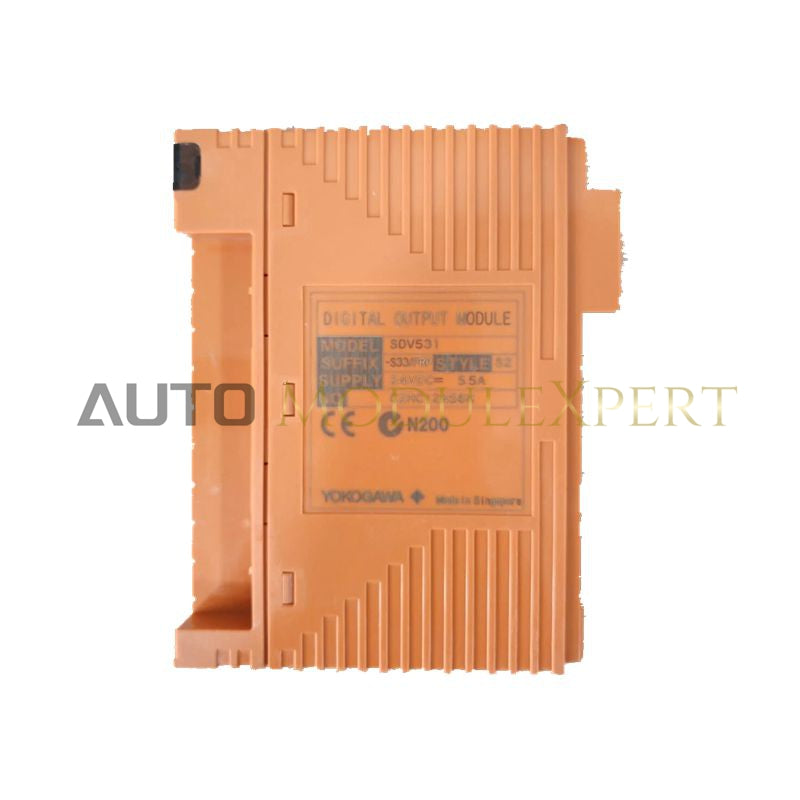

The SDV531-S33 S2 is a high-integrity 8-channel safety digital output module engineered for the Yokogawa ProSafe-RS Safety Instrumented System (SIS). This S2-revision module provides 24 V DC current-source outputs to drive critical field elements such as solenoid valves and safety relays.
Each output channel is electrically isolated, preventing field-side disturbances from propagating to the system backplane and maintaining SIL3 safety compliance. The module is optimized for low voltage drop and minimal leak current, preventing unintended actuation of sensitive devices.
Designed for high-performance safety loops, it features advanced diagnostics and a rapid 30 ms response time, ensuring precise execution of energize-to-trip or de-energize-to-trip safety logic.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Channels | 8 channels, current source (sourcing) |
| Rated Output Voltage | 24 V DC |
| Output Voltage Drop | Max. 1 V |
| External Power Requirement | 24 V DC (+20% / -10% tolerance) |
| Max Load Current | 0.6 A per channel (4.8 A total) |
| Min Load Current | 35 mA (required for diagnostic monitoring) |
| Load Resistance Range | 40 Ω – 685 Ω |
| Leak Current (OFF state) | Max. 1.6 mA |
| Response Time | ≤ 30 ms |
| Isolation/Withstand Voltage | 2 kV AC between outputs and system logic |
| Internal Power Consumption | 280 mA @ 5 V DC / 140 mA @ 24 V DC |
| Weight | 0.34 kg |
Application Scenarios
The SDV531-S33 S2 is ideal for localized safety control loops in:
-
Refineries
-
Gas processing plants
-
Chemical processing facilities
It is particularly suited for controlling a compact set of final elements where 8-channel density is more space- or cost-efficient than larger 16-channel modules.
Minimum Load Current Significance
The 35 mA minimum load is essential for proper pulse-test diagnostics. Loads drawing less than this threshold—such as high-impedance LEDs or small relays—may trigger false "open loop" alarms. In such cases, a dummy resistor can be added to meet the minimum current requirement.
