Product Description

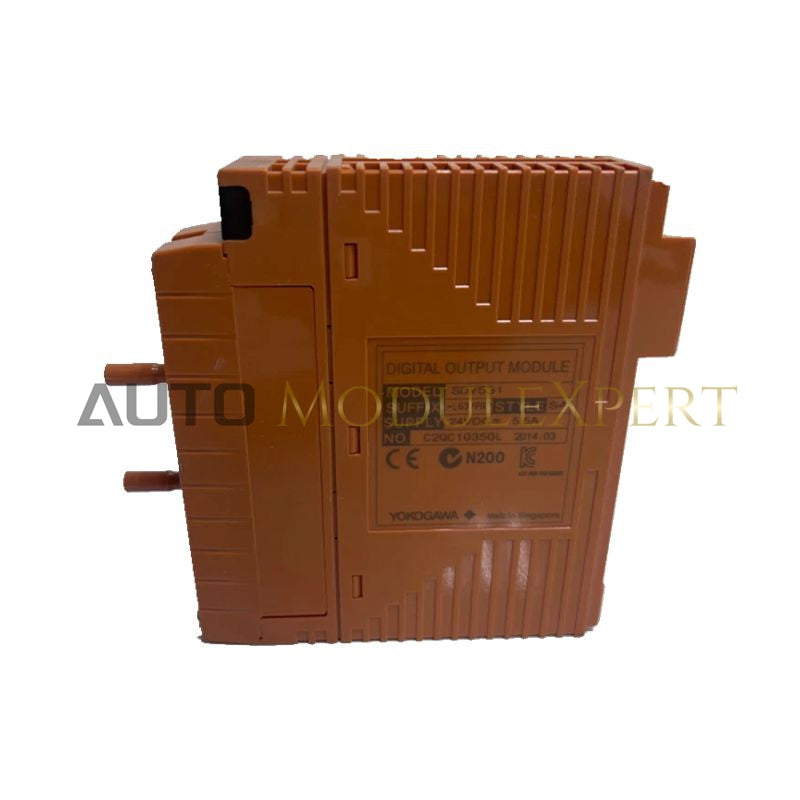

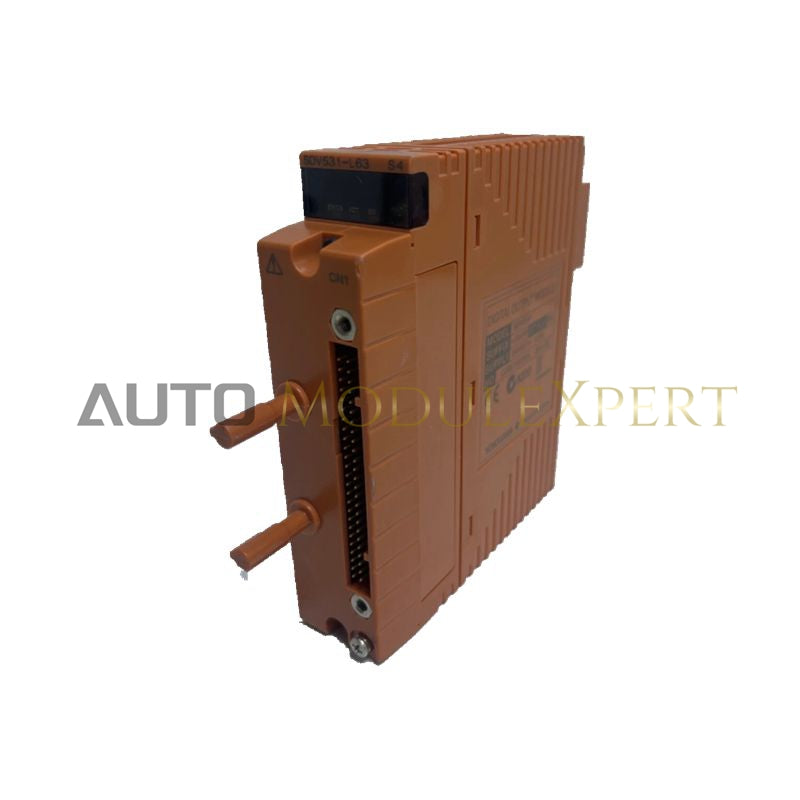

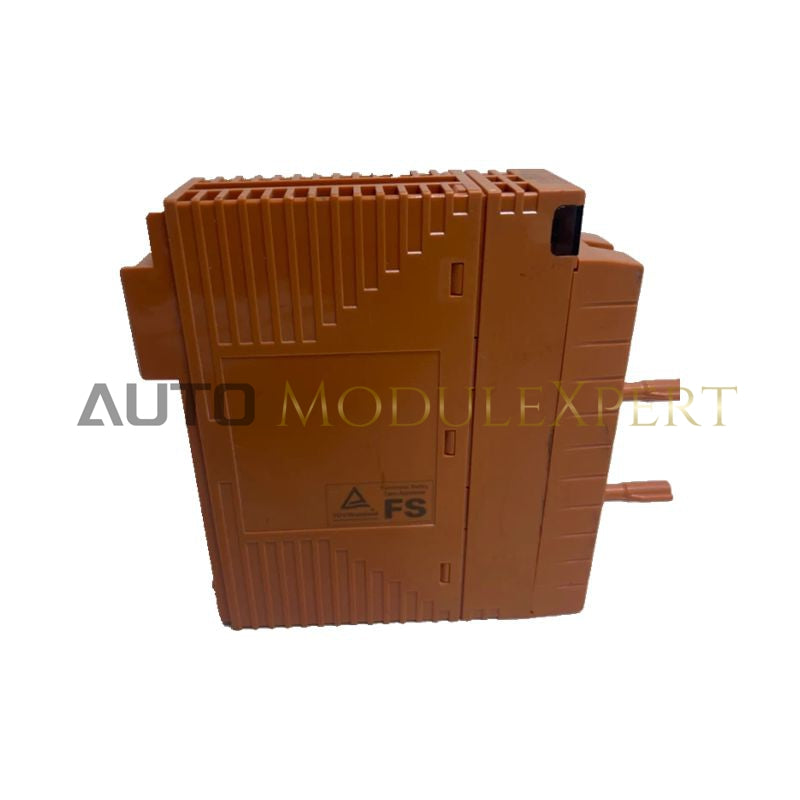

The SDV531-S53 (SDV531) is a high-integrity 8-channel safety digital output module engineered for Yokogawa ProSafe-RS Safety Instrumented Systems (SIS). It is designed to drive critical safety actuators, such as Emergency Shutdown (ESD) valves, solenoids, and interposing relays, while providing continuous self-diagnostics to meet SIL 3 safety loop requirements.
The S53 configuration is ruggedized for harsh industrial environments. It features ISA Standard G3 corrosive gas resistance and a wide operating temperature range of -20 to +70°C, making it ideal for offshore platforms, desert facilities, or remote instrument enclosures (RIEs).
Technical Specifications
| Feature | Specification |
|---|---|
| Module Type | Safety Digital Output (Current Source) |
| Channels | 8, fully isolated |
| Rated Output Voltage | 24 V DC |
| External Power Supply | 24 V DC (±20% / -10%), minimum 5 A capacity |
| Maximum Load Current | 0.6 A per channel (4.8 A total) |
| Minimum Load Current | 35 mA (required for loop monitoring) |
| Load Resistance | 40–685 Ω |
| Maximum Leakage (OFF) | 1.6 mA |
| Response Time | ≤ 30 ms (Output transition) |
| Environmental Rating | ISA Standard G3 Corrosive Resistance |
| Thermal Range | -20 to +70°C |
| Dielectric Strength | 2 kV AC between output signals and system logic |
| Power Consumption | 280 mA (5 V DC); 140 mA (24 V DC) |
| Weight | 0.34 kg |
Application Scenarios
The SDV531-S53 is widely deployed in process safety applications such as Fire & Gas (F&G) systems, Burner Management Systems (BMS), and other critical industrial safety loops. Its current source output ensures reliable powering of field devices, while its G3 corrosion protection and wide temperature tolerance allow operation in extreme environments without the need for additional cabinet heating or cooling.
Technical FAQ
Why is there a minimum load current requirement?
Safety modules like the SDV531 perform line monitoring to detect open or short circuits in field wiring. A minimum load of 35 mA ensures the module can reliably verify loop integrity.
Which terminal blocks are compatible with the '5' suffix?
The '5' suffix indicates compatibility with pressure clamp terminal blocks (STB4S-10) or MIL-connector cables (AKB331) for secure, high-density connection to safety terminal boards.
