Product Description

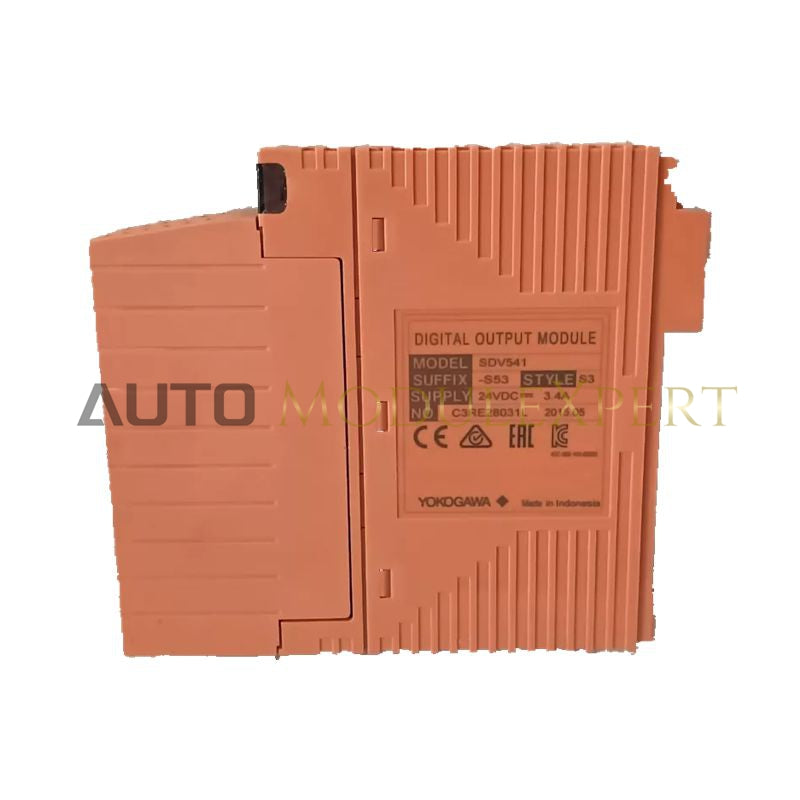

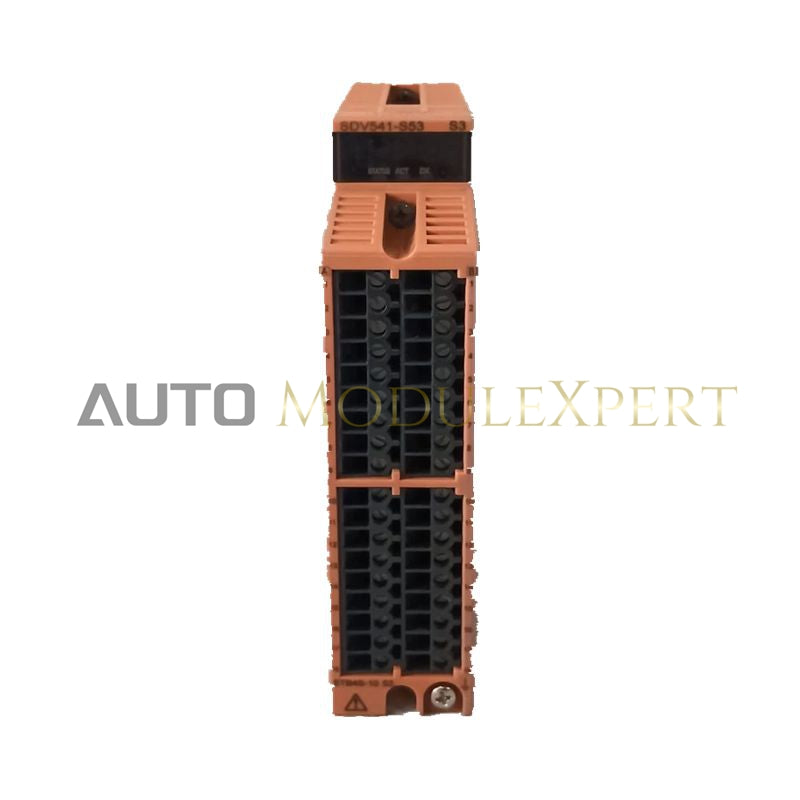

The SDV541-S53/STB4D-00 is a 16-channel safety digital output module developed for the Yokogawa ProSafe-RS Safety Instrumented System (SIS). It delivers high-integrity 24 V DC outputs for driving safety-critical final elements such as solenoid valves, actuators, and alarm indicators.
Certified for SIL3 applications, the module integrates advanced internal diagnostics and a non-intrusive pulse-test mechanism that continuously verifies the switching capability of each output channel without causing unintended actuation of connected field devices.
To ensure reliable operation in harsh industrial environments, the SDV541-S53/STB4D-00 features robust galvanic isolation, along with protection against back-EMF, short circuits, and wiring faults. Its high-density 16-channel design optimizes I/O rack utilization while fully complying with the stringent fault-detection requirements of Emergency Shutdown (ESD) and Fire & Gas (F&G) systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Channels | 16 channels, isolated |
| Rated Output Voltage | 24 V DC |
| Load Current | Max. 0.6 A per channel |
| Total Module Load | Max. 8 A aggregate |
| Safety Rating | SIL3 (IEC 61508 certified) |
| Fault Detection | Short circuit, open loop, output switching failure |
| Internal Power Consumption | 450 mA @ 5 V DC / 150 mA @ 24 V DC |
| Response Time | ≤ 40 ms (On ↔ Off) |
| Dimensions (W × H × D) | 32 × 127 × 127 mm |
| Net Weight | 0.4 kg |
Industrial Applications
The SDV541-S53/STB4D-00 is widely deployed in high-risk process industries, including:
-
Petrochemical and chemical plants
-
LNG terminals
-
Offshore oil & gas platforms
It serves as a reliable output interface for initiating safety actions, ensuring that final control elements respond precisely and predictably during trip or hazard mitigation events.
Pulse Test Operation
The module performs periodic pulse testing by momentarily interrupting the output for a sub-millisecond duration. This brief interruption allows the safety logic to confirm output switch integrity while remaining transparent to connected solenoids or actuators, whose mechanical inertia prevents any unintended movement.
