Product Description

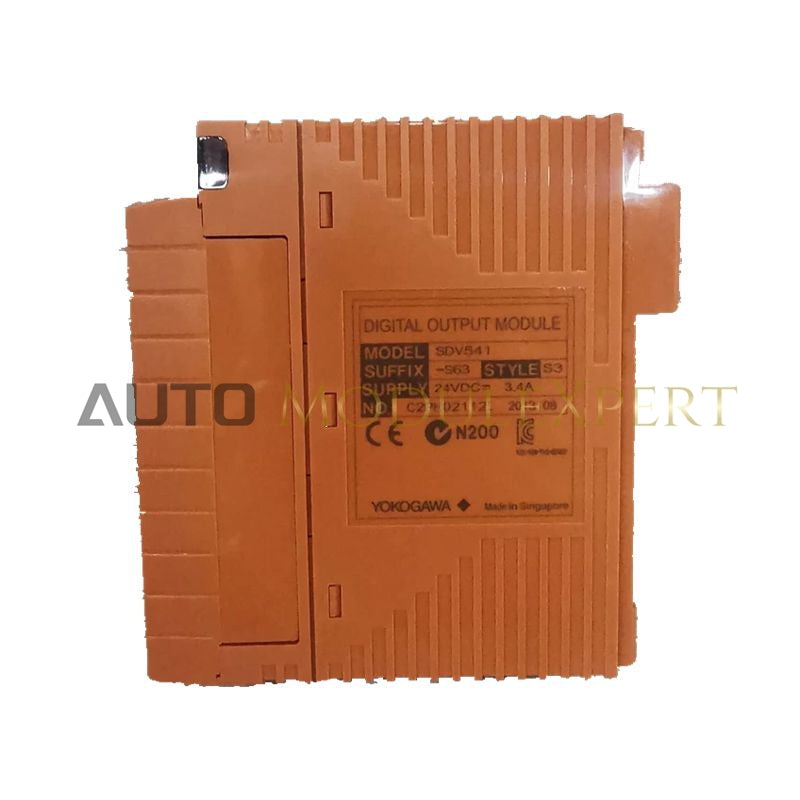

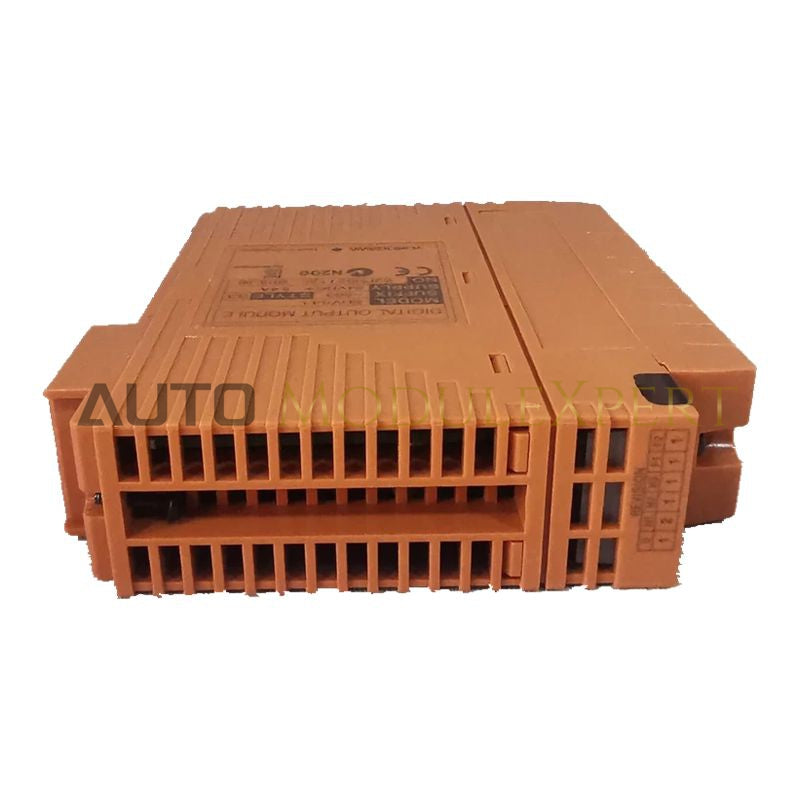

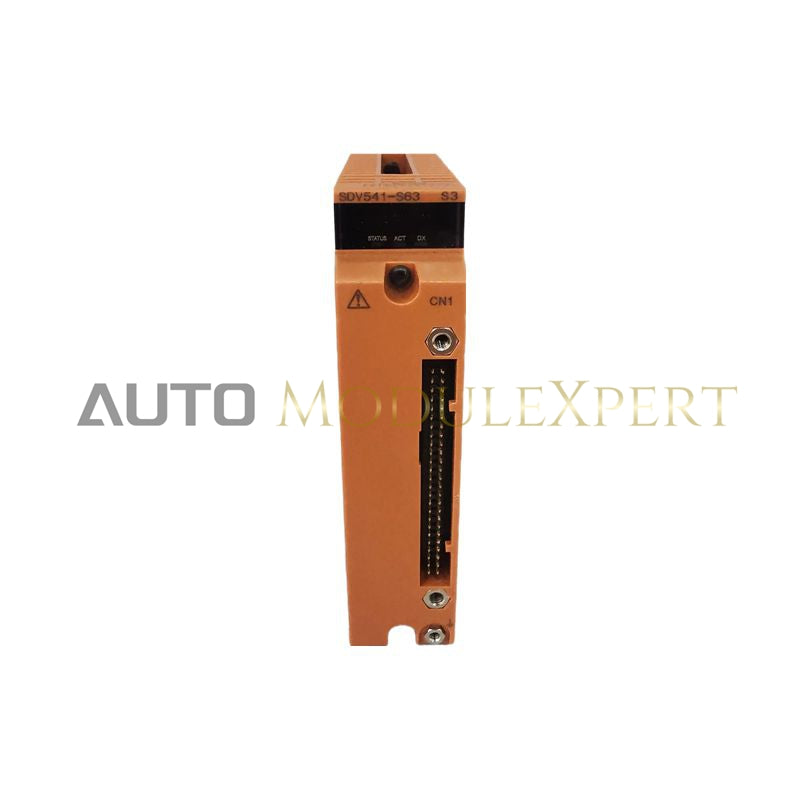

The Yokogawa SDV541-S63 is a high-performance safety digital output module engineered for the ProSafe-RS Safety Instrumented System. It provides 16 isolated safety output channels for driving solenoids, relays, and status indicators in critical shutdown and protection loops.
As part of the S3 suffix series, the SDV541-S63 is certified for SIL3 applications and incorporates advanced internal diagnostics to continuously monitor output circuit health and field wiring integrity, detecting faults such as short circuits and open lines.
Designed for high-availability safety systems, the module supports dual-redundant configurations, allowing continuous operation during maintenance activities. A built-in pulse-test function verifies the switching capability of each output channel without disturbing the connected load, making the SDV541-S63 a key component in Emergency Shutdown (ESD) logic execution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Output Channels | 16 channels, isolated |
| Output Voltage | 24 V DC (external supply required) |
| Maximum Load Current | 0.6 A per channel |
| Total Module Load | Max. 8 A |
| Safety Certification | SIL3 (IEC 61508) |
| Response Time | ≤ 40 ms (On ↔ Off) |
| Power Consumption | 450 mA @ 5 V DC / 150 mA @ 24 V DC |
| Dimensions (W × H × D) | 32 × 127 × 127 mm |
| Unit Weight | 0.4 kg |
Application Environments
The SDV541-S63 is commonly deployed in hazardous-area control systems across:
-
Oil & gas production and processing
-
Chemical and petrochemical plants
-
Large-scale power generation facilities
It serves as the final control interface for actuating safety-critical devices such as solenoid valves during shutdown or trip events.
Hot-Swap Capability
Yes. When installed in a redundant ProSafe-RS configuration, the SDV541-S63 supports online replacement (hot swapping) without interrupting system safety functions, provided the system is correctly configured for high availability.
