Description

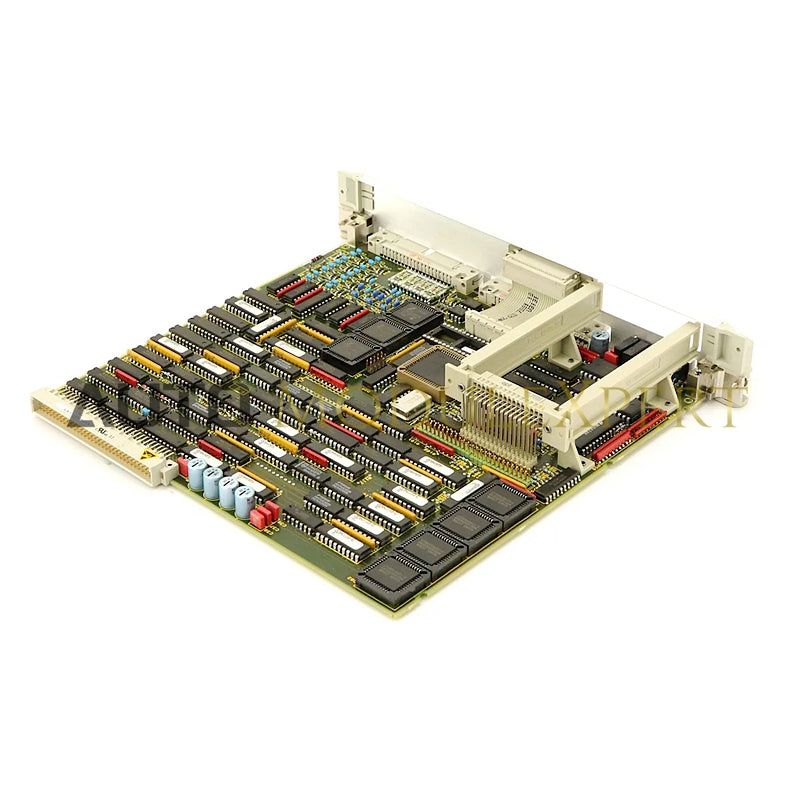

Siemens 6DD1602-0AE0 is a SIMADYN D Processor Module designed for industrial automation applications, offering reliable performance with robust environmental and electrical specifications.
Environmental Specifications
-
Insulation Group: A to VDE 0110 paragraph 13, group 2 at 24, 15, and 5 VDC
-
Ambient Temperature: 0 to 55°C
-
Storage Temperature: -40 to +70°C
-
Humidity Class: F to DIN 40040
-
Altitude Rating: S to DIN 40040
-
Mechanical Stress: Suitable for installation in fixed vibration-resistant devices
-
Packaging System: ES 902 C
Physical Dimensions
-
Module Dimensions: 233.4 × 220 mm
-
Board Width: 40.28 mm (2 Slots)
-
Weight: 0.6 kg
Electrical Specifications
-
Current Consumption:
-
+5 VDC: 2.8 A
-
+15 VDC: 50 mA
-
-15 VDC: 50 mA
-
VCRAM: 0.5 mA
-
Binary Inputs
-
Number of Inputs: 8 (not voltage isolated)
-
Input Voltage:
-
For "0" Signal: -1 V to +6 V (or binary inputs open)
-
For "1" Signal: +13 V to +33 V
-
-
Input Current at "1" Signal: Typ. 3 mA
-
Delay Time: <200 µs
