Product Description

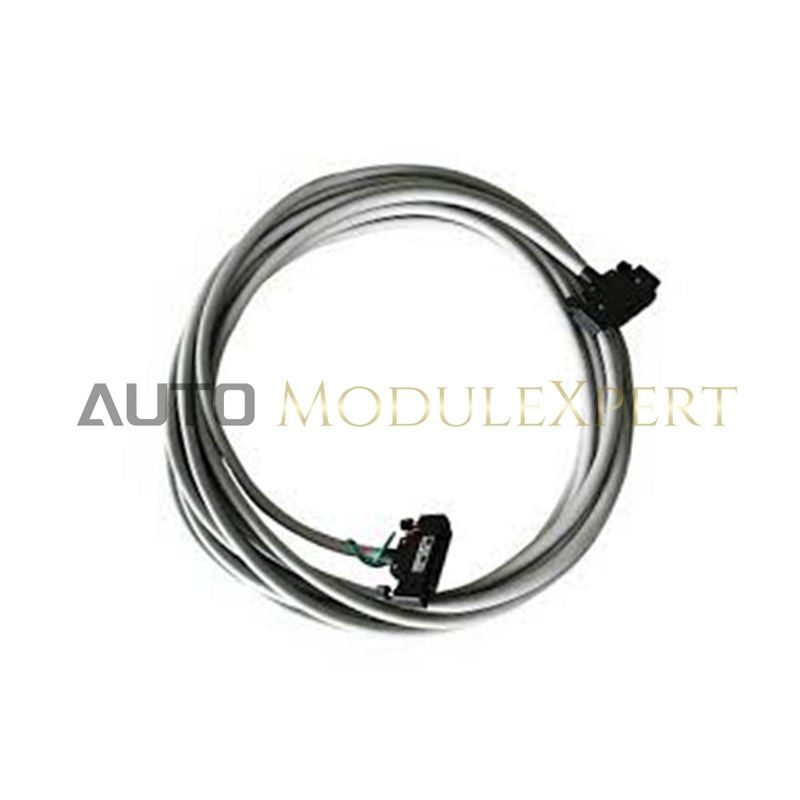

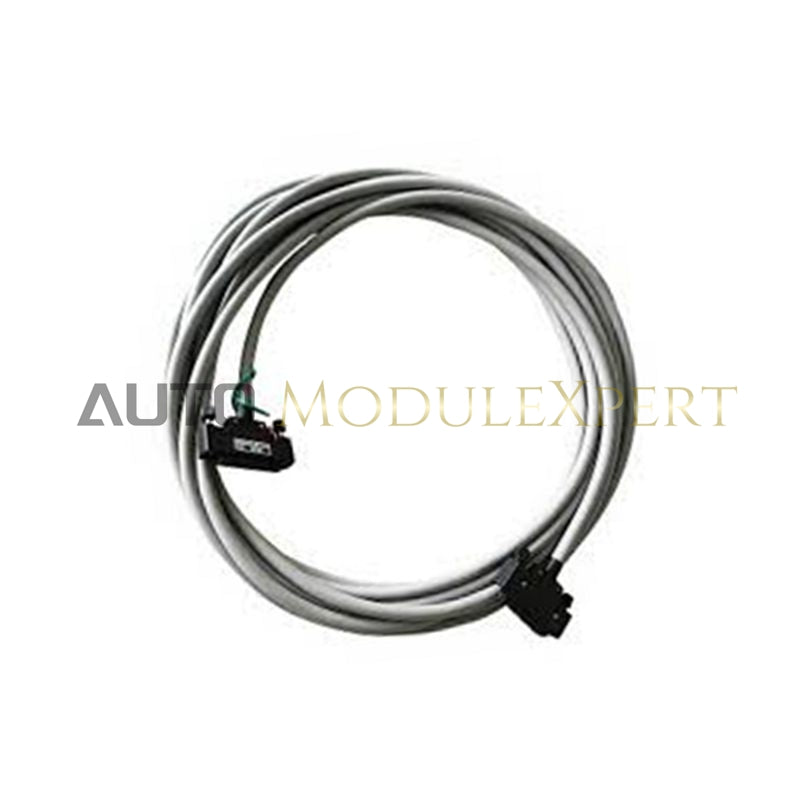

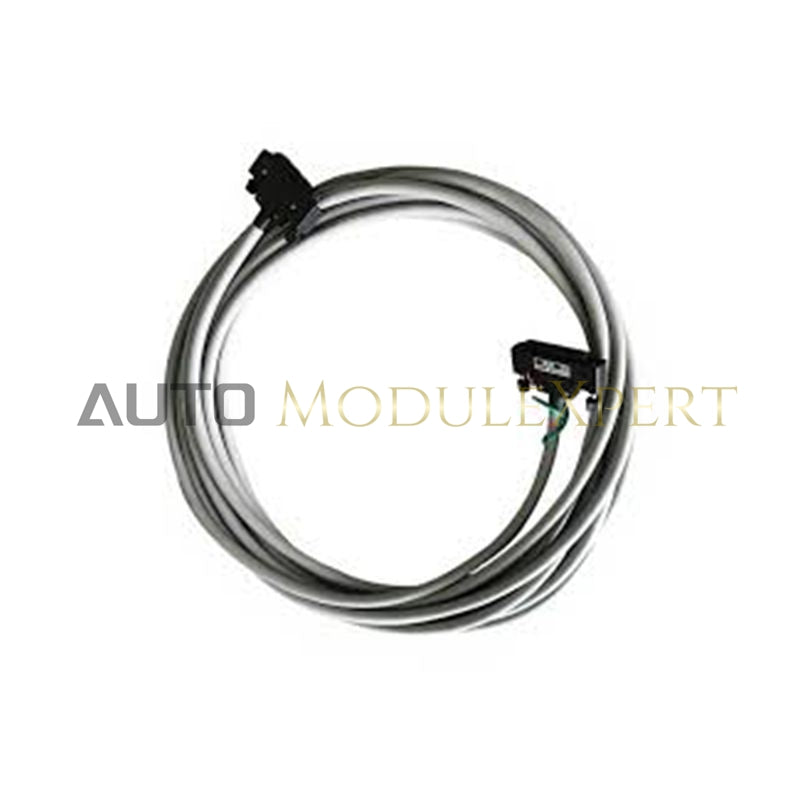

The Yokogawa KS10-15*A is a heavy-duty, multi-core interface cable engineered for high-integrity signal transmission within Yokogawa control system environments. Primarily used to link I/O modules to terminal boards or signal conditioning nests, this 15-meter cable supports multiple signal types—including 4-20 mA, voltage, thermocouples (TC), and RTDs—while maintaining robust isolation and EMI shielding. Its factory-molded connectors and industrial-grade jacketing make it ideal for long-distance routing in harsh industrial environments, ensuring reliable data integrity between field junctions and control cabinets.
Technical Specifications
| Item | Specification |
|---|---|
| Ordering Code | KS10-15*A |
| Cable Length | 15 Meters (49.2 feet) |
| Core Configuration | Multi-core (typically 16-channel analog or digital signals) |
| Signal Compatibility | 4-20 mA, Voltage, Thermocouple (TC), RTD |
| Protection Rating | Industrial-grade jacketing, suitable for IP66 / NEMA 4X enclosures |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Termination | High-density multi-pin connectors for secure plug-and-play installation |
| Shielding | Multi-layered electromagnetic interference (EMI) protection |
| Weight | 1.5 kg |
| Connector Dimensions | Standardized interface compatible with Yokogawa terminal boards |
Application Scenarios
The KS10-15*A is widely used in large-scale industrial projects, including:
-
Offshore oil and gas platforms
-
Pharmaceutical manufacturing facilities
-
Chemical processing plants
It is designed to connect remote field-mounted junction boxes or terminal boards to main control system racks in separate equipment rooms. Its robust shielding and 15-meter reach ensure signal stability even in electrically noisy environments or through industrial cable trays exposed to harsh conditions.
FAQ
Q: Is the KS10-15*A a control system or a cable?
It is a multi-core interface cable. References to “field-mounted systems” indicate the environments the cable is designed to connect, not that the cable itself is a functional control module.
Q: What does the "A" suffix indicate?
The "A" typically denotes a specific hardware revision or connector style. Ensure the suffix matches your terminal board (e.g., A1BA4D) to guarantee proper pin alignment and compatibility.
